6.3.5.37 The "Statistics Packet Size" WBM menu
Packet Size Statistics - received packets sorted according to length
The Packet Size Statistics page displays how many packets of which size were received at
each port.
If you click the Reset Counters button, you reset the counters for all ports.
If you click on an entry in the Port column, the Packet Size Statistics graphic is displayed for
the selected port. You then see a graphical representation of the counter value.

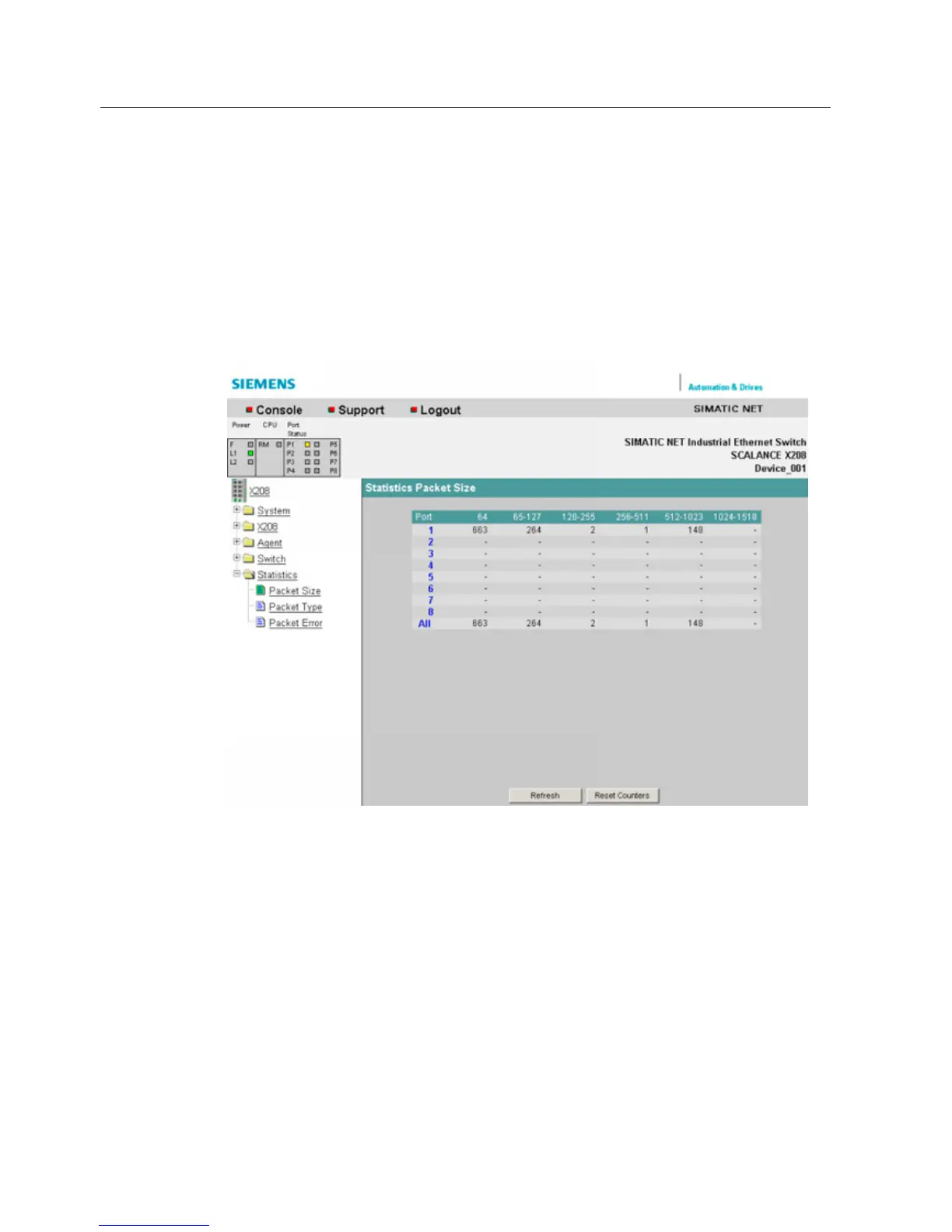

Figure 6-40 "Statistics Packet Size" dialog
64
Displays the number of packets with a length of 64 bytes.
65-127
Displays the number of packets with a length of 65-127 bytes.
128-255
Displays the number of packets with a length of 128-255 bytes.
256-511
Displays the number of packets with a length of 256-511 bytes.
512-1023
Displays the number of packets with a length of 512-1023 bytes.
