6.3 Configuration using Web Based Management (WBM) and Command Line Interface (CLI)
SCALANCE X-200
234 Operating Instructions, 12/2011, A5E00349864-19
6.3.5.38 The "Statistics Packet Type" WBM menu
Packet Type Statistics - received packets sorted according to type
The Statistics Packet Type page displays how many frames of the type unicast, multicast,
and broadcast were received at each port.
If you click the Reset Counters button, you reset the counters for all ports.
If you click on an entry in the Port column, the Statistics Packet Type Graphic is displayed for
the selected port. You then see a graphical representation of the counter value.

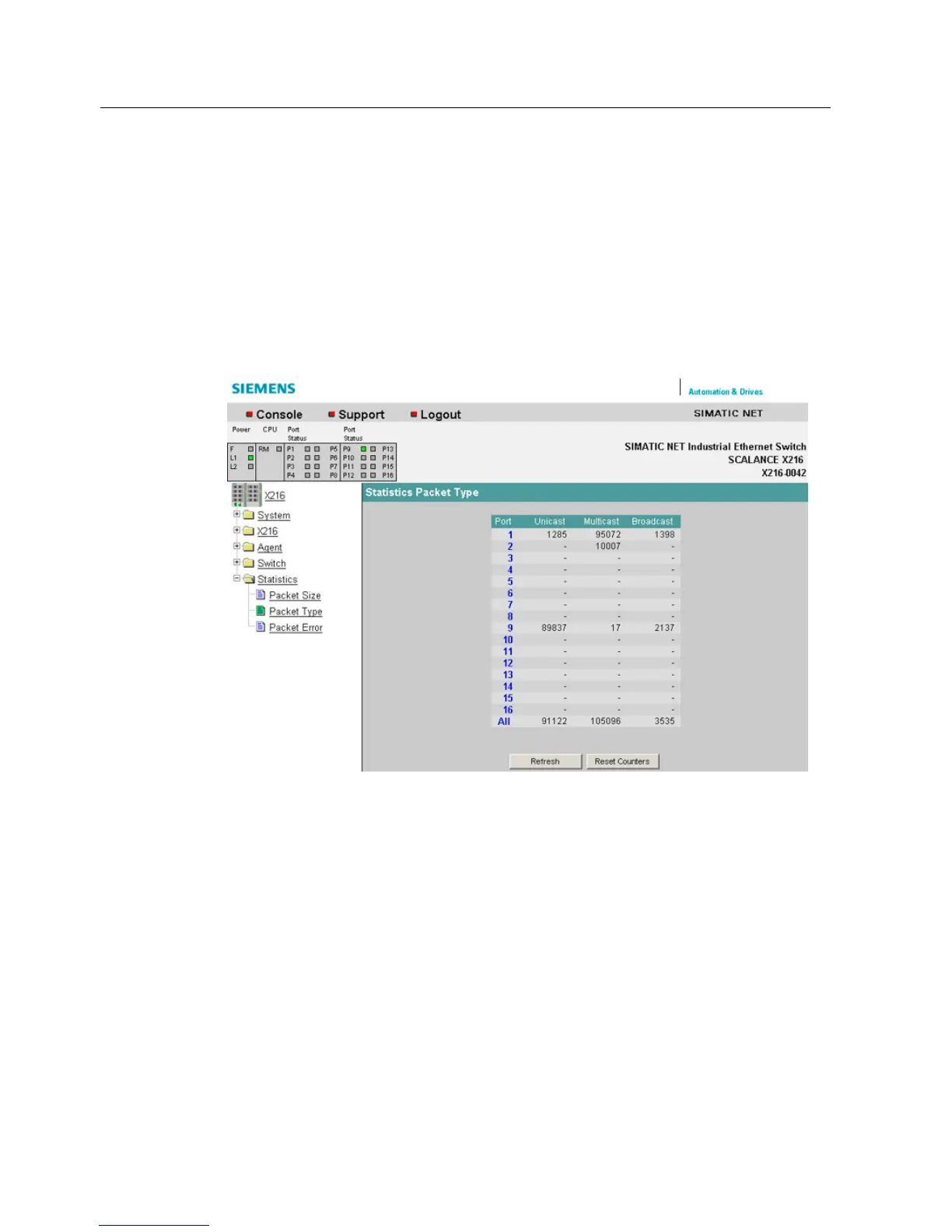

Figure 6-42 "Statistics Packet Type" dialog
Unicast
Displays the number of packets to the unicast recipient address.
Multicast
Displays the number of packets to the multicast recipient address.
Broadcast
Displays the number of packets to the broadcast recipient address.
