6.3.5.28 The "Switch Ports" WBM menu
Switch Ports
This dialog informs you about the current status of the ports. You can also make various port
settings.

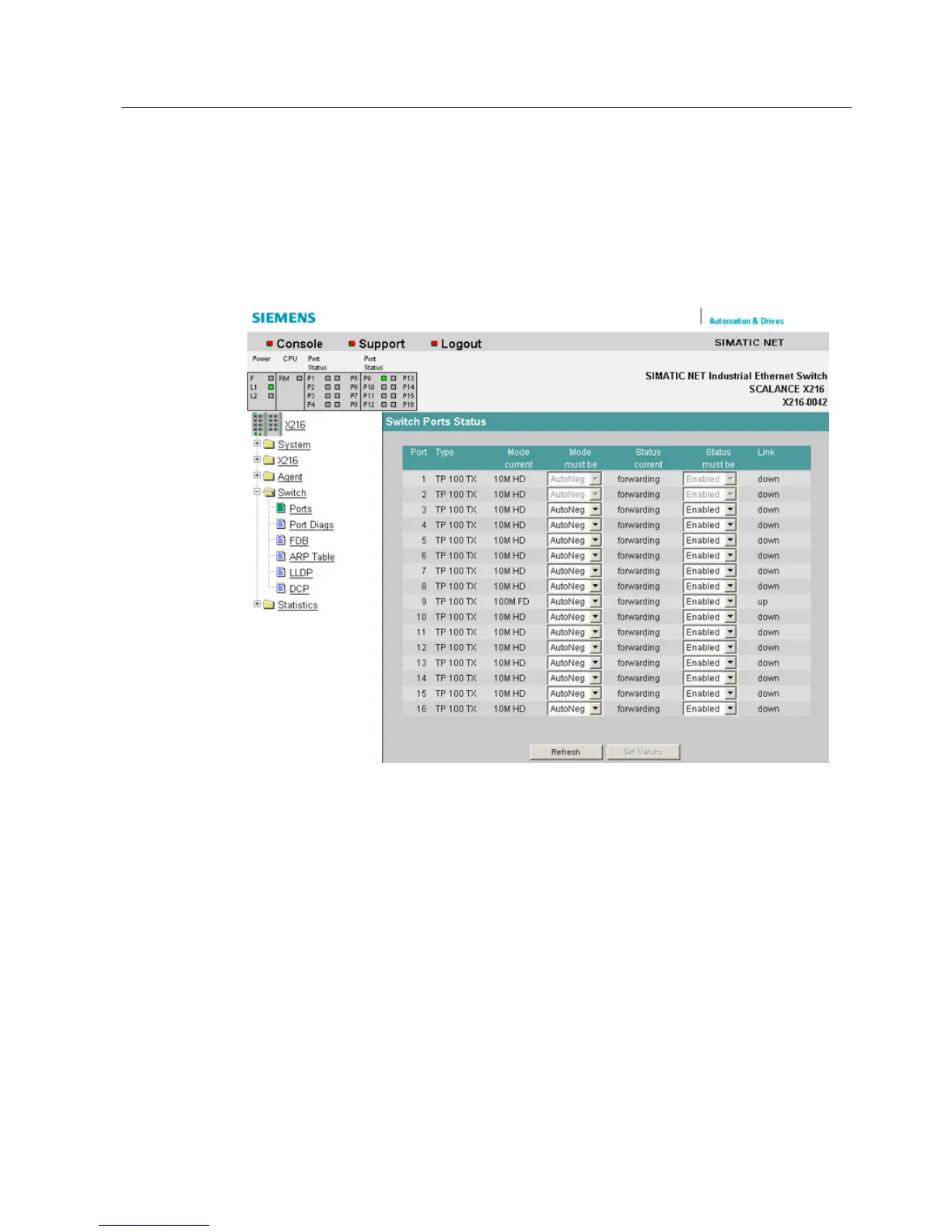

Figure 6-33 "Switch Ports" screen
Port
Shows the port number.
Type
Displays the type of port.
The following port types are available with the IE Switch X-200 modules:
TP 10 TX
TP 100 TX
FO 100 FX
Mode
Shows transmission rate (10 or 100 Mbps) and the transmission mode (full duplex (FD) or
half duplex (HD)).
