Installing and connecting the device
3.1 Preparing for installation
SIMATIC IOT2050
22 Operating Instructions, 03/2024, A5E39456816-AF
3.1.4 Permitted mounting positions and mounting types
The device can be mounted horizontally or vertically on a DIN rail or to a wall.

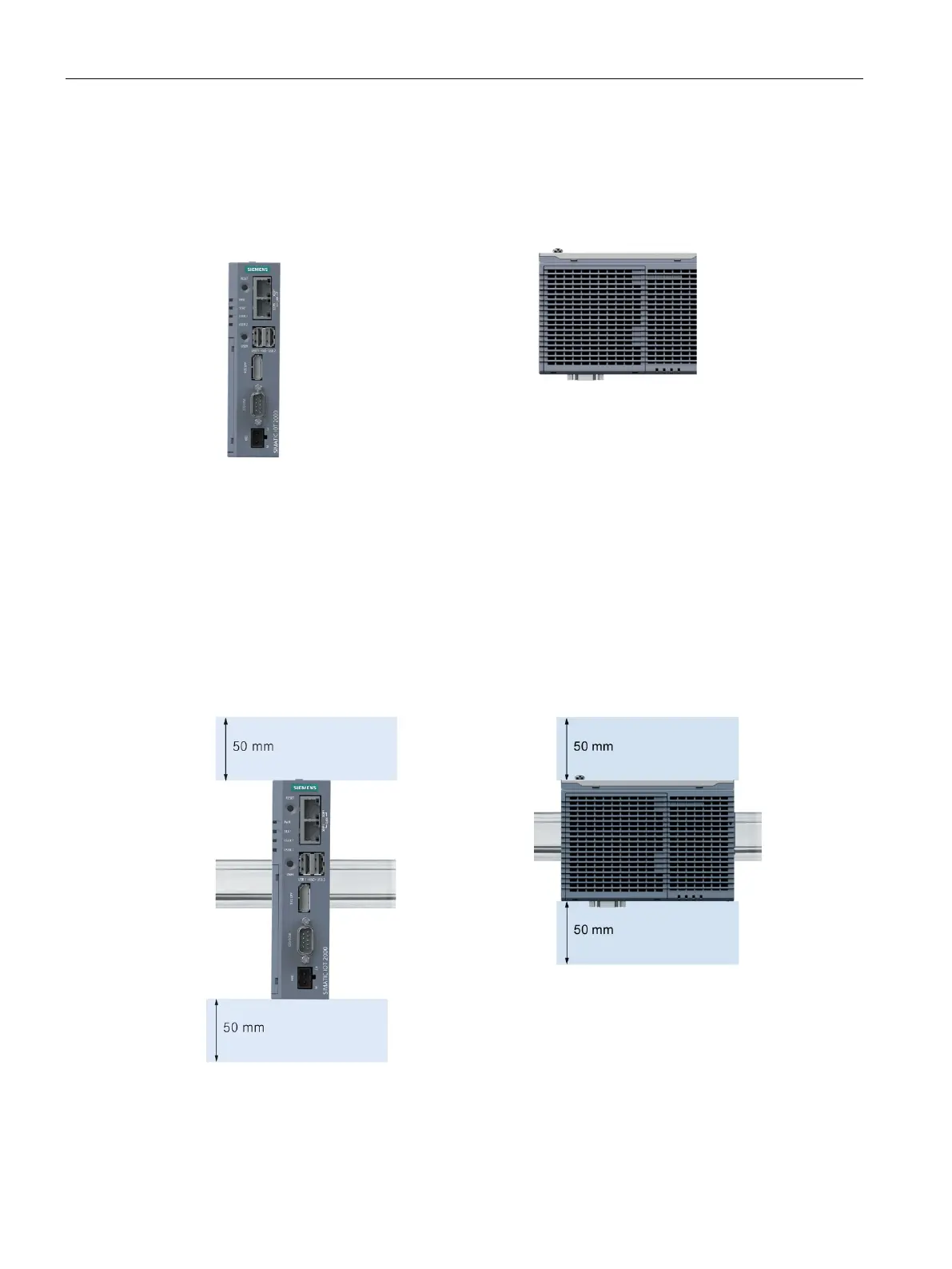

Vertical mounting position, preferred
Horizontal mounting position
Consider the permitted temperature range for operation that depends on the mounting
position in accordance with the "Technical specifications (Page 96)" section.
Clearances
Ensure that the following clearances measurements to another component or to a wall of a
housing are complied with:
• Below the device: ≥ 50 mm
• Above the device: ≥ 50 mm
