Installing and connecting the device
3.2 Mounting the device
SIMATIC IOT2050
Operating Instructions, 03/2024, A5E39456816-AF
27
3.2.3 Wall mounting
3.2.3.1 Vertical wall mounting
The device is suitable for horizontal or vertical wall mounting.
The device must be installed on the plate of an enclosure.
Requirement
• Two mounting brackets
• Two screws
• T8 screwdriver
Procedure for mounting

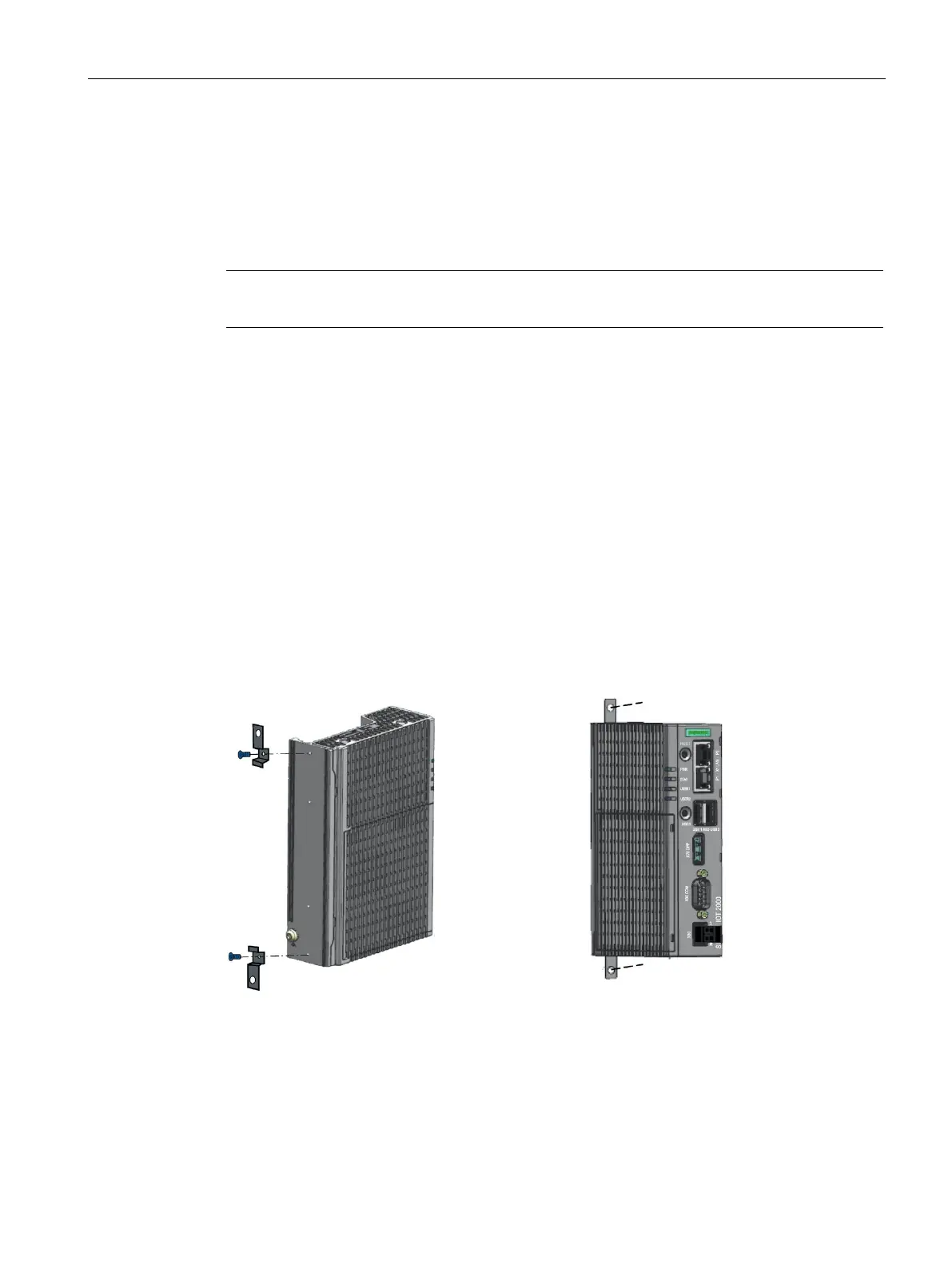

Lay the mounting brackets on the rear of the device.
Fasten the brackets with supplied screws.
Mark the bore holes, drill the required holes in the wall and fasten the device to the wall
using two screws.
