Maintaining and repairing the device
6.4 Recycling and disposal
SIMATIC IOT2050
70 Operating Instructions, 03/2024, A5E39456816-AF
Procedure

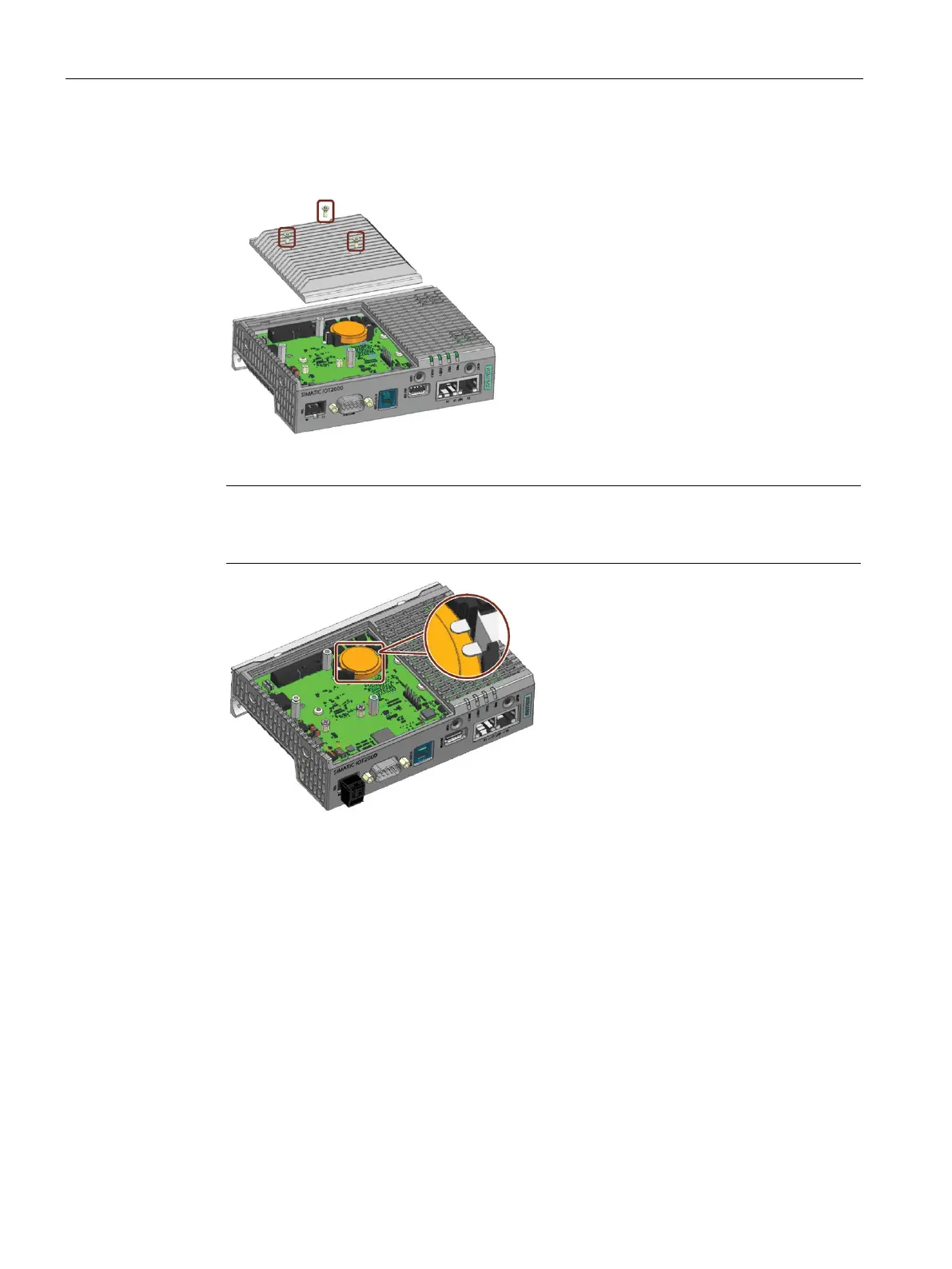

1. Remove the marked three screws on shield cover and remove the shield cover.
2. Replace the battery.
The printed side should be facing up after the battery is installed.
The marked shrapnel should stay up after the battery is installed.
3. Put the shield cover back.
6.4 Recycling and disposal
Due to the low levels of pollutants in the devices described in these operating instructions,
they can be recycled.
Contact a certified disposal service company for electronic scrap for environmentally sound
recycling and disposal of your old devices, and dispose of the device according to the relevant
regulations in your country.
