Operating elements and indicators
5.2 MP 270B Keys and OP 270
TP 270, OP 270, MP 270B (WinCC flexible)
Operating Instructions, Edition 03/2004, 6AV6691-1DD01-0AB0
5-11
OP 270 6"
R0.5
00
8.00
2.60
2.75
8.25
20.73
26.23
38.71
44.21
56.69
62.19
163.70 mm
16.00 mm
118.95
124.45
104.95
99.45
LED-Fenster. transparent
27.75
22.25
8.25
2.60
8.00
67.00 mm
16.00 mm
LED window,
transparent

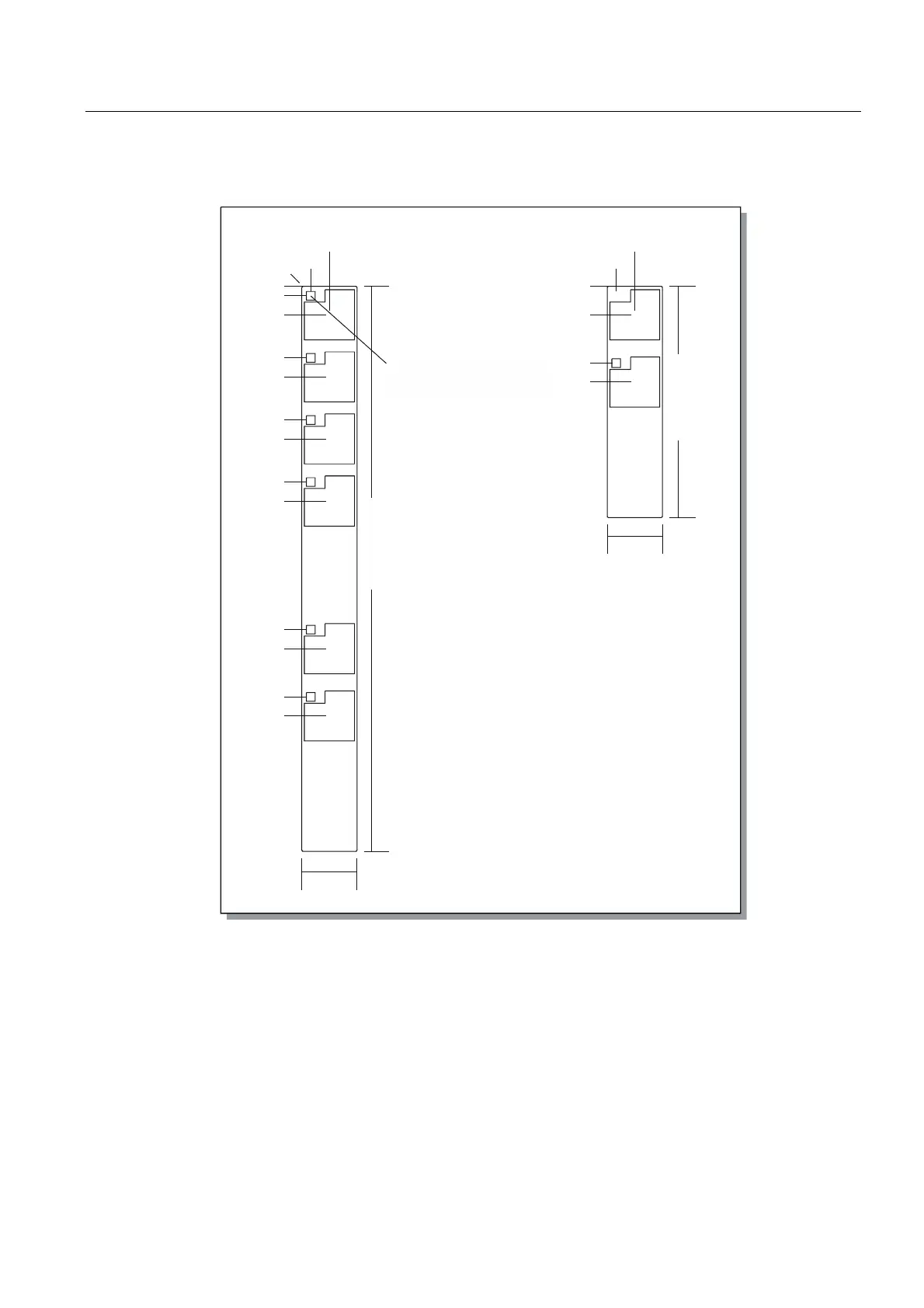

Figure 5-7 Labeling strip dimensions for the OP 270 6"
Printing the labeling strips
The templates for the labeling strips are in the "Slide270.doc" and "Slide270_6.doc" files on
the "WinCC flexible" installation CD in the "\Support\Documents" folder. The files can be
edited using the MS Office programs, MS Word or WordPad.
Note the information provided in these files.
