Operating system and configuration
6.2 Windows CE Control Panel
TP 270, OP 270, MP 270B (WinCC flexible)
Operating Instructions, Edition 03/2004, 6AV6691-1DD01-0AB0
6-11
Displaying the HMI device data
1. Open the "Device" tab in the "OP Properties" dialog.
Various device data is displayed.

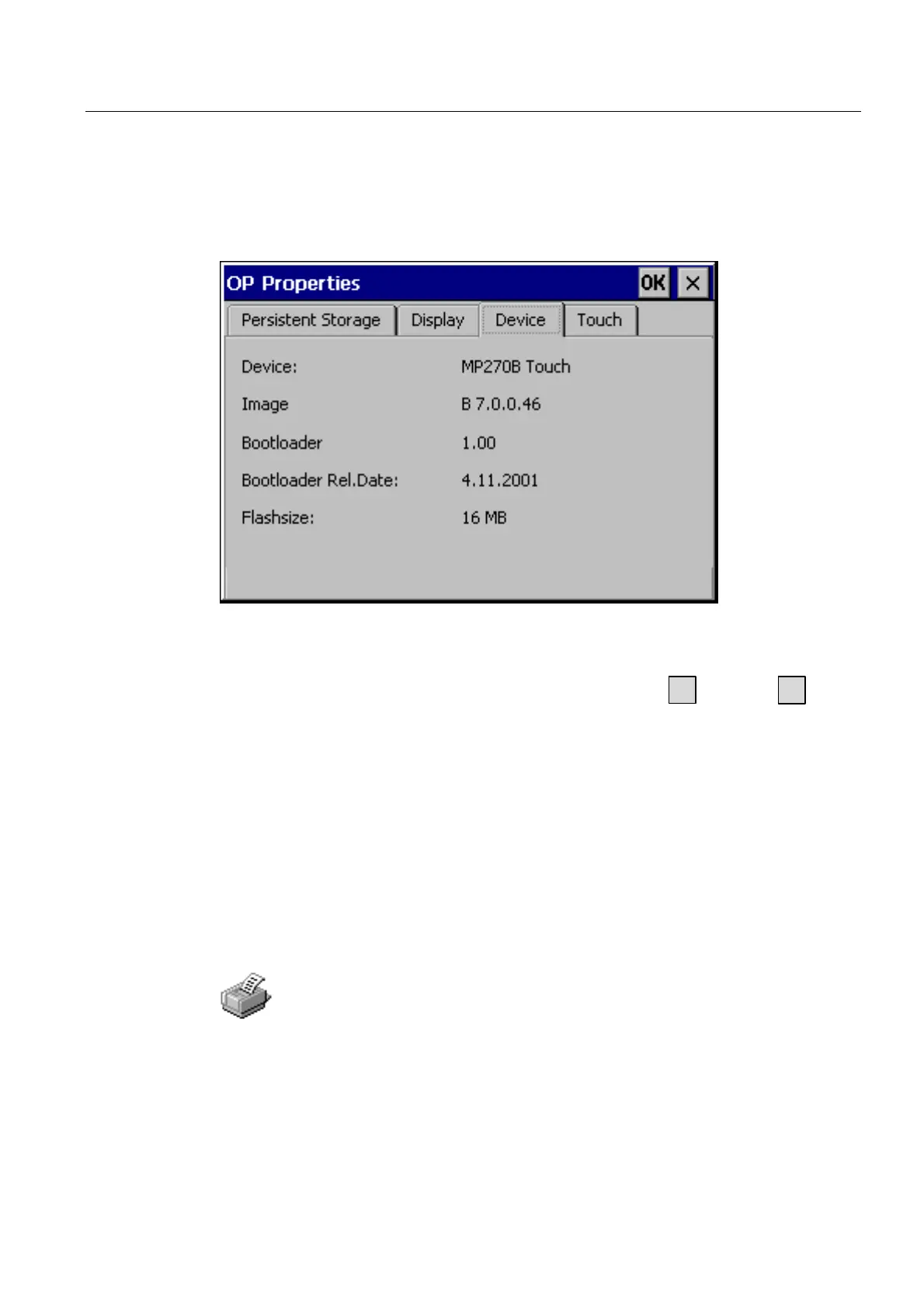

Figure 6-6 "OP Properties" dialog, "Device" tab
2. In the case of the touch panel, close the dialog using the "OK" button. In the case of the
keyboard unit, move the focus to the tab heading by pressing
TAB
and press
ENTER
to
close the dialog.
See also
Open Control Panel (Page 6-2)
6.2.7 Printer
"Printer" option
A printer can be selected and set up using the "Printer" option. Some settings, e.g. color or
quality of graphics printing, are only relevant for printing a hardcopy of the screen contents
and have no influence on the alarm logging.
