10.6 Water-cooled motor
10.6.1 Water-cooled motor, complete

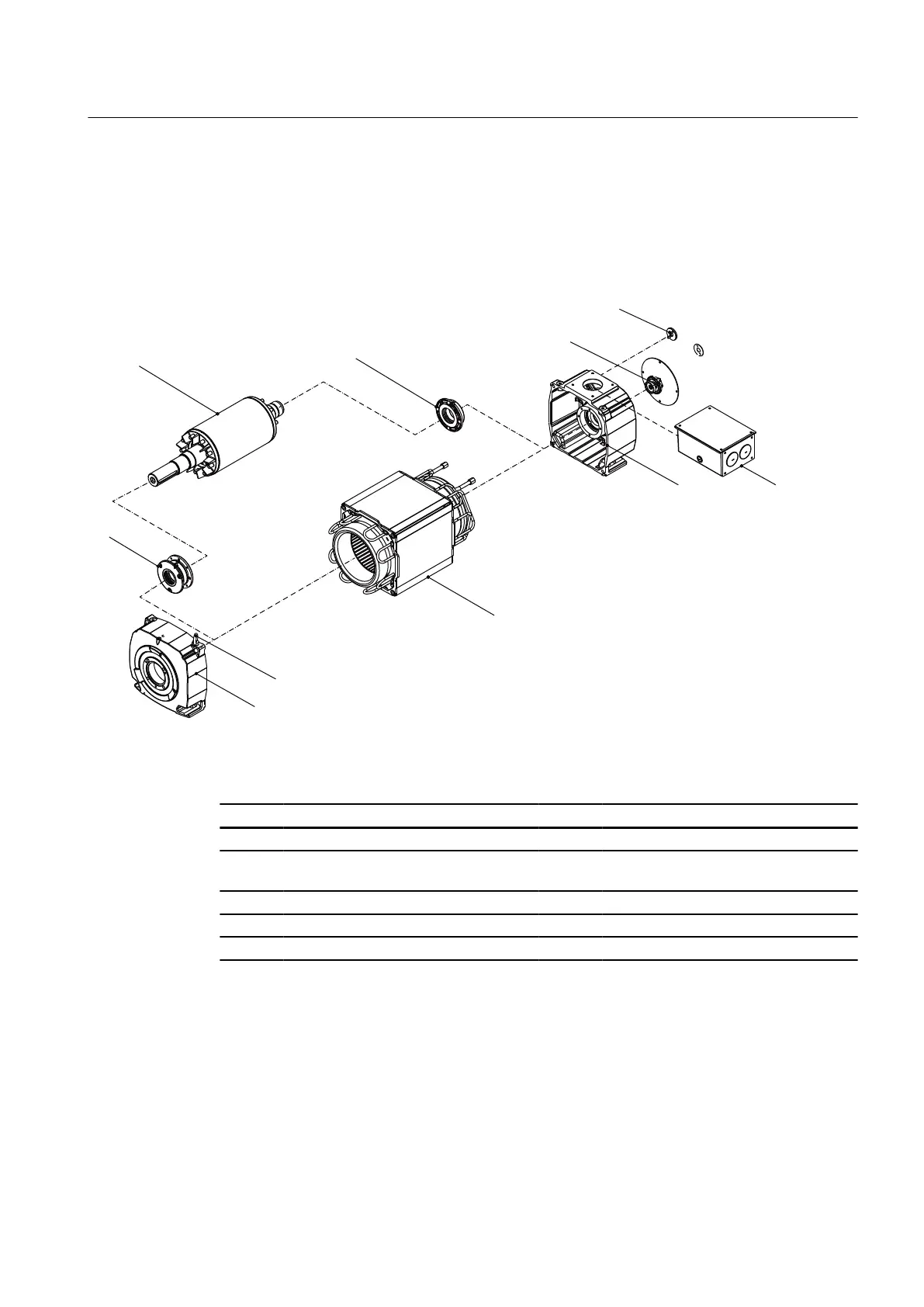

Figure 10-1 Schematic diagram of motor (complete)
Table 10-1 Motor, complete
Number Designation Number Designation
3.00 Spare parts kit, non-drive-end bearing 8.00* Rotor, complete
4.00 Spare parts kit, drive-end bearing 10.00* Stator housing (with laminated core,
winding and cooling water pipe system)
55.00 Spare parts kit, speed encoder 10.35* Hoisting lug
5.00* Bearing shield, drive end 20.00* Terminal box
6.00* Bearing shield, non-drive end 99.00* Special built-on parts
* On request
Spare parts
10.6 Water-cooled motor
SIMOTICS M-1PH8 1PH818., 1PH822.
Operating Instructions 07/2016 121
