Type Supply voltage Current consumption
1PH818. 1 AC 200 V … 277 V / 50 Hz, 60 Hz (± 10 %) 1.45 A ... 1.05 A
1PH822. 1 AC 200 V … 277 V / 50 Hz, 60 Hz (± 10 %) 2.3 A ... 1.6 A
6.4.3 Connecting the speed encoder
The speed encoder is connected at the terminal box using a plug connection ①. This is located
on the terminal box enclosure.


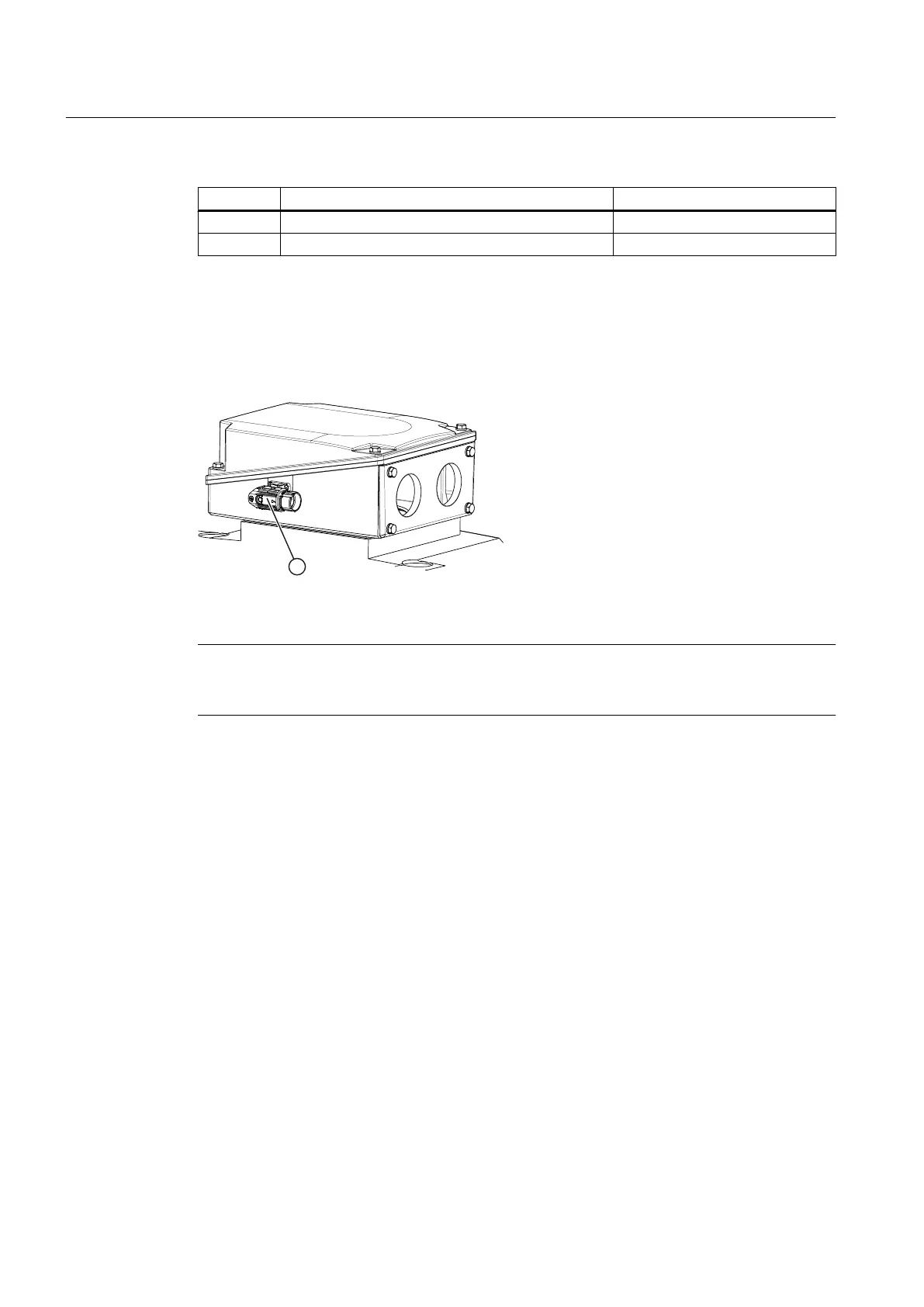

Figure 6-4 Detailed view: Plug-in connection
Note
The plug-in connection may differ from the standard layout in the case of special orders. For
versions without speed encoder, connection thread M16x1.5 is located here.
Connecting a speed encoder via DRIVE-CLiQ
The signal connection between the motor and the converter is established via the DRIVE‑CLiQ
cable MOTION‑CONNECT.
● Always use prefabricated cables from Siemens. These cables reduce the mounting/
installation time and costs and increase operational reliability.
● Push the connector of the DRIVE‑CLiQ cable into the socket until the catch spring latches
into place. Pay attention to the coding of the connector.
Electrical connection
6.4 Auxiliary circuits
SIMOTICS M-1PH8 1PH818., 1PH822.
78 Operating Instructions 07/2016
