5 Electrical installation
5.1 Safety precautions
Danger due to electric current
•
Work on electric components may only be carried out by trained electricians or by persons
instructed in electricity under the supervision of an electrician in accordance with electrical
engineering regulations.
•
The 5 electrical safety rules must be observed!
•
It is forbidden to carry out work on electrically live parts! Even after disconnection, the dc-link is still
live. Always wait at least 3 minutes.
•
Other measures may be necessary to achieve safe electrical isolation.
•
Connect fan only to electrical circuits that can be disconnected with an all-pole isolating switch.
•
Operating the device with the housing cover removed is prohibited because energized, exposed
parts are present inside the device. Disregarding this regulation can lead to severe personal injury.
•
The device owner is responsible for the EMC of the entire plant according to the locally applicable
standards.
•
Inspect electrical equipment periodically: retighten loose connections – immediately replace dam-
aged lines and cables.

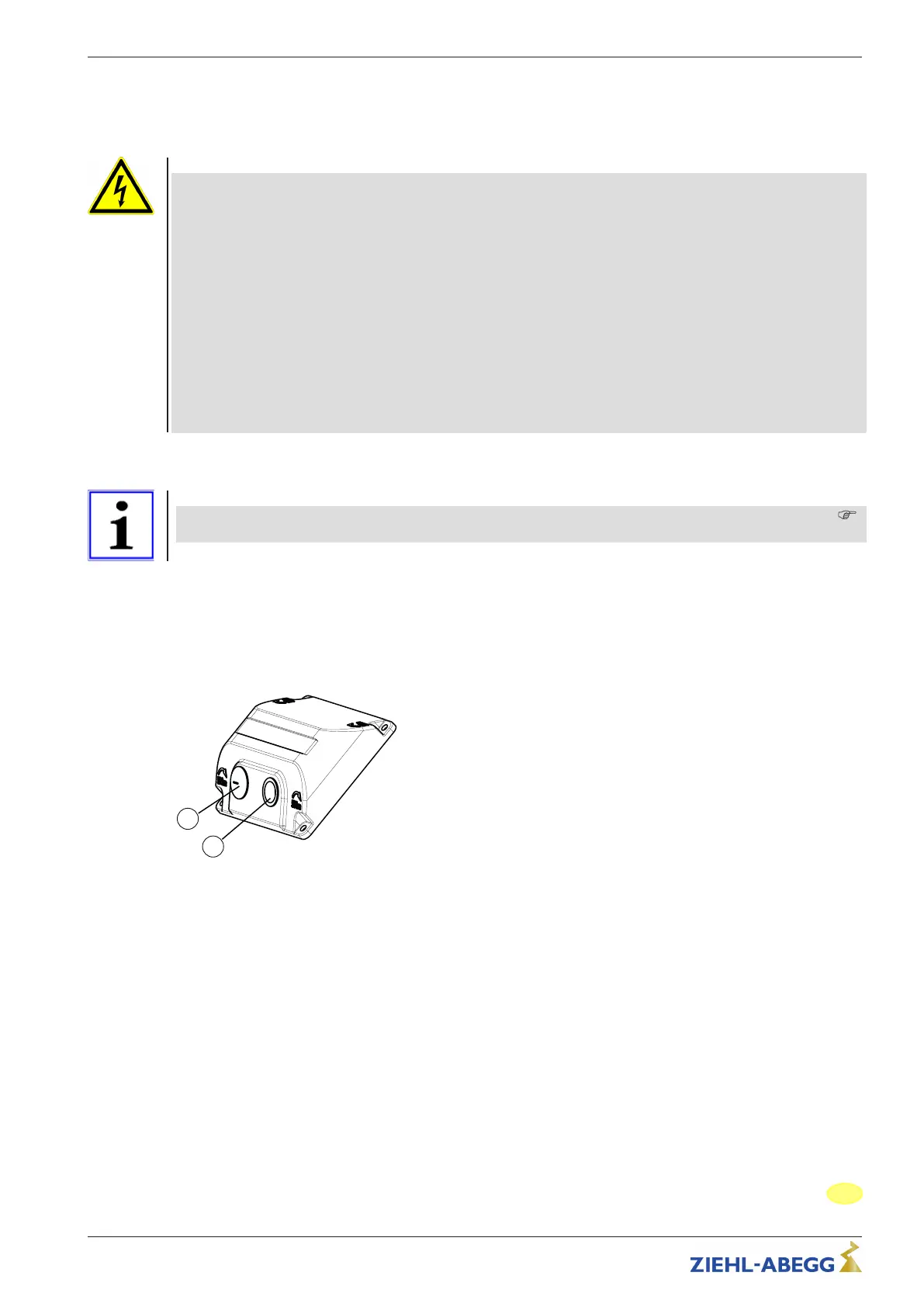

5.2 Connecting to the terminal box
Information
The respective connections are represented in the enclosure of this assembly instructions (
Connection diagram)!
Procedure:
" Remove the lid from the terminal box for connection.
" Both cable entry points are in a sealed condition at delivery.
– Inlet “1” is provided for the mains connection and therefore only sealed with a plug.
– Inlet “2” is provided for the optional connection of the control and is equipped with a stopper.
" Insert and connect cables properly and ensure tightness of the cable glands.
1 M20 cable inlet for mains connection
2 M20 cable inlet for control
" Unused entry points must be sealed!
" Move the terminal box lid carefully to the right position before commissioning (tightening torque of
the lid screws 5 Nm).
Assembly instructions ECblue Electrical installation
L-BAL-F065-GB 1617 Index 004 Part.-No. 00702801-GB
15/28
