① Driven machine ④ Insulated bearings
② Motor ⑤ Insulated tachometer fitting
③ Coupling

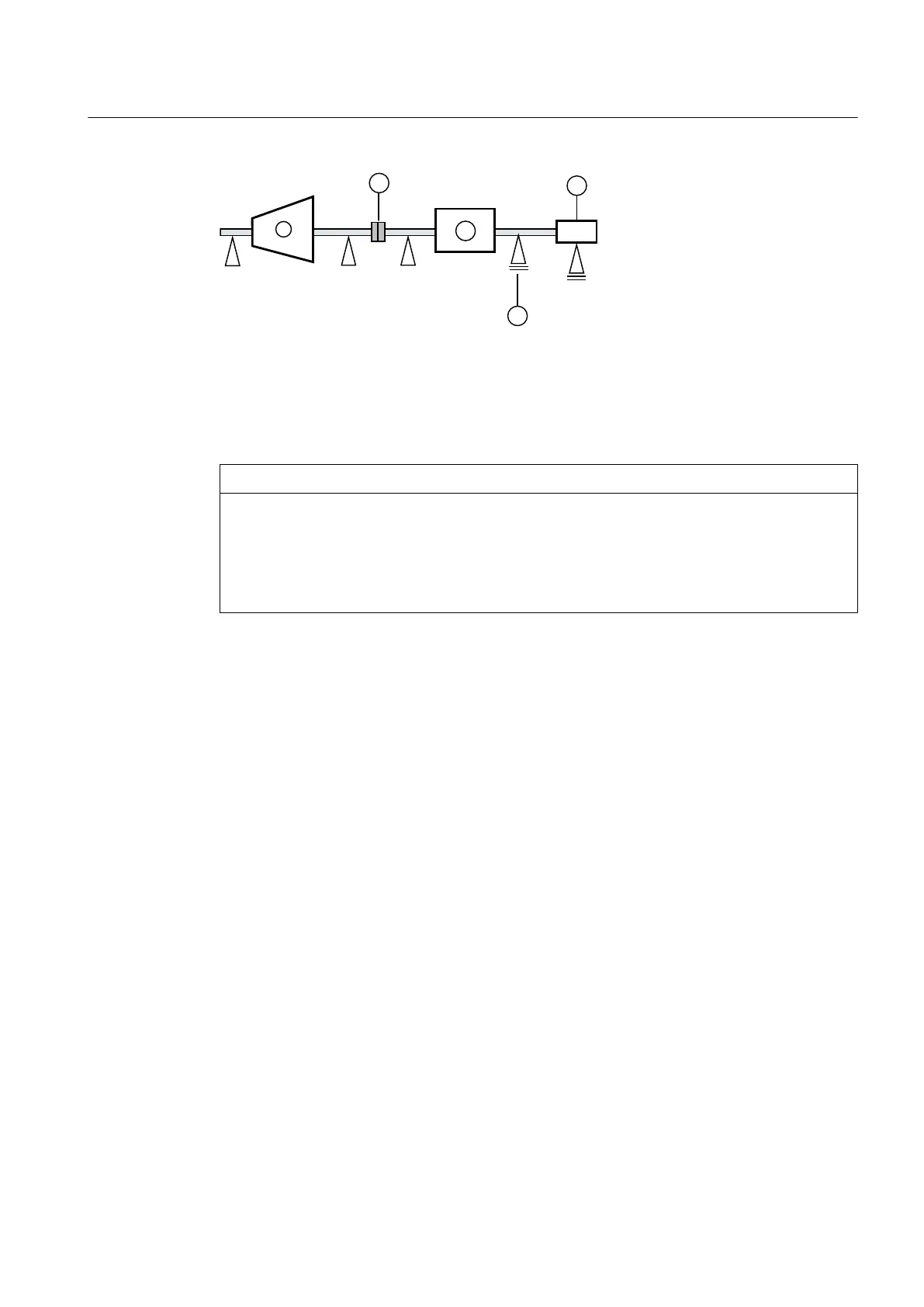

Figure 4-6 Schematic representation of a single drive
NOTICE
Bearing damage
The bearing insulation must not be bridged. Bearing currents can damage bearings.
● Also when performing subsequent installation work, e.g. installing an automatic lubrication
system or a non-insulated vibration sensor, ensure the bearing insulation is not bridged.
● Contact your Service Center, if necessary.
See also
Service and Support (Page 131)
Preparations for use
4.14 Converter operation
SIMOTICS M-1PH8 1PH818., 1PH822.
Operating Instructions 07/2016 47
