Operator control (hardware)
3.2 SIMOTION CF
3.2.3 Changing the Compact Flash card
Procedure
Proceed as follows:
1. Switch off the power supply.
2. Remove the CompactFlash card from the control unit.
3. Take hold of the thumb grip between your thumb and forefinger and withdraw the card.
4. Gently insert the new CompactFlash into the plug-in slot until it clicks into place. When
properly installed, the card does not extend beyond the housing.
5. Switch the power supply on again.
&RPSDFW)ODVK
FDUG
$UURZ

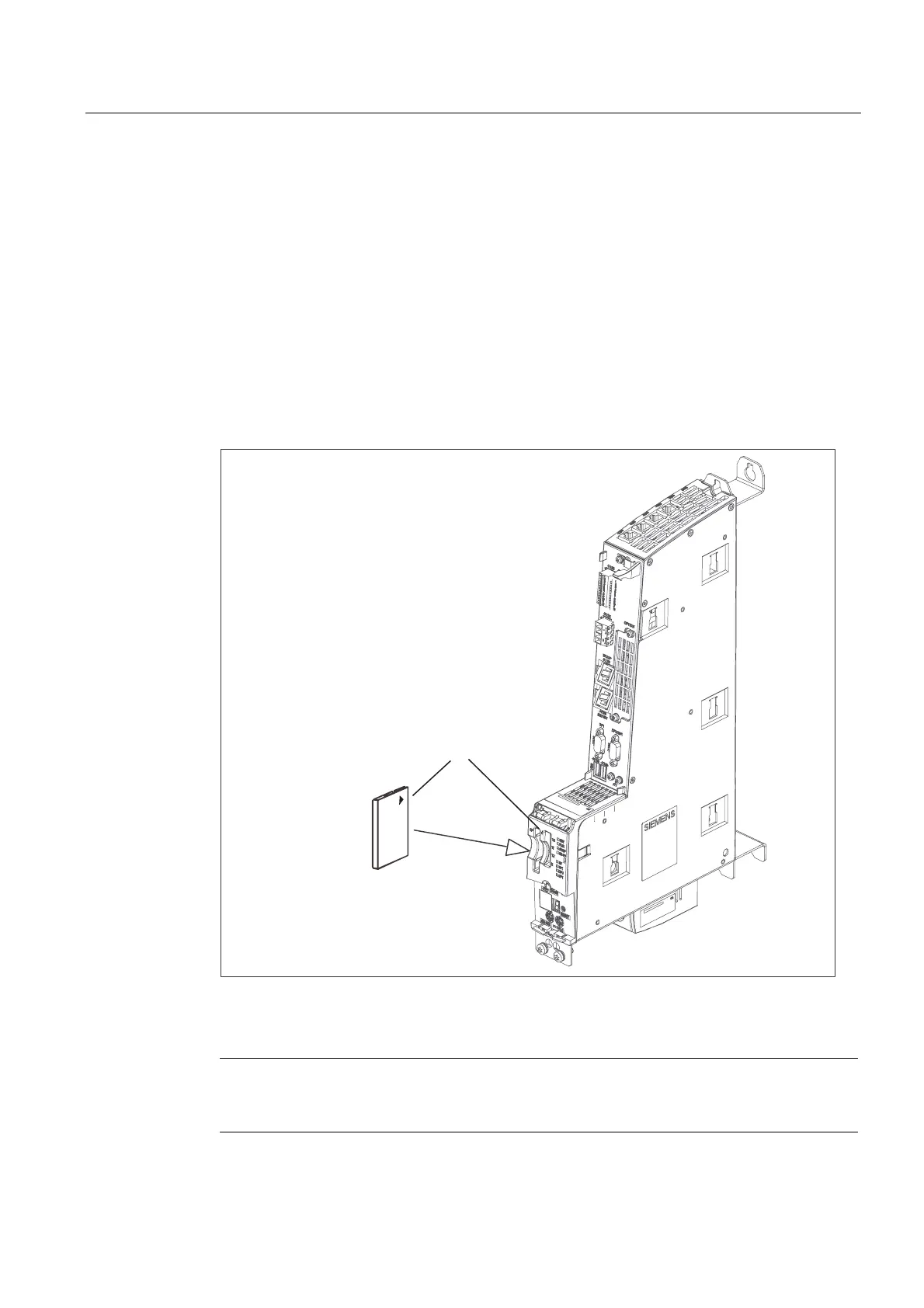

Figure 3-6 Inserting the CompactFlash card
Note
A small arrow is located on the housing front panel and on the Compact Flash card for
correct insertion of the CompactFlash card
D4xx
Manual, 12.2004, 6AU1900-1AJ32-0BA0
3-11
