Interfaces
4.3 Ethernet interfaces
Position of connectors

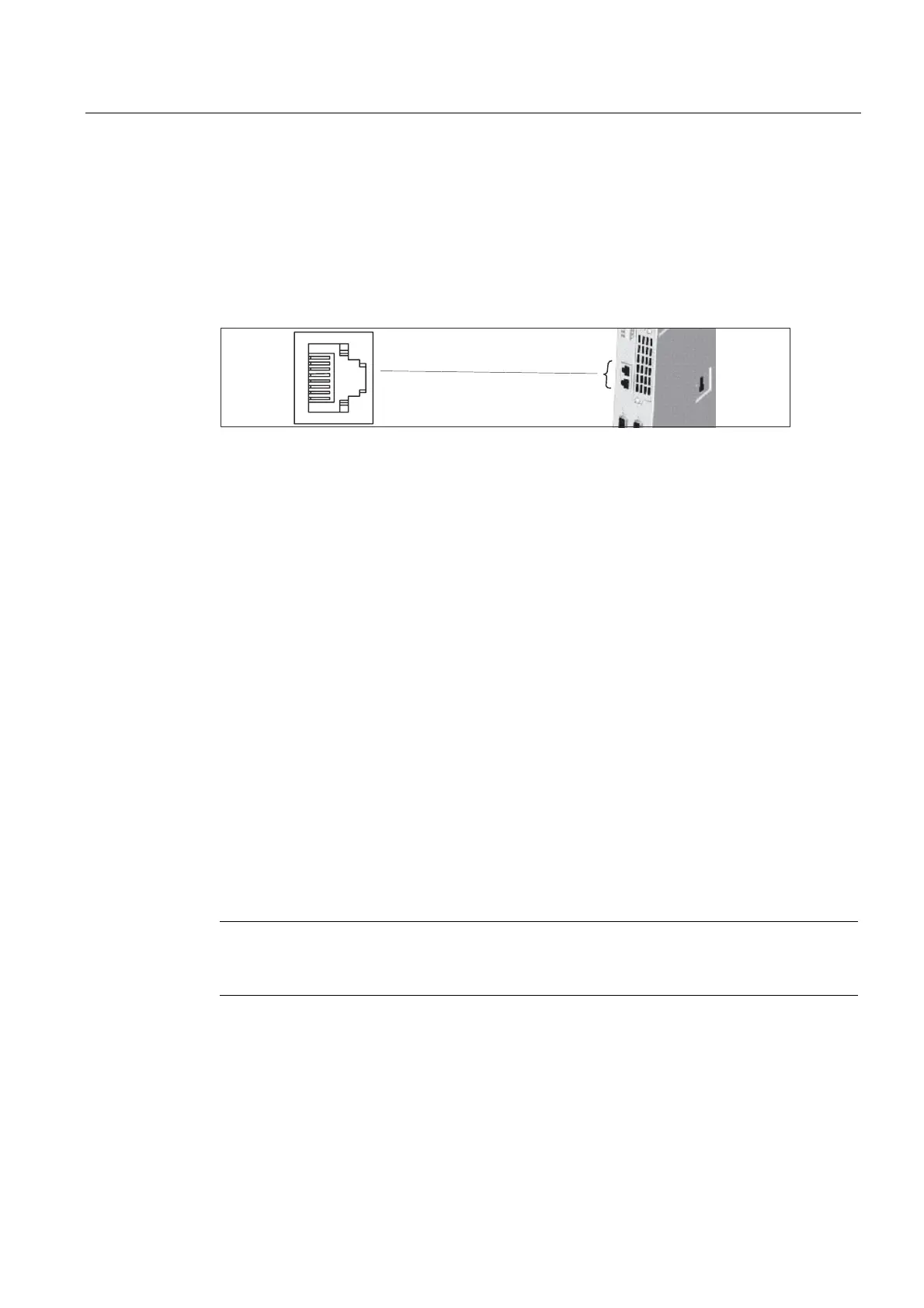

The following figure shows the mounting position and designation of the Ethernet connectors
on the module.
B
Q
8
1
Figure 4-2 Ethernet interface
4.3.2 Use of Ethernet interfaces
Application
Interfaces for connection to Industrial Ethernet.
Industrial Ethernet is a communication network with a transmission rate of 10/100 Mbit/s.
The D4xx offers the following functions via Ethernet interfaces:
• Communication with STEP 7 and SIMOTION SCOUT
With STEP 7 V 5.2 and lower, the "SIMATIC NET SOFTNET PG (Protocol TPC/IP RFC
1006)" software must be installed on the PG/PC. With STEP 7 V 5.3 and higher,
additional software is not needed.
• Communication between SIMOTION and SIMATIC NET OPC
The "SIMATIC NET SOFTNET-S7 (S7-OPC-Server)" software must be installed on the
PG/PC for this function.
• Communication by means of SIMOTION OPC XML-DA (separate license required).
Note
SOFTNET S7 is a superset of SOFTNET PG, i.e., SOFTNET S7 contains Protocol TPC/IP
RFC 1006, as well.
Additional references
For additional information on the software packages, refer to SIMOTION Motion Control
System, PM 10 Catalog (see list of references for order number).
D4xx
Manual, 12.2004, 6AU1900-1AJ32-0BA0
4-5
