Interfaces
4.6 PROFIBUS-DP interfaces
Note
The 24 V is looped through via the 24 V connector. In this case, pin 1 is jumpered with pin 2,
and pin 3 is jumpered with pin 4.

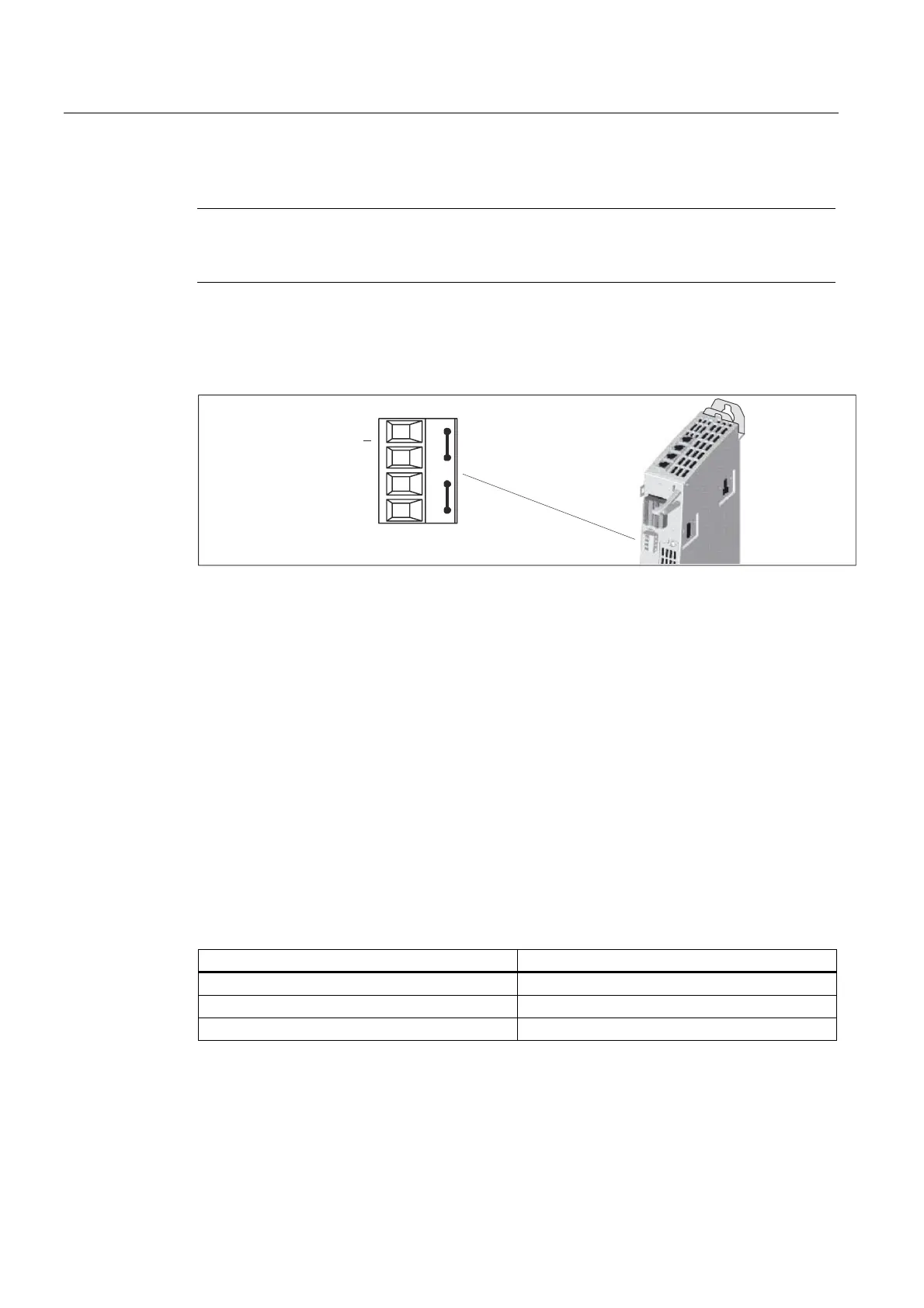

Position of power supply interface
0
3RZHUVXSSO\
SOXJ
$OUHDG\SOXJJHGLQZKHQSURGXFWLVVKLSSHG
Figure 4-5 Power supply interface
Application of X124
This interface is provided exclusively for connection to the external power supply.
4.6 PROFIBUS-DP interfaces
4.6.1 PROFIBUS-DP interfaces X126 and X136
Features of the interface
Table 4-13 Interfaces X126 and X136
Features Type
Connector type 9-pin Sub-D socket
Cable type PROFIBUS cable
Maximum cable length 100 m for 12 Mbits
D4xx
4-12 Manual, 12.2004, 6AU1900-1AJ32-0BA0
