Connecting
6.3 Block diagram with connection suggestion
SINAMICS DCM DC Converter
122 Operating Instructions, 12/2018, A5E34763375A
900 A to 1200 A devices with option L21, single-phase fan connection

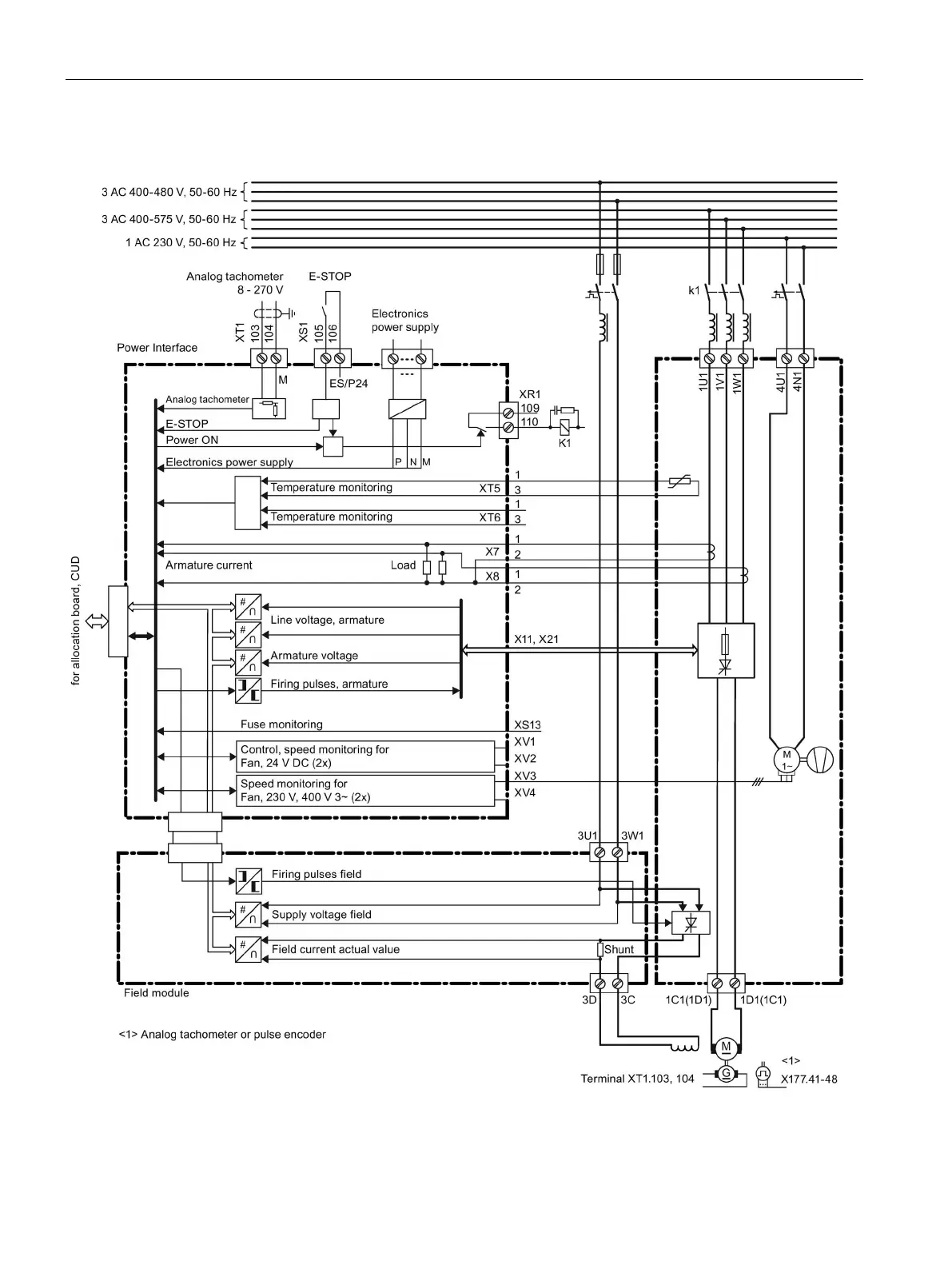

Figure 6-24 Block diagram for 900 to 1200 A devices, 1-phase fan connection
