Connecting
6.4 Power connections
SINAMICS DCM DC Converter
124 Operating Instructions, 12/2018, A5E34763375A
60 A/2Q devices
6RA8025-6DS22-0AA0, 6RA8025-6FS22-0AA0, 6RA8025-6GS22-0AA0
a = 20 x 3 mm, b = 20 x 5 mm

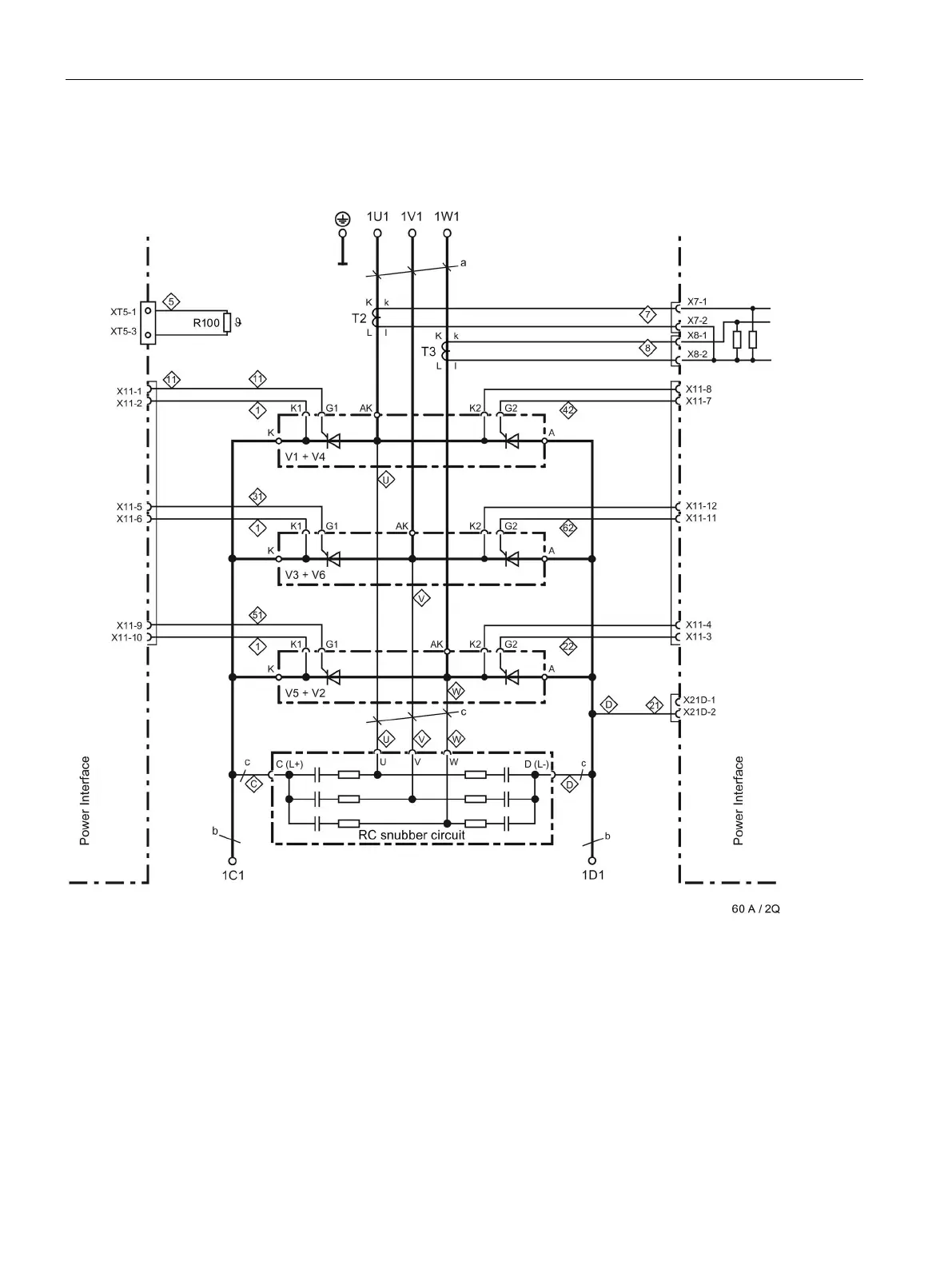

Figure 6-25 Power connections for 60 A/2Q devices
