Connecting
6.8 Arrangement of terminals and connectors
SINAMICS DCM DC Converter
156 Operating Instructions, 12/2018, A5E34763375A
6.8
Arrangement of terminals and connectors
Module – Control Unit (CUD)

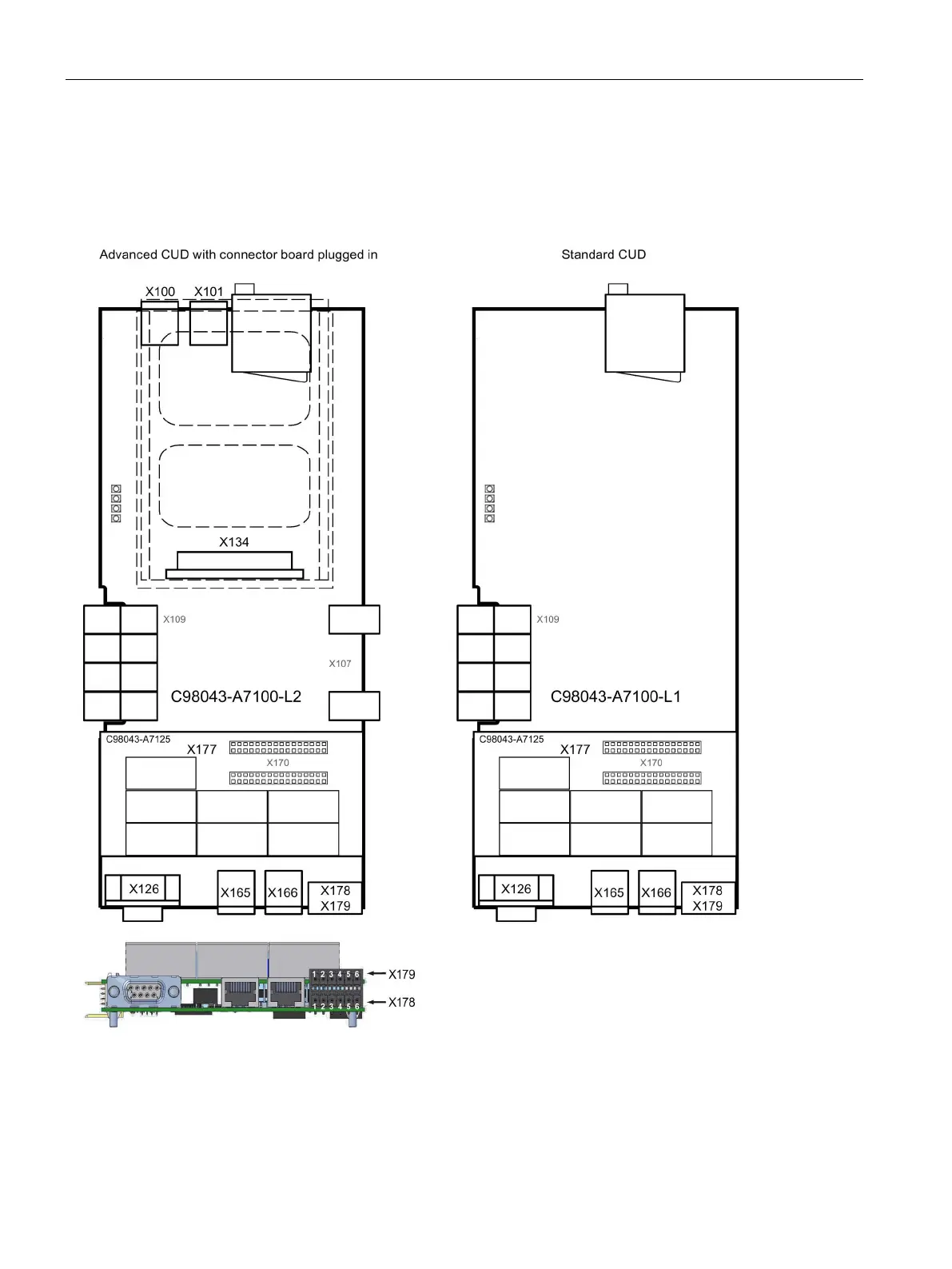

Figure 6-44 Terminal/connector arrangement on the "Control Unit (CUD)"
