3.3 Design
The drive in the basic configuration is equipped with the following components:
● A Basic Line Module (12-, 18-, 24- or 36-pulse)
● A Motor Module deploying M2C technology
A Braking Module in M2C technology is optionally available.

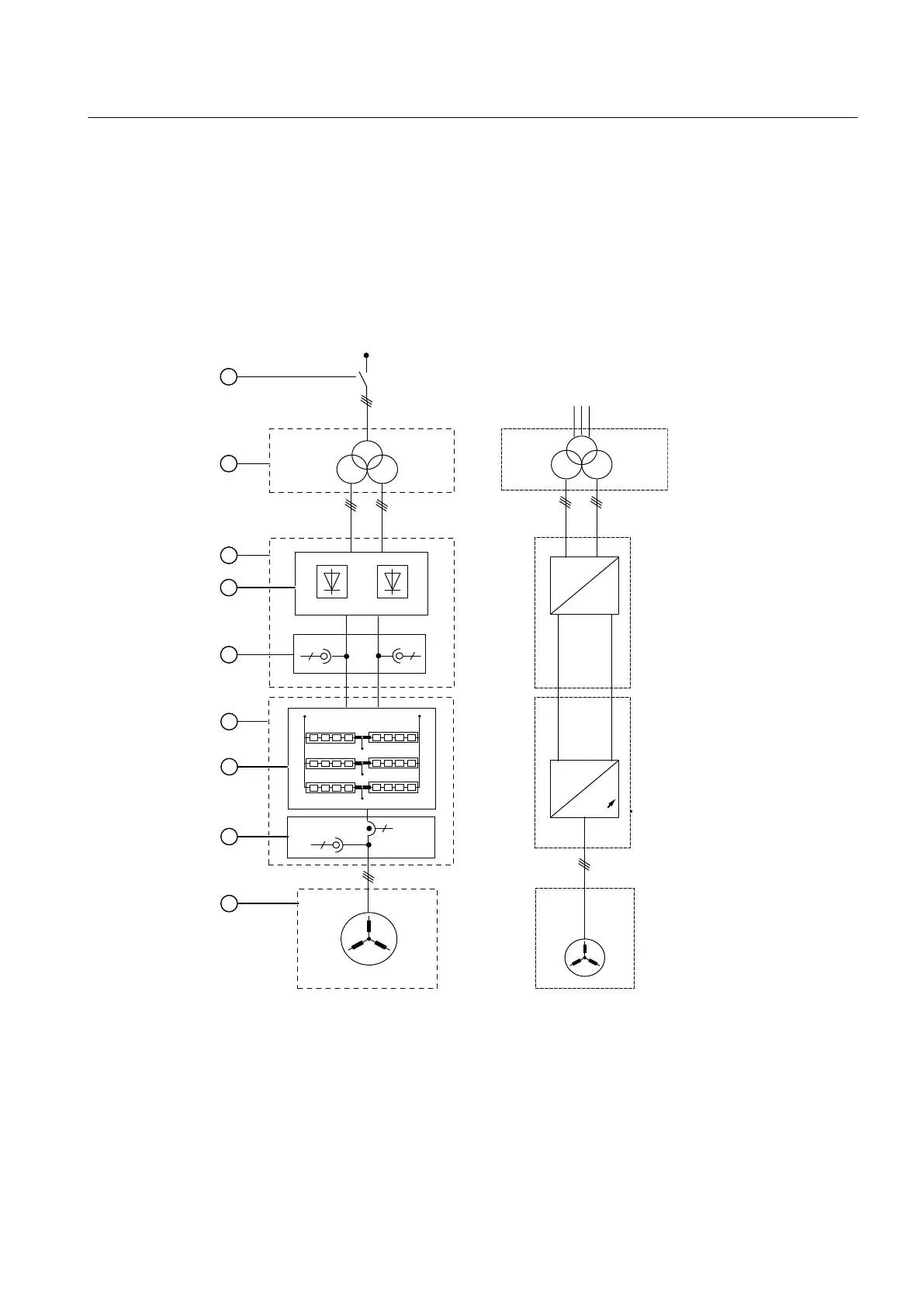

① Circuit-breaker ⑥ Motor Module (M2C)
② Converter transformer ⑦ Inverter (IGBT)
③ Basic Line Module ⑧ Actual value sensing on the motor side
④ Diode rectifier ⑨ High-voltage motor
⑤ DC link actual value sensing
Figure 3-1 Example – Design of the converter
Description
3.3 Design
SINAMICS PERFECT HARMONY GH150 6SL38253AE412AA1-Z
Operating Instructions Rev.201910281231 EXAMPLE 31
