3.10.2 Electrical interfaces
Auxiliary supply and signals
15-pin interfaces for the auxiliary power supply and signals are available at the input and output.

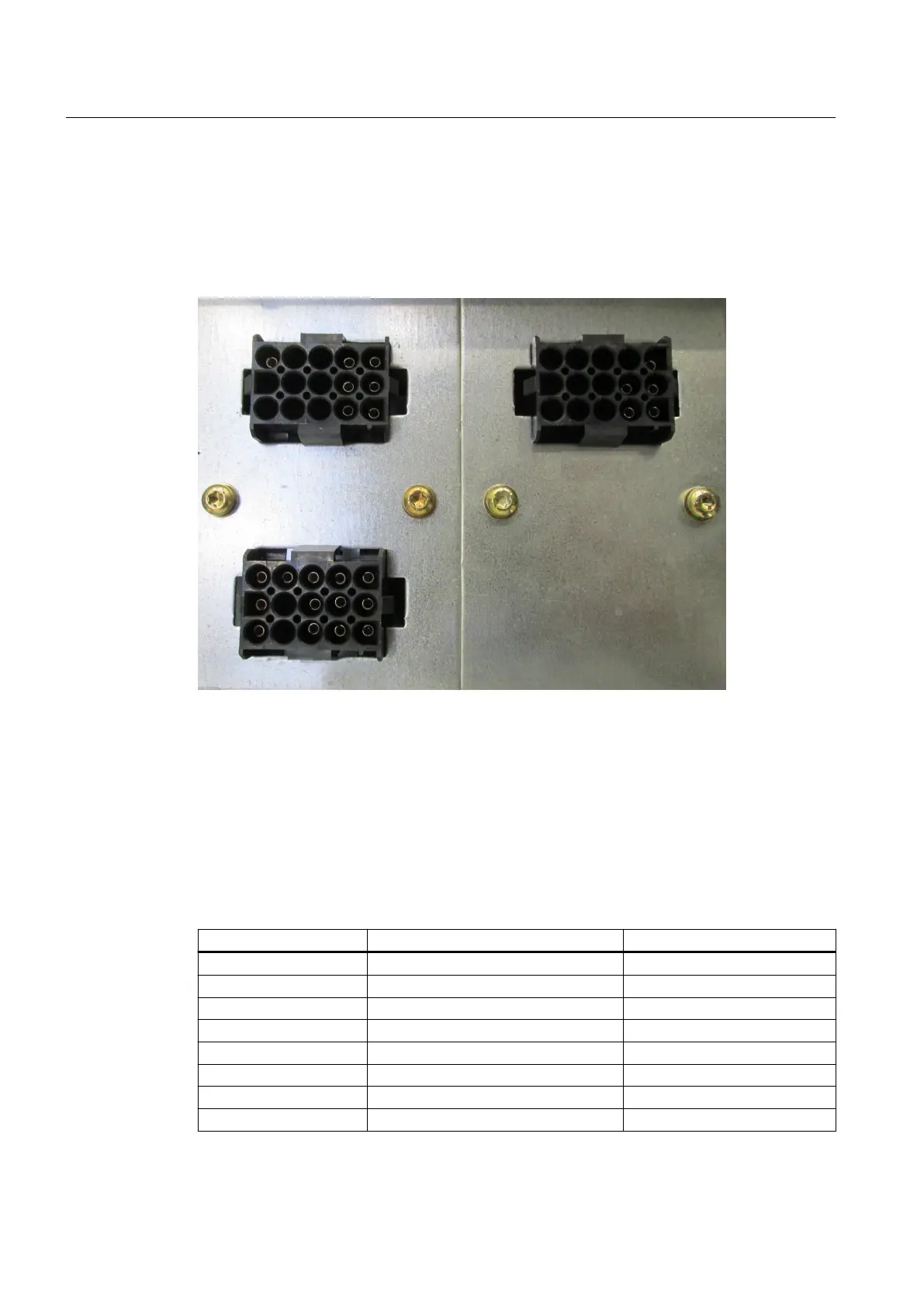

Figure 3-12 Auxiliary supply and signal interfaces
See also
Laying the signal lines (Page 86)
3.10.3 DRIVE-CLiQ interface
Table 3-3 DRIVE-CLiQ interface
Pin Signal name Technical data
1 TXP Transmit data +
2 TXN Transmit data -
3 RXP Receive data +
4 Reserved, do not use
5 Reserved, do not use
6 RXN Receive data -
7 Reserved, do not use
8 Reserved, do not use
Description
3.10 Interfaces
SINAMICS PERFECT HARMONY GH150 6SL38253AE412AA1-Z
56 Operating Instructions Rev.201910281231 EXAMPLE
