NOTICE
Damage due to incorrect lifting
If the transport unit is lifted incorrectly, this can damage the decorative trim, cabinet doors, or
fans.
● Protect the cabinet and protruding parts against damage.
● Always lift the transport units with the appropriate spreading devices or hoisting tackle.
Procedure
1. If there are several holes, select which holes to use based on the center of gravity.
2. Push the lifting bars through the holes.

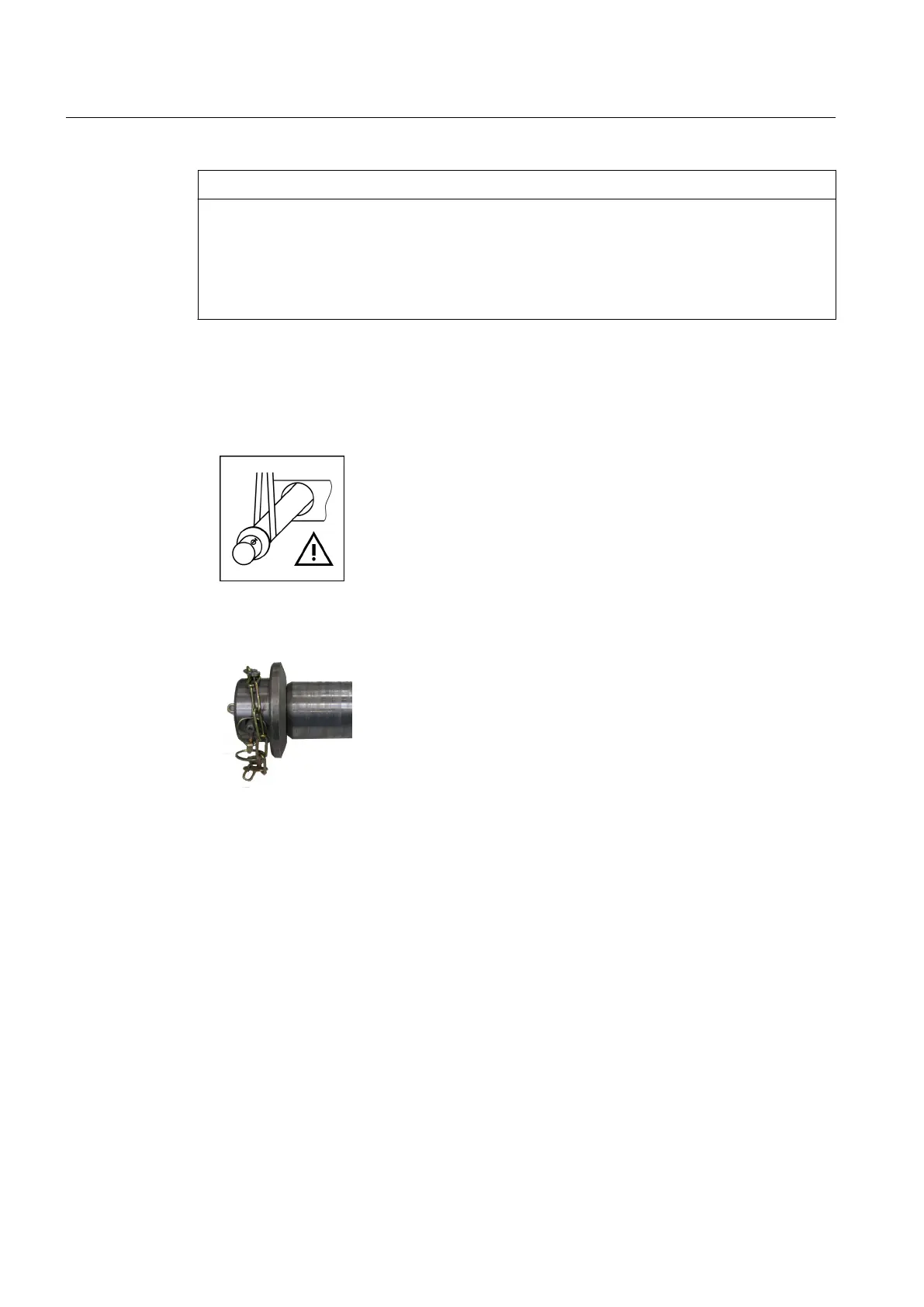

Figure 4-3 Lifting bar label
3. Place the sling ropes on the lifting bars so they are close to the cabinet. Secure the ends of
the lifting bars using the splint.
Figure 4-4 Securing the lifting rods
4. To lift the transport unit, use single sling ropes or two ropes with a cross stitch. Attach the
crane rope to the lifting rods so it is close to the cabinet.
5. Lift the cabinet. Avoid shifting the center of gravity or distorting or damaging the cabinet.
When suspended, the cabinet must be parallel to the ground.
Preparations for use
4.3 Transport
SINAMICS PERFECT HARMONY GH150 6SL38253AE412AA1-Z
64 Operating Instructions Rev.201910281231 EXAMPLE
