① X340, X341 Reserved
② X331, X332, X333 Analog and digital outputs and temperature sensor connec‐
tions
③ S5.0, S5.1, S6.0, S6.1 Switch for the analog inputs
④ X321, X322, X323 Digital inputs, analog inputs, bidirectional digital inputs/outputs
⑤ LEDs -
⑥ X310 Electronics power supply
⑦ X250, X251 Reserved
⑧ X200 to X202 DRIVE-CLiQ interfaces
⑨ X70 to X81 Actual value channels
⑩ X90 to X93 PSA link
⑪ X11 to X16,
X21 to X26,
X31 to X36,
X41 to X46,
X51 to X56,
X61 to X66
Gating of the power semiconductors

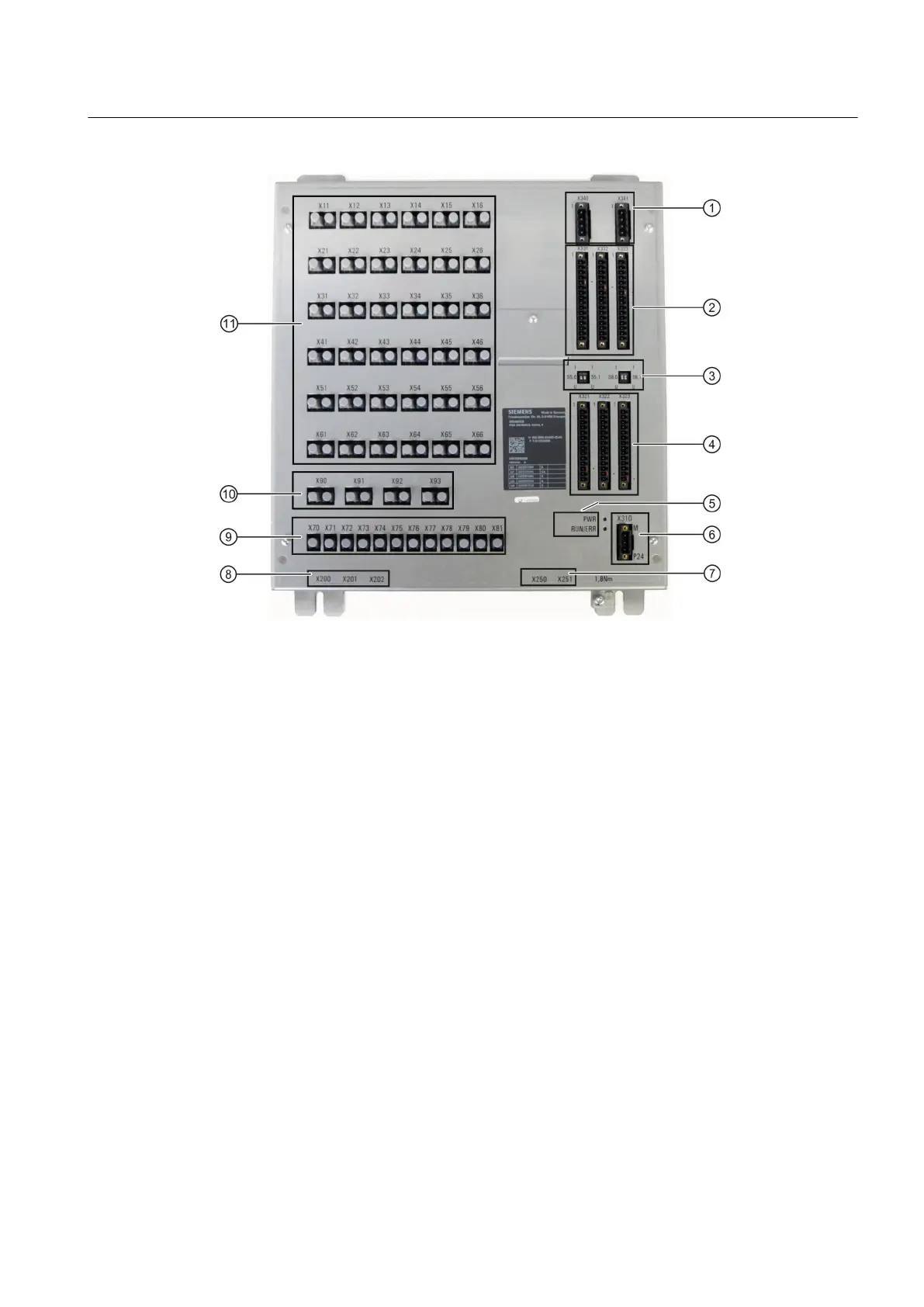

Figure 3-5 Interface overview of power stack adapter 4
See also
DRIVE-CLiQ interface (Page 56)
LEDs of the Power Stack Adapters (Page 100)
Description
3.8 Components
SINAMICS PERFECT HARMONY GH150 6SL38253AE412AA1-Z
Operating Instructions Rev.201910281231 EXAMPLE 41
