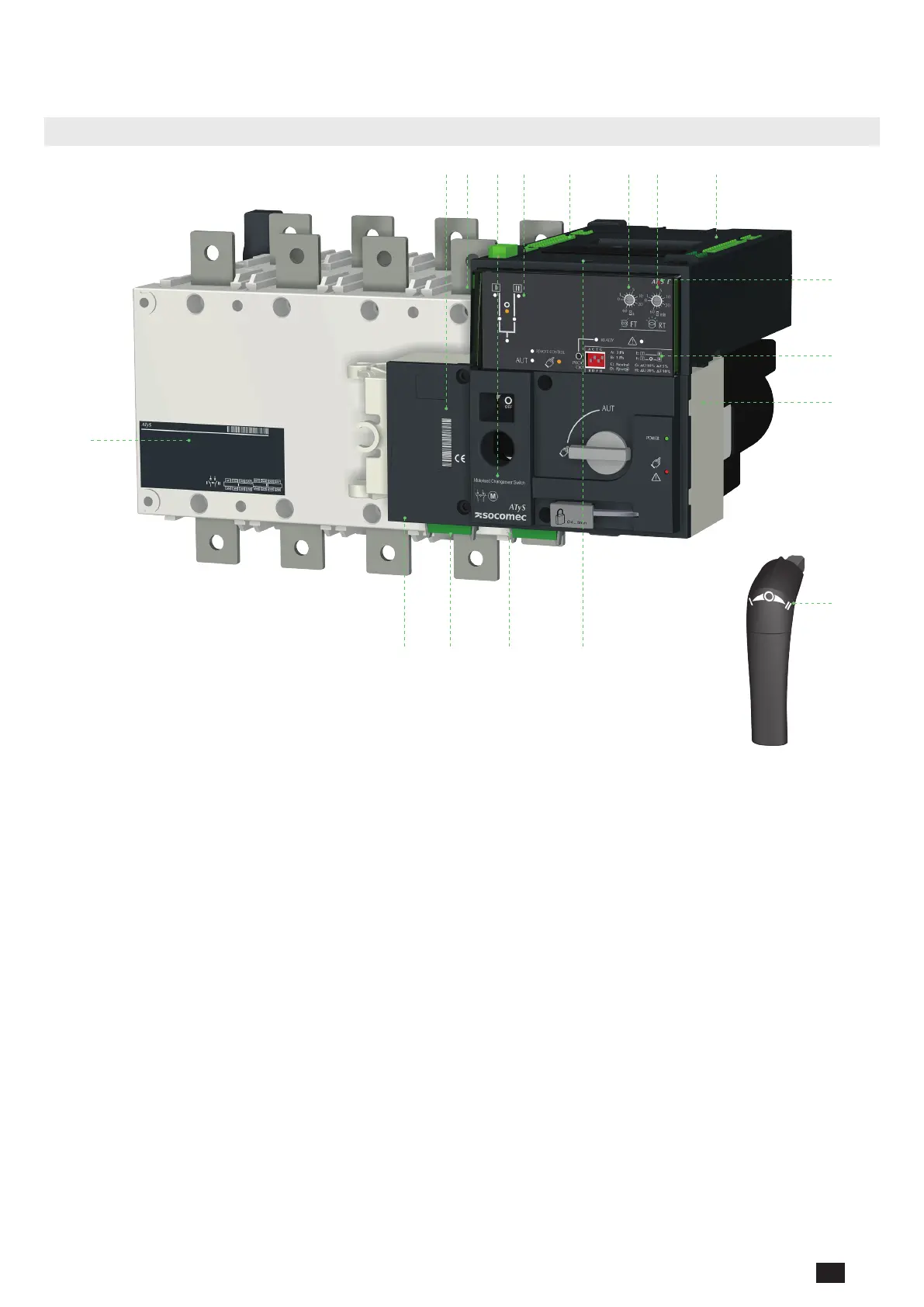

5.2. Product identication
11
9
10
13 161415
1
2 3 5 7 94 86
12
1. Main changeover switch identication label:
Electrical characteristics
Applicable standards and
Terminal incoming and outgoing wiring details.
2. Complete ATySt product serial number, barcode and CE marking.
3. Switch 1 (Front) and Switch 2 (back) identication labels
4. ATySt product current rating and reference number label
5. ATS controller contact identication labels
6. Network status and switch position pictogram with LED’s
7. Mains failure timer setting dial. (0-60s)
8. ATyS product type identication. (ATySt, ATySg or ATySp)
9. Mains return timer setting dial. (0-60mins)
10. Dip switch conguration identication.
11. Motor barcode and serial number
12. Emergency manual operation direction of rotation indication
13. Output contacts identication label.
14. Input contacts identication label.
15. Guide to ATySt programming steps.
16. Reset button (Push and hold for at least 1s to restart the ATS controller).
