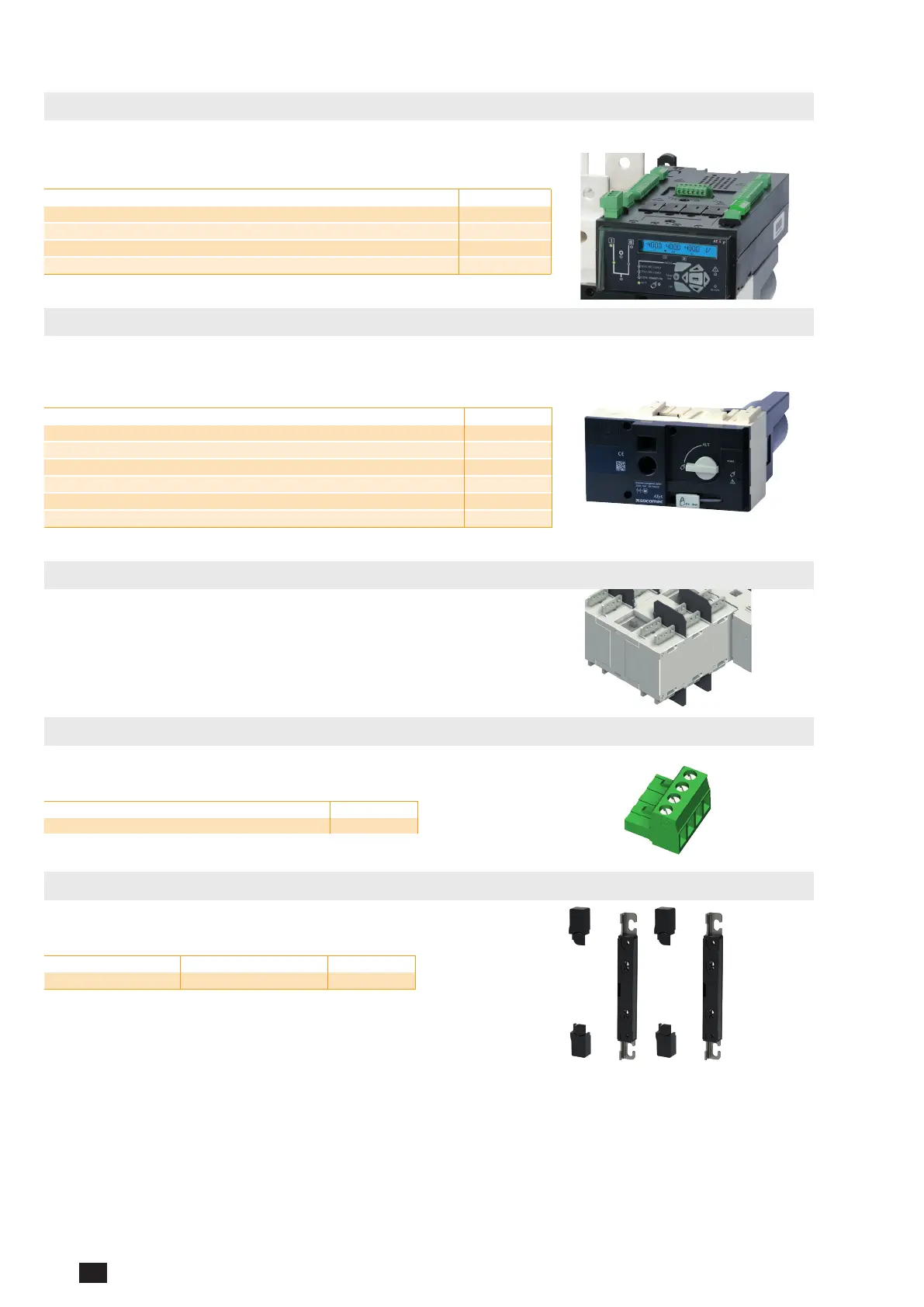

14. SPARE PARTS
14.1. Electronic module
The electronic module of ATyS d, t, g and p can be easily
replaced in case of problems, even when the load is supplied.
Provided with required connectors.
Productmodel References
ATyS d
9539 2001
ATyS t
9549 2001
ATyS g
9559 2001
ATyS p
9579 2001
14.2. Motorisation module
The motorisation module of ATyS r, d, t, g and p can be easily
replaced in case of problems, even when the load is supplied.
Provided with required connectors.
Rating References
125 ... 200 A
9509 5020
250 ... 400 A
9509 5040
500 ... 630 A
9509 5063
800 ... 1250 A
9509 5120
1600 A
9509 5160
2000 ... 3200 A
9509 5320
14.3. Power section
References to be used for replacing the
switching module of ATyS r, d, t, g or p.
Please contact SOCOMEC.
14.4. Kit of connectors
The kit contains all connectors need to be replaced or missing for ATyS r, d ,t, g or p.
ConnectorsKitfor Reference
ATyS r, d, t, g, p
1609 0597
14.5. Metal mounting brackets
This accessory may also be used to replace the original metal mounting brackets.
Composed of 2 metal mounting brackets and 4 plastic covers.
Rating(A) Framesize Reference
125 … 630 B3 … B5
1509 0003
