socomec ATyS t User Manual

63
EN
ATYSt - 541995C - SOCOMEC

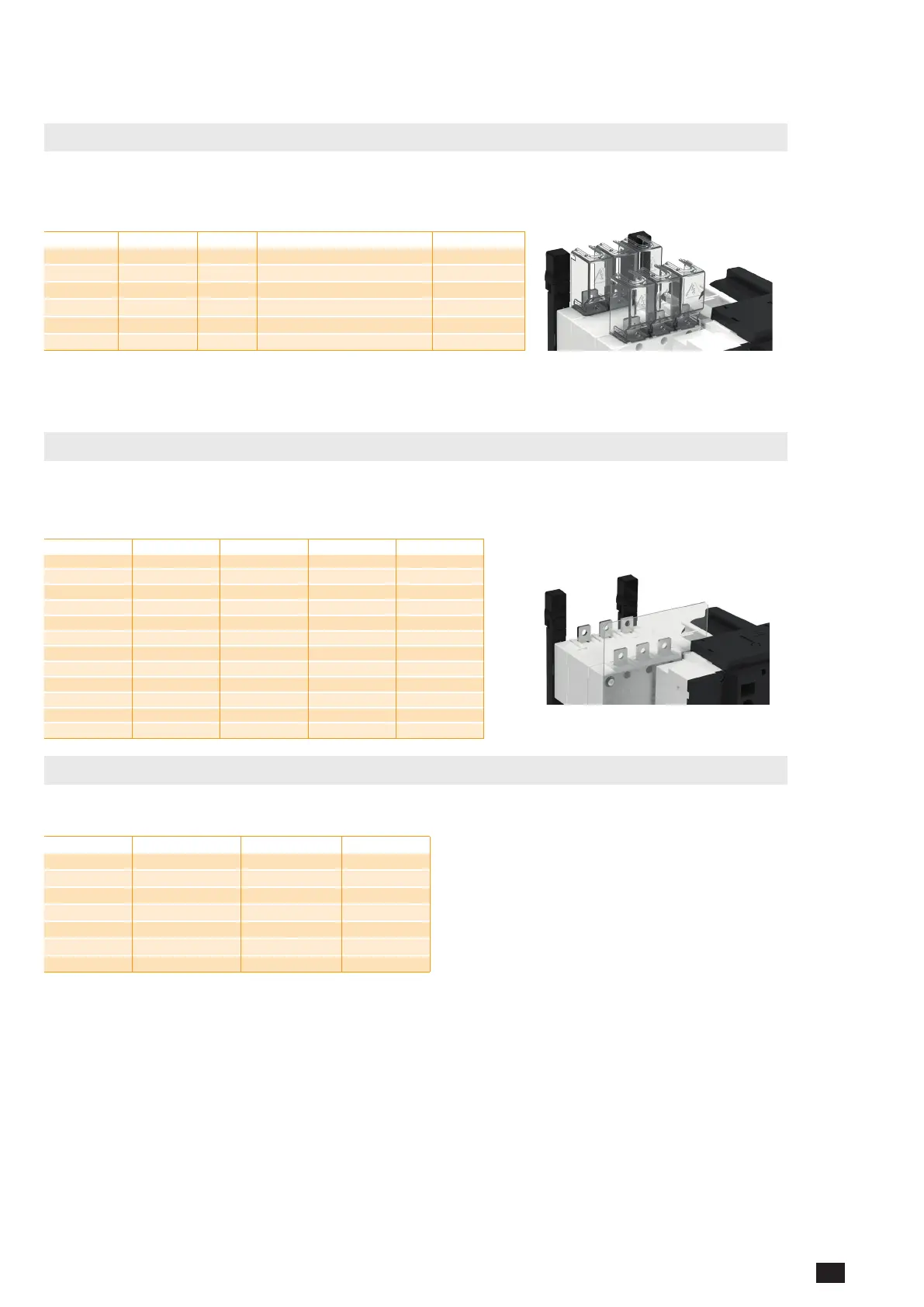

13. ACCESSORIES
13.1. Terminal shrouds
Use
IP2X protection against direct contact with
terminals or connecting parts.
Advantages
Perforations allow remote thermographic
inspection without the need to remove the
shrouds.
Rating(A) Framesize No.ofpoles Position Reference
125 … 200 B3 3 P top / bottom / front (I) / rear (II)
2694 3014
(1)(2)
125 … 200 B3 4 P top / bottom / front (I) / rear (II)
2694 4014
(1)(2)
250 … 400 B4 3 P top / bottom / front (I) / rear (II)
2694 3021
(1)(2)
250 … 400 B4 4 P top / bottom / front (I) / rear (II)
2694 4021
(1)(2)
500 … 630 B5 3 P top / bottom / front (I) / rear (II)
2694 3051
(1)(2)
500 … 630 B5 4 P top / bottom / front (I) / rear (II)
2694 4051
(1)(2)
(1) To shroud front switch top and bottom 2 references required.
(2) To fully shroud front, rear, top and bottom 4 references required.
13.2. Terminal screens
Use
Top and bottom protection against direct
contact with terminals or connection parts.
For upstream and downstream protection,
order the reference once.
Rating(A) Framesize No.ofpoles Position Reference
125 … 200 B3 3 P top / bottom
1509 3012
125 … 200 B3 4 P top / bottom
1509 4012
250 … 400 B4 3 P top / bottom
1509 3025
250 … 400 B4 4 P top / bottom
1509 4025
500 … 630 B5 3 P top / bottom
1509 3063
500 … 630 B5 4 P top / bottom
1509 4063
800 … 1250 B6 3 P top / bottom
1509 3080
800 … 1250 B6 4 P top / bottom
1509 4080
1600 B7 3 P top / bottom
1509 3160
1600 B7 4 P top / bottom
1509 4160
2000 … 3200 B8 3 P top / bottom
1509 3200
2000 … 3200 B8 4 P top / bottom
1509 4200
13.3. Inter-phase barrier
Use
Safe isolation between the terminals, essential for use at 690 VAC or in a polluted or dusty atmosphere.
Rating(A) Framesize No.ofpoles Reference
125 … 200 B3 3 P
2998 0033
125 … 200 B3 4 P
2998 0034
250 … 400 B4 3 P
2998 0023
250 … 400 B4 4 P
2998 0024
500 … 630 B5 3 P
2998 0013
500 … 630 B5 4 P
2998 0014
800 … 3200 B6 … B8 3/4 P included
