socomec ATyS t User Manual

55
EN
ATYSt - 541995C - SOCOMEC
8.2.4.4. Technical data
Auxiliary Contact Quantity 4
Conguration NO
Mechanical Endurance 100 000 cycles
Response Time 5 – 10 ms
Startup duration 200ms
Rated Voltage / Switching Voltage 250VAC
Rated Current 2A
Surge protectionVin_sg: 4.8kV (1.2/50µs surge)
ESD withstand voltage (Contact/air): 2/4kV
Dielectric Strength contact/parts: 4.8kVAC (Reinforced Insulation)
Insulation: 4.8KVAC
Output Terminal: 1.5mm
2
minimum / 2.5mm
2
maximum

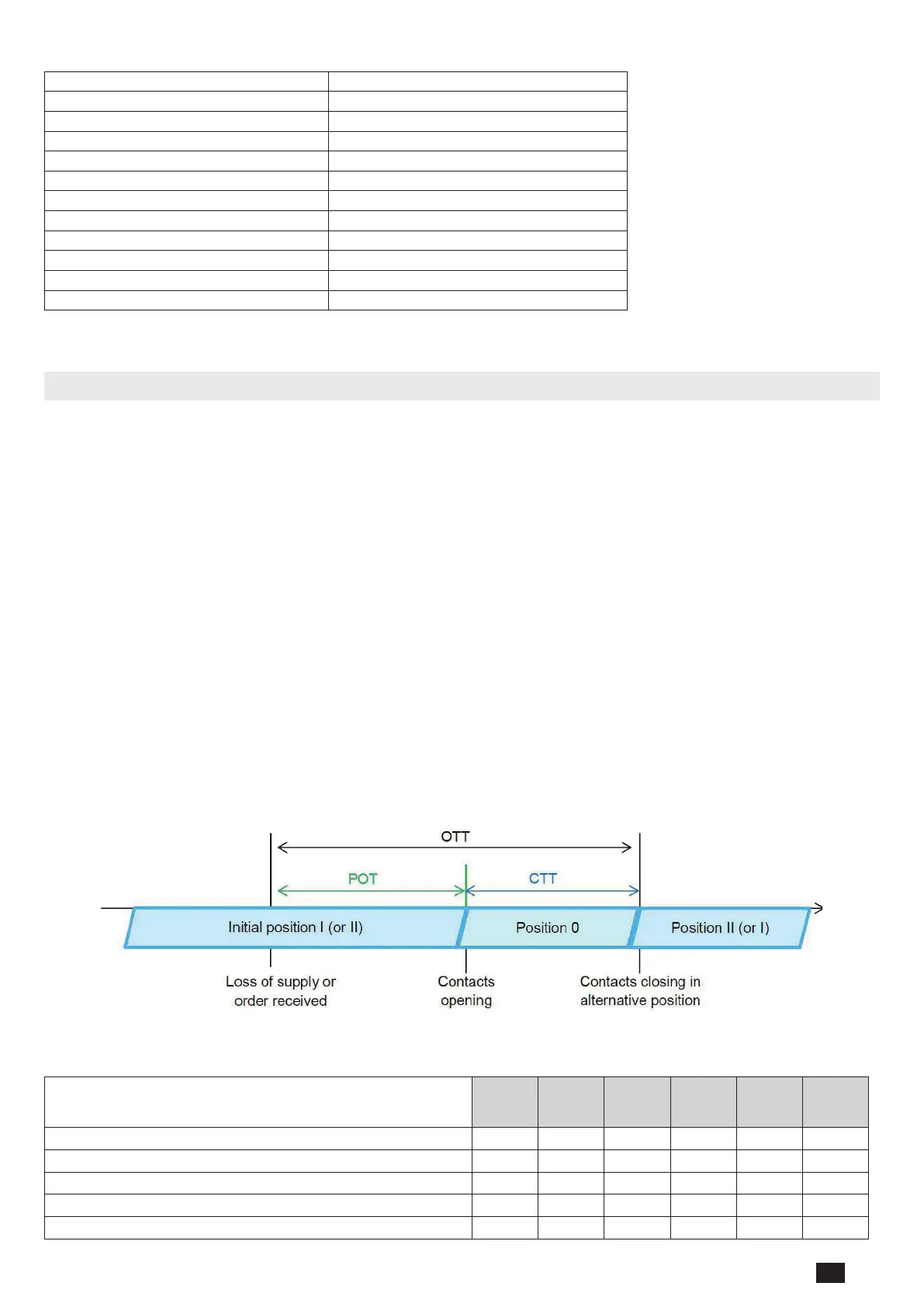

8.3. Operating Sequences
The given times are: operating transfer time, product opening time and contact transfer time. The
denitions of these times are given below:
1. Operating transfer time (OTT) – IEC 60947-6-1 §3.2.6
This time is measured from the instant the monitored supply deviates (not considered as available anymore) to the closing of
main contacts on an available alternative supply source, exclusive of any purposely introduced time delay.In other words, this
is the global transfer time, excluding all programmable delays (timers congured to 0).
If the supply deviation is not monitored by the product itself, but by an external controller, OTT time starts when the order is
received by the product.
2. Product opening time I-0 or II-0 (POT)
This time is measured from the instant that the monitored supply is not considered as available to the opening of the main
contacts, exclusive of any purposely introduced time delay. If the product is controlled via external orders, this time is
measured from the moment when the order is received to the opening of the main contacts.
3. Contact transfer time (CTT) – IEC 60947-6-1 §3.2.5
This time is measured from the parting of one set of main contacts from one power supply to the closing of a second set of
main contacts on an alternative power supply; this is the duration between the opening of the contacts on the initial position
and the closing of the contacts on the position reached, in other words, it is the time in 0 (disconnection time).
Mean switching times at nominal voltage and frequency – 25°C:
125 A
160 A
200 A
250 A
315 A
400 A
500 A
630 A
800 A
1000 A
1250 A
1600 A
2000 A
2500 A
3200 A
Contact transfer time (“electrical blackout”) I-II - CTT 0.4s 0.4s 0.4s 1.4s 1.4s 1.1s
I-0 or II-0 following an order - POT 0.54s 0.56s 0.56s 1.4s 1.4s 1.3s
Operating transfer time I-II or II-I, following an order - OTT 0.94s 0.96s 0.96s 2.8s 2.8s 2.4s
I-0 or II-0 following source’s loss or return - POT 0.75s 0.73s 0.74s 1.7s 1.5s 1.5s
Operating transfer time I-II or II-I, following source’s loss or return - OTT 1.1s 1.1s 1.1s 3.1s 2.9s 2.6s
