6.3.8. Power supply

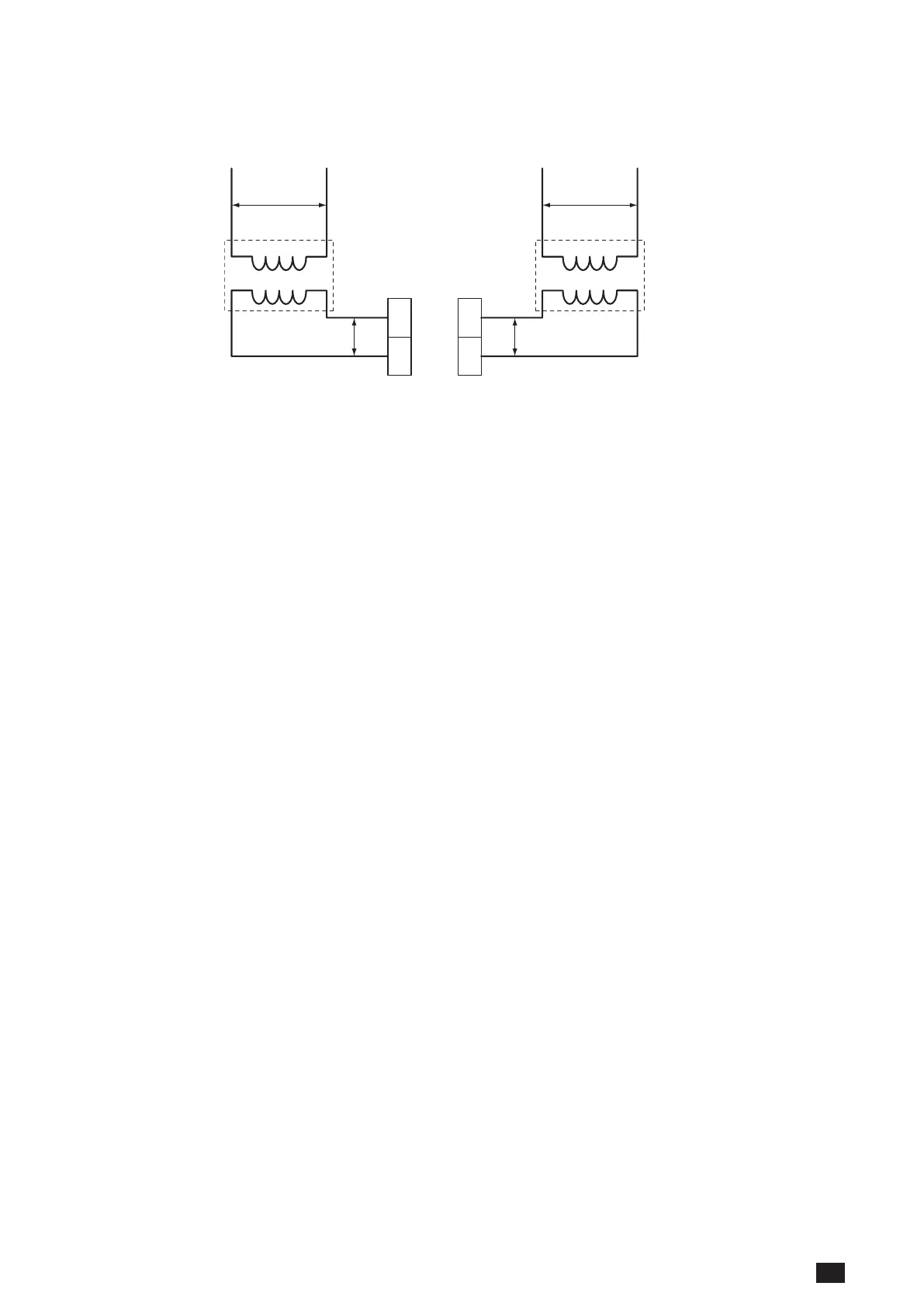

Power Transformer intended for 400 VAC, Phase to Phase voltage applications that do not provide the availability of a neutral
conductor. Transformer data: 400 VAC – 230 VAC: 200 VA. In this case the ATySt will require 2 transformers to be connected
as shown below.
101
Power 230 Vac
Power 230 Vac
400 Vac
230 Vac
102
Source 1
202
400 Vac
230 Vac
201
Source 2
