socomec ATyS t User Manual

47
EN
ATYSt - 541995C - SOCOMEC

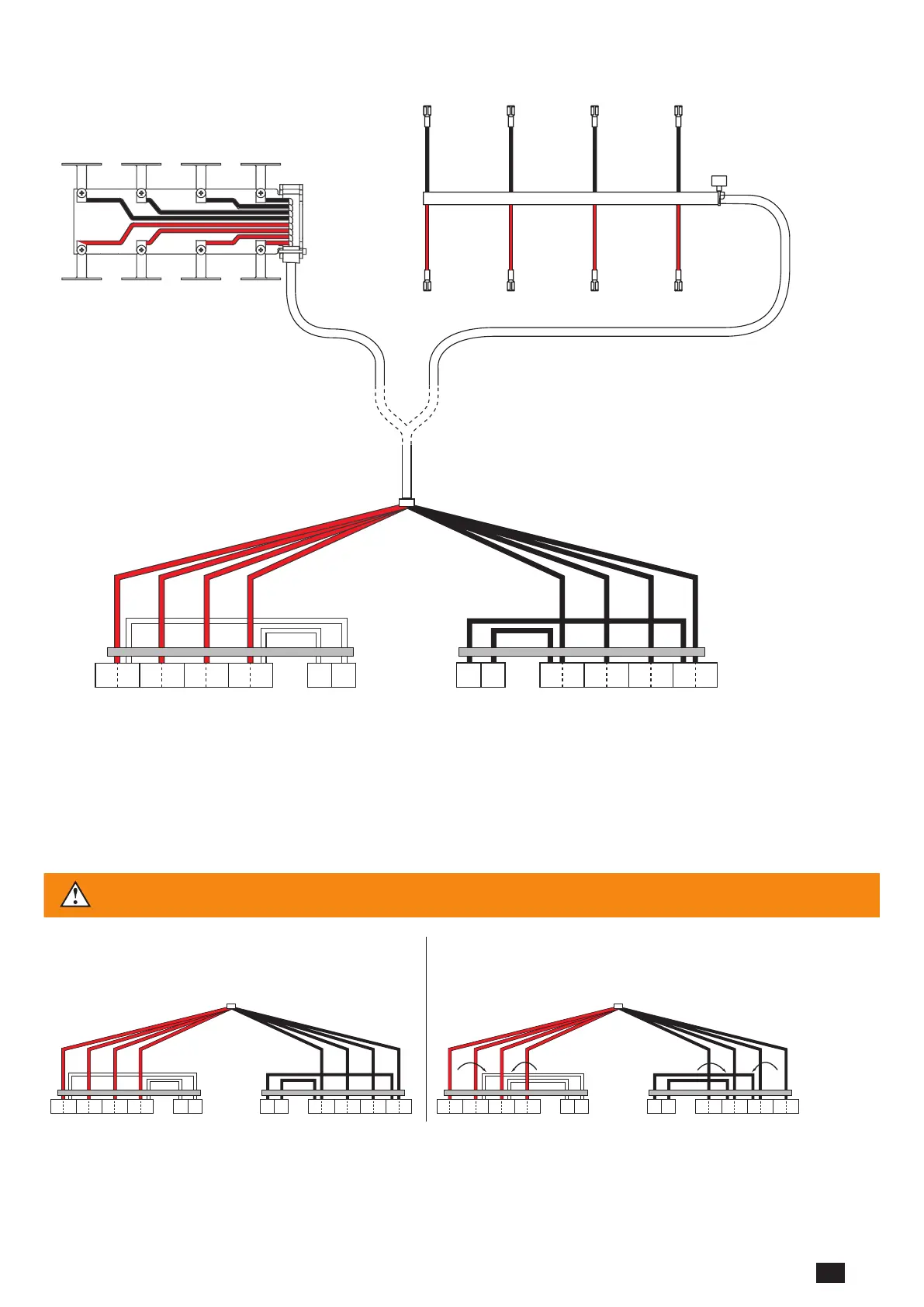

≤630ABOTTOM VIEW ≥800ABOTTOM VIEW
II
1357
2468
N/LL/N 1/23/45/67/8
I
1357
2468
7/8 5/6 3/4 1/27/8 5/6 3/4 1/2
1/2 3/4 5/6 7/8
1/2 3/4 5/6 7/8
1/2 3/4 5/6 7/8
1/2 3/4 5/6 7/8
L/N N/L 7/8 5/6 3/4 1/2
Red wires Black wires
mechanical
cables support
A AB B
7.4.3. Network
Power inputs (terminals 101-102 & 201-202) are 220/240/277 VAC (208 - 277 VAC) ± 20%. It is necessary to adapt the
power input cable connections according to the network conguration. (Power supply to be taken between phase to phase
or between phase and neutral).
CAUTION
Verify that the power supply between terminals 101 – 102 and 201 – 202 (nominal auxiliary
voltage supply) is within 208-277 VAC ± 20%.
• Standard kit:
Network 380/415 VAC ± 20% with neutral
conductor (no kit modication required):
• Kit Modication:
For network 220/240 VAC ± 20%, power supply
cables A-B to connect between phases
mechanical
cables
support
ABAB
N/LL/N 1/23/45/67/8
L/N N/L 7/8 5/6 3/4 1/2
Red wires Black wires
ABAB
N/LL/N 1/23/45/67/8
L/N N/L 7/8 5/6 3/4 1/2
Black wires
Red wires
mechanical
cables
support
