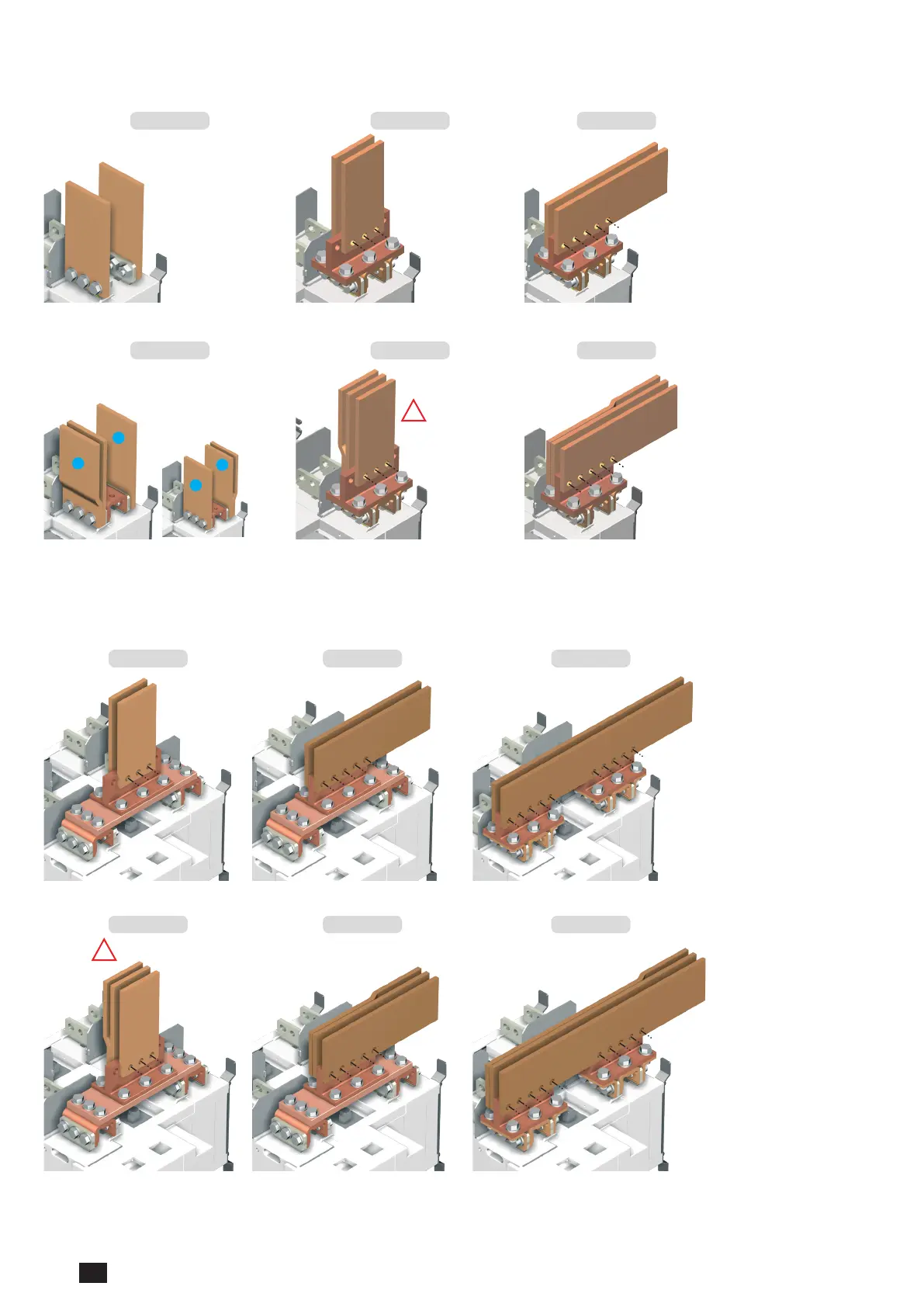

6.3.6. Incoming copper bar connection kit assembly
2000 A – 2500 A (MINIMUM CU BAR SECTION FOR ITH 2000 A 3X100X5MM; AND FOR ITH 2500 A 4X100X5MM)
VERSION 01 VERSION 02 VERSION 03
Direct
Connection
V2 & V3
Kit:
2619 1200 x 1
2629 1200 x 1
2639 1200 x 1
3200 A (MINIMUM CU BAR SECTION 3X100X10MM)
VERSION 04 VERSION 05 VERSION 06
A
B
A
B
!
2900AMax
Connection
bar 2619 1200
included with
3200 A
V4
Kit:
2699 1200 x 1
V5 & V6
Kit:
2629 1200 x 1
2639 1200 x 1
6.3.7. Outgoing bridge connection assembly
2000 A – 2500 A (MINIMUM CU BAR SECTION FOR ITH 2000 A 3X100X5MM; FOR ITH 2500 A 4X100X5MM)
VERSION 07 VERSION 08 VERSION 09
V7 & V8
Kit :
2619 1200 x 2
2699 1201 x 2
2629 1200 x 1
4109 0320 x 1
V9
Kit :
2619 1200 x 2
2629 1200 x 2
2639 1200 x 2
3200 A (MINIMUM CU BAR SECTION 3X100X10MM)
VERSION 10 VERSION 11 VERSION 12
!
2900AMax
Connection
bar 2619 1200
included with
3200A
V10 & V11
Kit :
2699 1201 x 2
2629 1200 x 1
4109 0320 x 1
V12
Kit :
2629 1200 x 2
2639 1200 x 2
