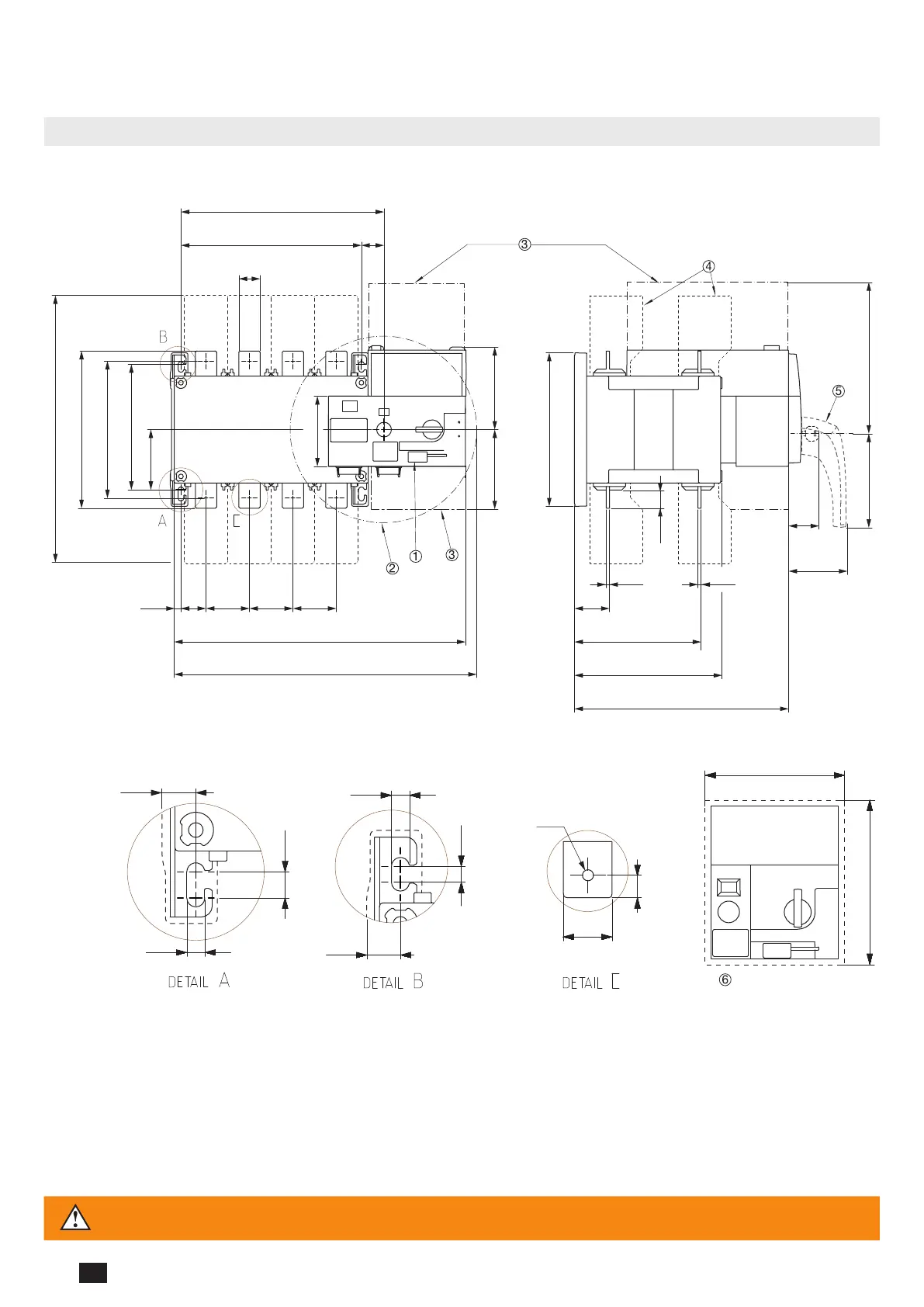

6. INSTALLATION
6.1. Product dimensions
6.1.1. Dimensions: Frame B3 to B5 (125 A to 630 A)
V
J
mm
Fix. M
Y
Z1
T10 X T T
F
A
fix. 187,5
BA
AA
AC
Z2
H
C
Y
48
140 270
88
U
J1
119
229,5
105
90
120
12,5
7,5
8,6
16,2
16,2
8,6
W
U
CA
138
165
1. Padlocking Facility: Locking bracket for up to 3 padlocks of dia. 4 – 8mm
2. Emergency manual operation: Maximum operating radius with an operating angle of 2x 90°
3. Connection and disconnection area
4. Phase Barriers
5. Emergency removable handle
6. Flush mounting cutout dimensions for front door
CAUTION
To consider the space required for manual operation and wiring (when using the ATySg
emergency handle: note 2).
