HCD-PZ1D
12

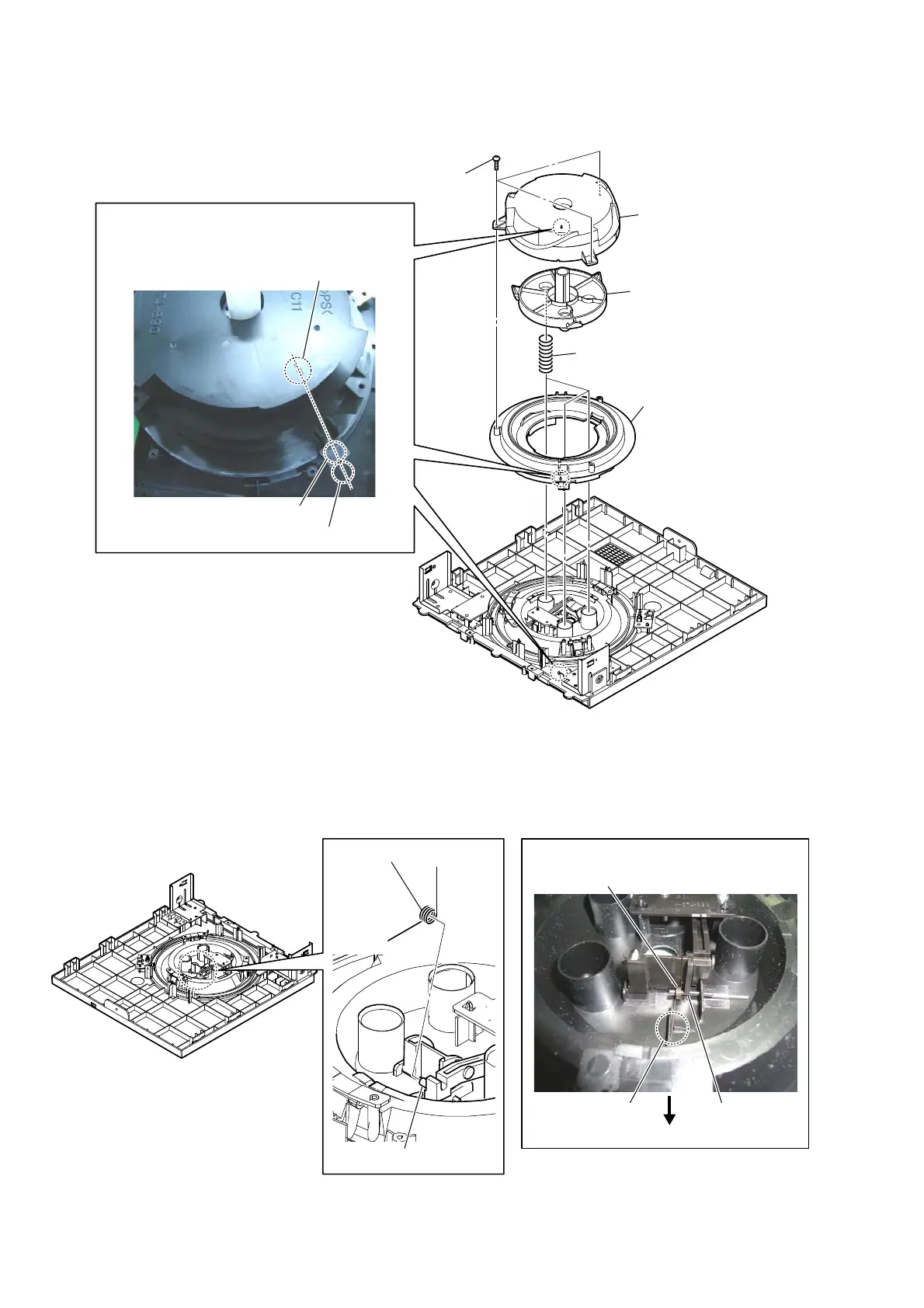

2-6. CAM RING (SHUTTER)
2-7. TORSION SPRING (A)
– Bottom view –
1 three screws
(BVTP 2.6 (3CR))
2 cam ring (elevator)
arrow mark of cam ring (elevator)
arrow mark of cam ring (shutter)
arrow mark of top panel
5 cam ring (shutter)
3 stage (plug)
4 three compression springs
Note:
When you install the cam ring (elevator) and the cam
ring (shutter), set the position of each arrow mark to
the position of the arrow mark of the top panel.
1 shutter (A) shaft
shutter (A) shaft
2 torsion spring (A)
7RUVLRQVSULQJ$VHWWLQJ
–%RWWRPUHDUYLHZ–
torsion spring (A)
ditch of top panel
rear side
