Sony HCD-PZ1D - Mechanism Deck Section-2 (CDM74 HFVX-DVBU101)

88
HCD-PZ1D
401 A-1103-756-B DRIVER BOARD, COMPLETE
402 4-218-253-52 SCREW (M2.6), +BTTP
403 3-273-015-02 CHASSIS
404 4-244-034-11 BELT (LOADING)
405 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
406 4-225-844-01 GEAR (LOADING A)
407 4-224-613-11 GEAR (SHAFT)
408 1-687-133-12 MOTOR (LD) BOARD
409 4-244-108-01 GEAR, SWING
410 4-224-609-01 GEAR (LOADING C)
411 4-224-608-01 COLLAR, SWING
412 3-016-533-11 WASHER (FR), STOPPER
413 4-224-611-01 GEAR (LOADING B)
414 4-224-606-01 GEAR (RV)
415 4-243-818-01 GEAR (U/D)
416 2-541-918-01 LEVER (LIFTER (H))
417 2-345-983-01 PULLEY B (310), CHUCKING
418 3-087-599-01 INSULATOR SCREW
419 2-634-618-31 INSULATOR
420 1-828-251-51 WIRE (FLAT TYPE) (24 CORE)
0 421 8-820-322-04 OPTICAL PICK-UP (KHM-313CAB/C2RP)
422 1-687-669-12 SW BOARD
423 2-345-982-01 PULLEY A (310), CHUCKING
M751 A-1143-804-A MOTOR ASSY, LOADING (LOADING)
RE701 1-477-680-12 ENCODER, ROTARY
(DISC TRAY ADDRESS DETECT)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

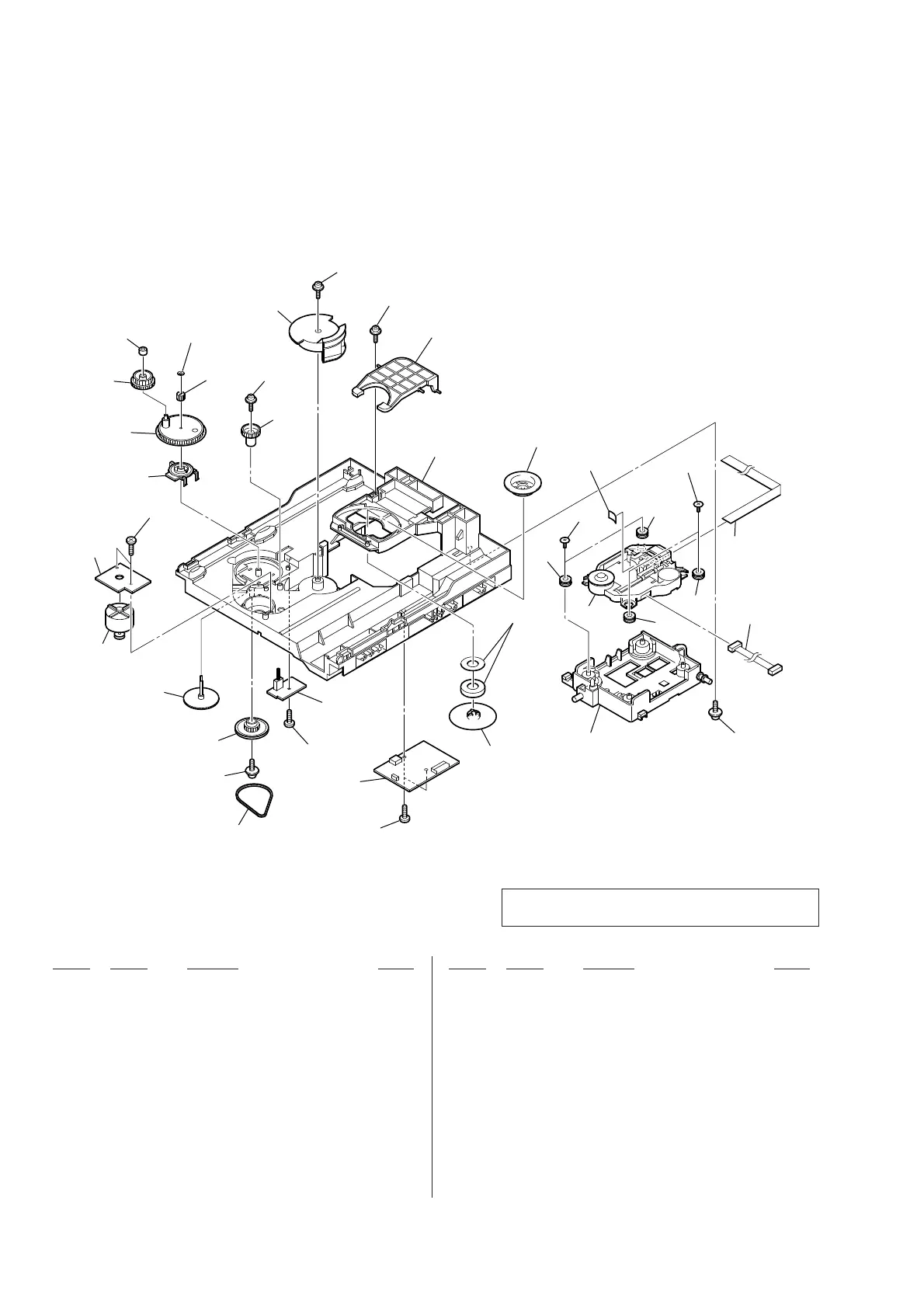

6-9. MECHANISM DECK SECTION-2
(CDM74HFVX-DVBU101)
Note: If the wire (fl at type) was replaced, fold it some as the
wire (fl at type) before replacement.
401
402
402
402
404
405
405
406
407
408
409
410
411
412
413
414
415
416
417
403
418
418
419
419
419
419
420
421
423
422
405
405
405
M751
not supplied
not supplied
not supplied
not
supplied
RE701
