Sony HCD-PZ1D - Back Panel Block

HCD-PZ1D
22

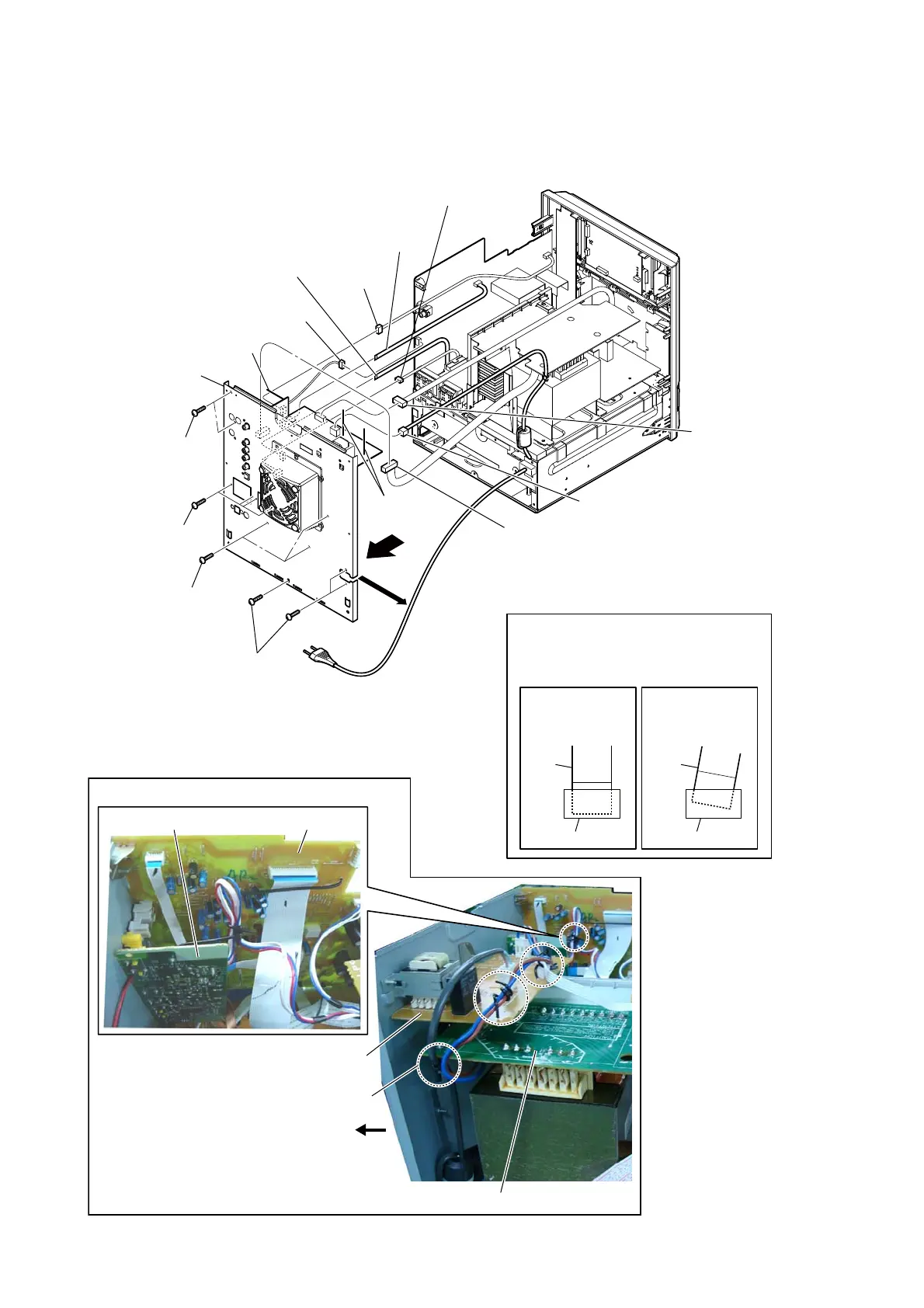

2-22. BACK PANEL BLOCK
6 three screws
(BVTP 3 u8)
6 two screws
(BVTP 3 u8)
7
8
6 three screws
(BVTP 3 u8)
6 four screws
(BVTP 3 u8)
1 Lift up the lead pin.
qd back panel block
1 Lift up two
lead pins.
3 connector
(CN322)
5 connector
(CN1504)
qs connector
(CN1503)
0 connector
(CN602)
4 connector
(CN323: E2, E51, BR/CN324: MX, AR)
MAIN boardVIDEO board
TRANS-SUB board
TRANSFORMER board
2 power cord connector
(CN321)
– Rear view –
9 wire (flat type)
(5 core)
(CN1501)
qa flexible flat cable
(7 core)
(CN1500)
 :ire VeWWiQJ
rear side
Note 2:
Bundle the power cord separately
with other wires.
Note 1:
When you install the flat cable, please
install them correctly.
There is a possibility that this machine
damages when not correctly installing it.
Insert is straight
to the interior.
connector
Insert is incline
flexible
cable
connector
flexible
cable
OK NG
• Abbreviation
AR : Argentina model
BR : Brazilian model
E2 : 120V AC area in E model
E51 : Chilean and Peruvian models
MX : Mexican model
Ver. 1.1
