HCD-PZ1D
16

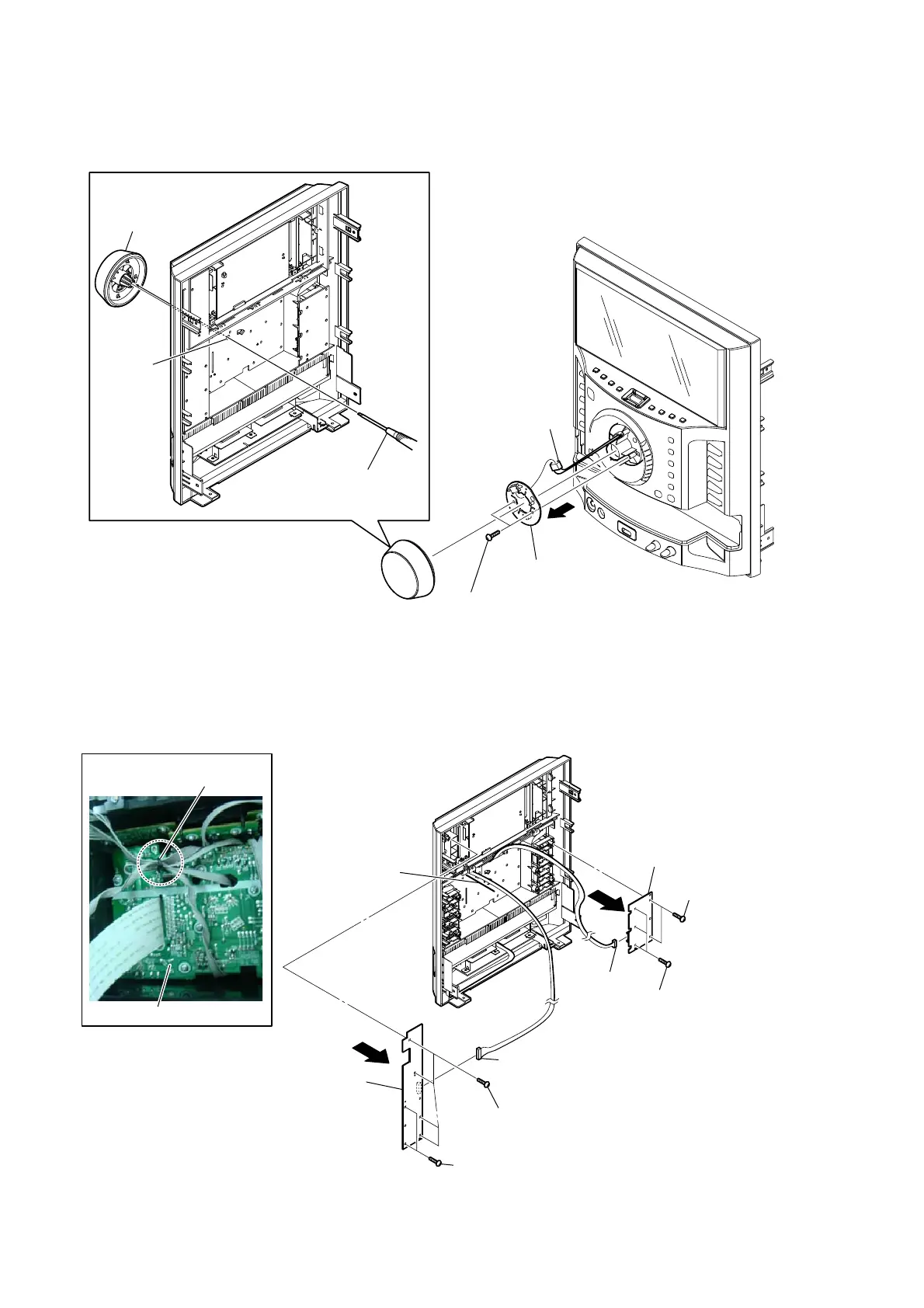

2-12. VOL-LED BOARD
2-13. RIGHT BOARD, LEFT BOARD
Note: Even if RIGHT board is not removed, LEFT board can be removed.
hole
1
Push the knob (VOL) assy
by flat-head screwdriver.
– Inner view –
2 knob (VOL) assy
6 VOL-LED board
3 two screws
(BVTP 2.6 (3CR))
5 connector
(CN701)
4
9 LEFT board
6 two screws
(BVTP 2.6 (3CR))
6 three screws
(BVTP 2.6 (3CR))
5 RIGHT board
4 connector
(CN741)
8 connector
(CN731)
3
7
1 Undo the lead pin.
FRONT board
2 two screws
(BVTP 2.6 (3CR))
2 four screws
(BVTP 2.6 (3CR))
– Inner view –
:LUHVHWWLQJ
lead pin
