HCD-PZ1D
18

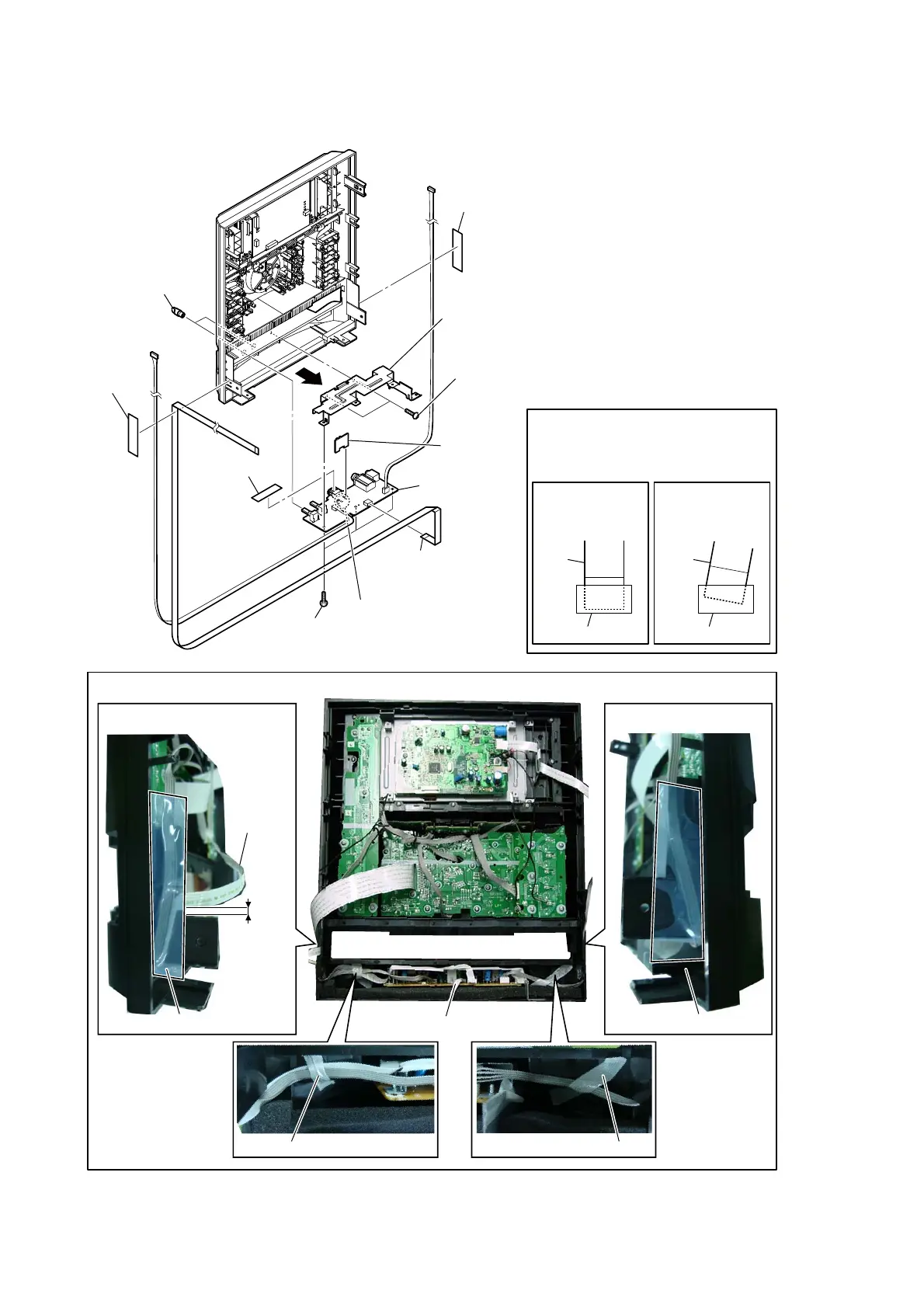

2-16. MIC BOARD
3 two screws
(BVTP 2.6 (3CR))
4
5 three screws
(BVTP 2.6 (3CR))
8 three solders
tape
7 flexible flat cable
(5 core)
(CN781)
qa MIC board
MIC board
1 to 3 mm
flexible flat
cable
unweaved cloth
0 saranet cushion
9 USB-LED
board
6 holder (MIC PWB)
unweaved cloth
tape
1 two knobs (MIC)
2 unweaved
cloth
2 unweaved cloth
– Inner view –
:LUHVHWWLQJ
/HIWVLGH5LJKWVLGH
Insert is straight
to the interior.
connector
Insert is incline
flexible
cable
connector
flexible
cable
OK NG
Note:
When you install the flat cable, please
install them correctly.
There is a possibility that this machine
damages when not correctly installing it.
