HCD-PZ1D
15

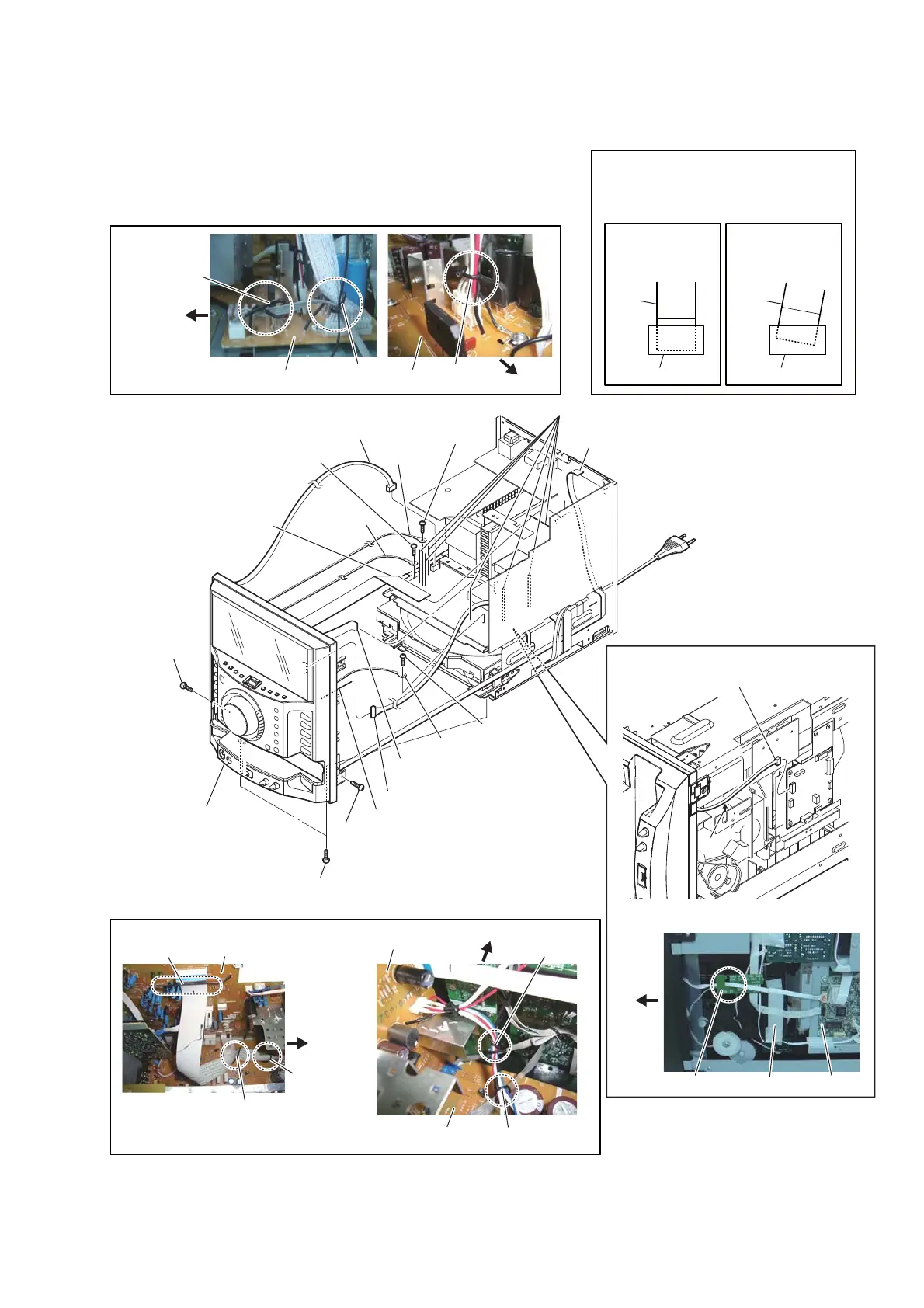

2-11. FRONT PANEL BLOCK
4 wire (flat type) (7 core)
(CN503)
3 connector (CN002)
7 connector (CN1105)
DMB19 board
tapeWIRE HOLDER A board
6 connector
(CN407)
8
qs screw
(BVTP 3 u8)
qs screw
(BVTP 3 u8)
qs three screws
(BVTP 3 u8)
9 screw
(BVTP 2.6 (3CR))
qa lug wire
qa lug wire
qa lug wire
0 screw
(BVTP 3 u8)
0 screw
(BVTP 3 u8)
2 flexible flat cable (21 core)
(CN501)
5 flexible flat cable (5 core)
(CN101)
qd front panel block
1 Lift up seven lead pins.
1 Lift up the lead pin.
AMP board
AMP board
front side
front side
MAIN board
MAIN board
AMP board
rear side
front side
Insert is straight
to the interior.
connector
Insert is incline
flexible
cable
connector
flexible
cable
OK NG
Note:
When you install the flat cable, please
install them correctly.
There is a possibility that this machine
damages when not correctly installing it.
:LUHVHWWLQJ
:LUHVHWWLQJ
:LUHVHWWLQJ
–%RWWRPYLHZ–
front side
lead pin
lead pin
lead pin
lead pin
lead pin
lead pin
lead pin
lead pin
To Next Page
