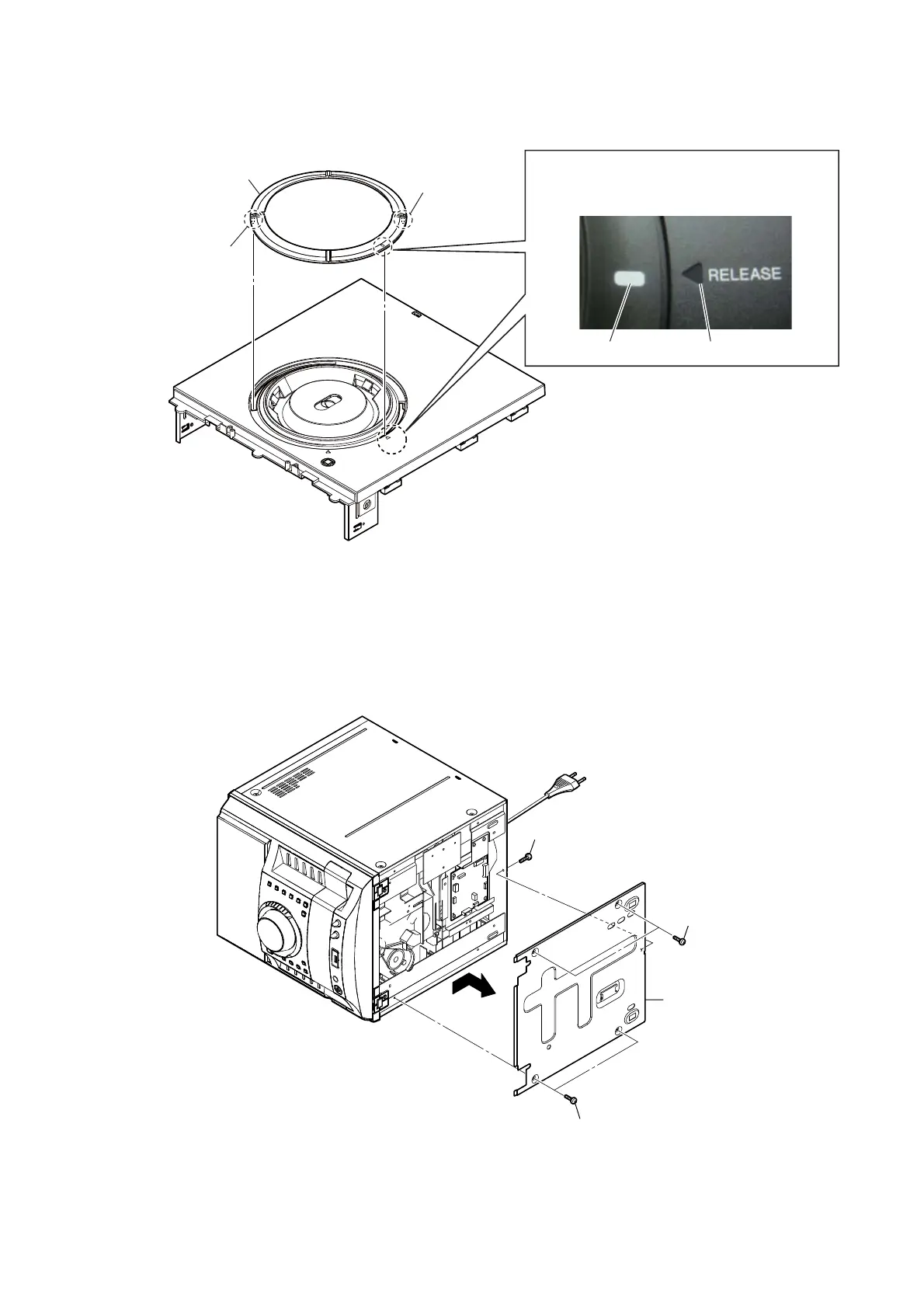

2-9. CHASSIS BLOCK
2-8. RING (OPERATING)
PLUG IN
RELEASE
Note:
When you install the ring (operating), set the position
of mark of the ring (operating) to the position of the
RELEASE mark of the top panel.
1 claw
1 claw
2 ring (operating)
RELEASE mark of top panelmark of ring (operating)
1 screw
(BVTP 3 u8)
1 two screws
(BVTP 3 u8)
1 two screws
(BVTP 3 u8)
3 chassis block
2
– Bottom view –
