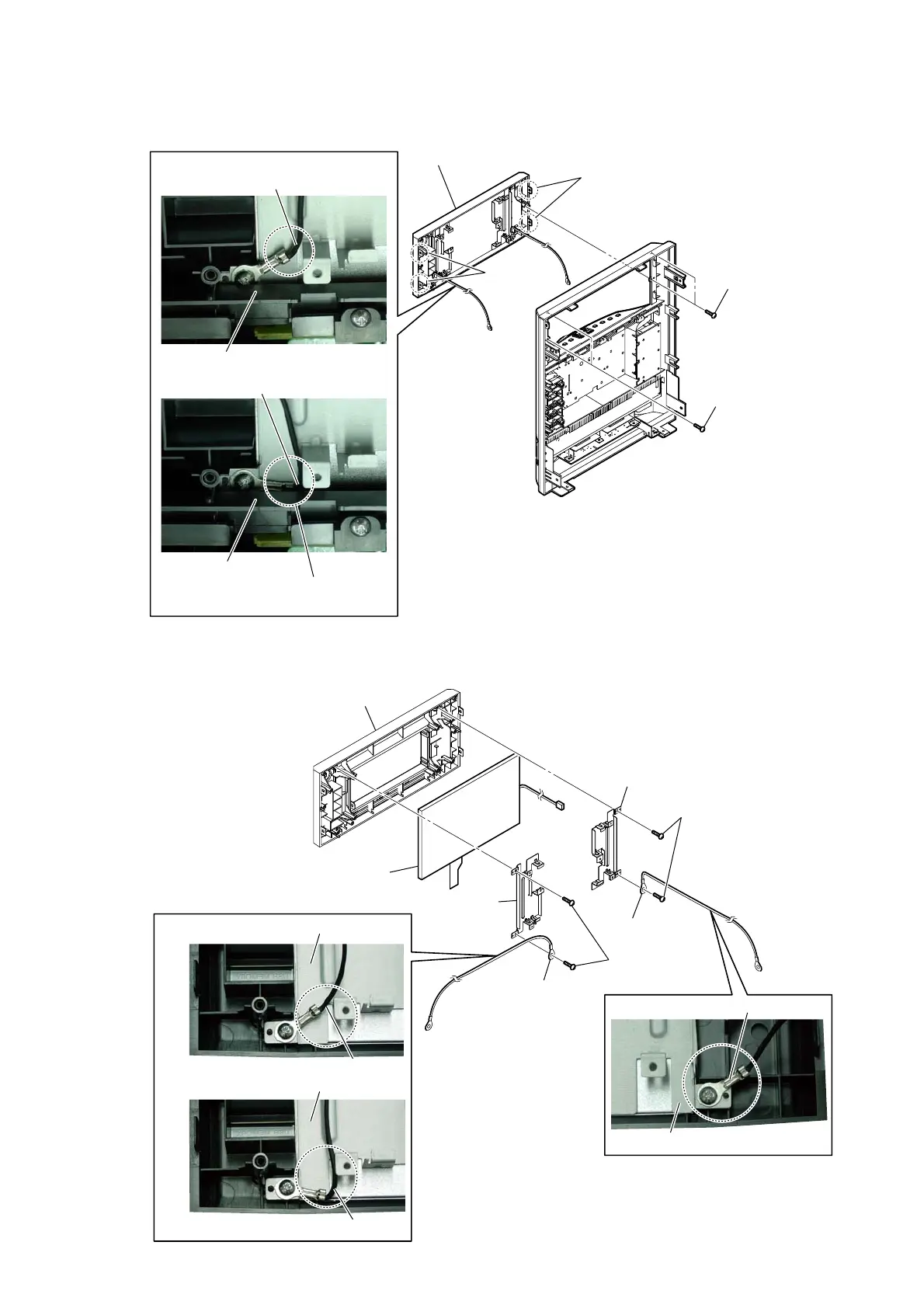

2-17. SUB PANEL LCD BLOCK
2-18. LCD MODULE (LCD101)
3 sub panel LCD block
2 two claws
2 two claws
1 two screws
(BVTP 2.6 (3CR))
1 two screws
(BVTP 2.6 (3CR))
– Inner view –
cursor stage assy
cursor stage assy
 /XJ wire VeWWinJ
NG
OK
lug wire
lug wire
Note:
Do not let the lug wire be inserted
under the cursor stage assy.
2 lug wire
2 lug wire
lug wire
1 two screws
(BVTP 2.6 (3CR))
1 two screws
(BVTP 2.6 (3CR))
5 LCD module
(LCD101)
4 panel LCD sub assy
3 bracket (LCD)
bracket (LCD)
bracket (LCD)
bracket (LCD)
3 bracket (LCD)
– Inner view –
/XJZLUHVHWWLQJ
/XJZLUHVHWWLQJ
NG
OK
lug wire
lug wire
