HCD-PZ1D
21

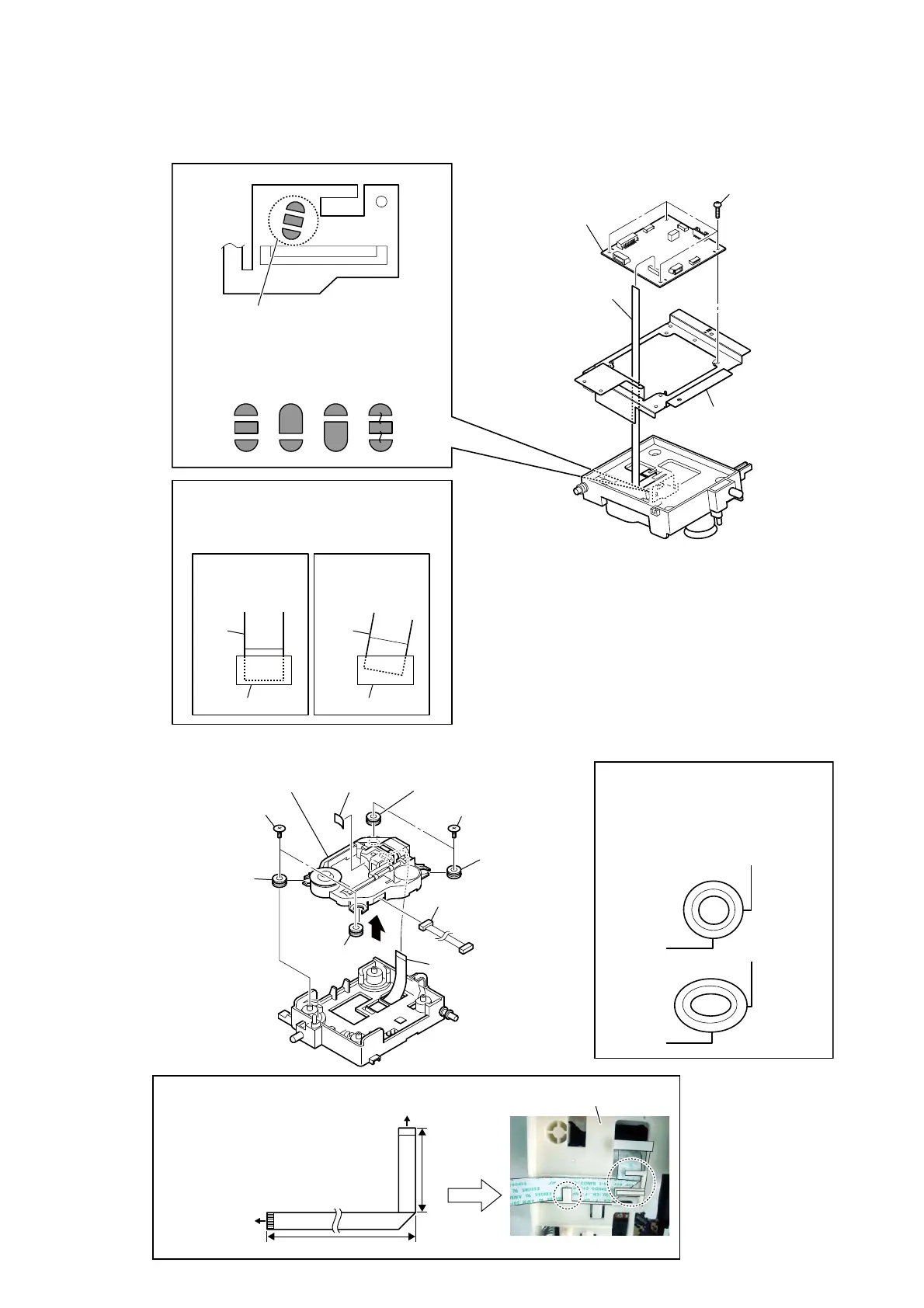

2-21. OPTICAL PICK-UP (KHM-313CAB)
2-20. DMB19 BOARD
Note 1: When disconnection the wire (fl at type) (24 core) of optical pick-up block, solder the short-land.
2 wire (flat type) (24 core)
(CN201)
3 four screws
(BVTP 3 u6)
4 bracket (DMB)
5 DMB19 board
1
Solder the short-land.
Note 2: When assembling the optical pick-up block,
remove the solder of short-land after
connecting the wire (flat type) (24 core).
Note 3:
When you install the flat cable, please
install them correctly.
There is a possibility that this machine
damages when not correctly installing it.
OK NG NG NG
– Bottom side view –
Insert is straight
to the interior.
connector
Insert is incline
flexible
cable
connector
flexible
cable
OK NG
3
2 two insulator screws
6 insulator
60 mm
140 mm
7
optical pick-up
(KHM-313CAB)
to optical pick-up
(KHM-313CAB)
holder (310) assy
to
DMB19 board
(CN201)
6 insulator
6 insulator
6 insulator
2 two insulator screws
4 sheet (BU)
1 wire (flat type) (24 core)
5 connector
$WWHQWLRQZKHQLQVXODWRULVLQVWDOOHG
OK
NG
Note:
When you install the insulator,
please install it as shown in the
figure below.
–7RSYLHZ–
–%RWWRPYLHZ–
:LUHIODWW\SHFRUHVHWWLQJ
