Sony HCD-PZ1D - DRIVER Board, SW Board; SENSOR Board

HCD-PZ1D
26

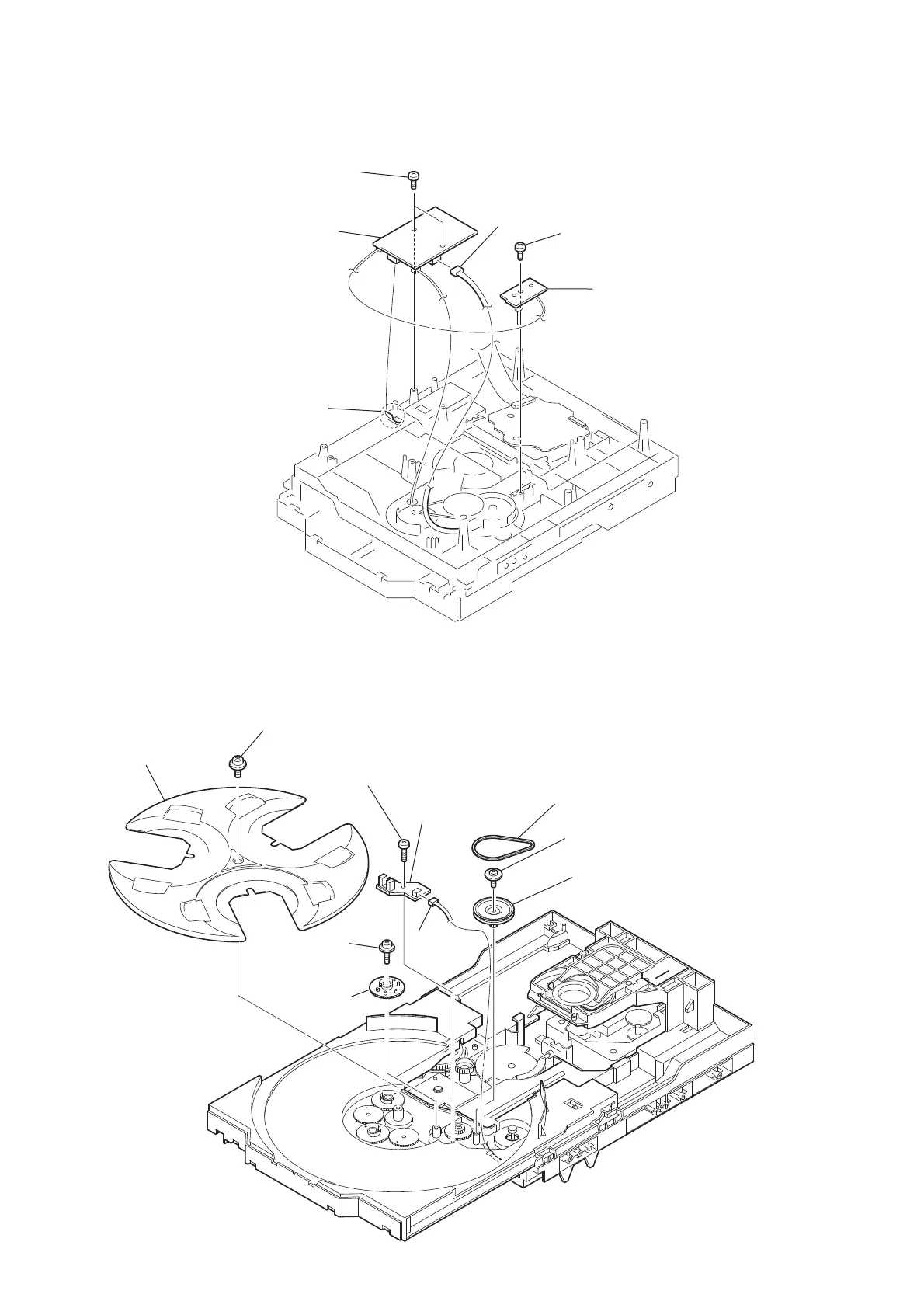

2-27. DRIVER BOARD, SW BOARD
2-28. SENSOR BOARD
3 connector
(CN703)
4 DRIVER board
6 SW board
2 wire (flat type) (5 core)
(CN702)
1 two screws
(BTTP (M2.6))
5 screw
(BTTP (M2.6))
– Bottom view –
2 t ray
3 b elt (table)
5 p ulley (table)
8 s crew
(BTTP (M2.6))
0 SENSOR board
7 g ear (geneva)
9 connector
( CN731)
1 floating screw
(PTPWH M2.6)
6 floating screw
(PTPWH M2.6)
4 floating screw
(PTPWH M2.6)
