HCD-PZ1D

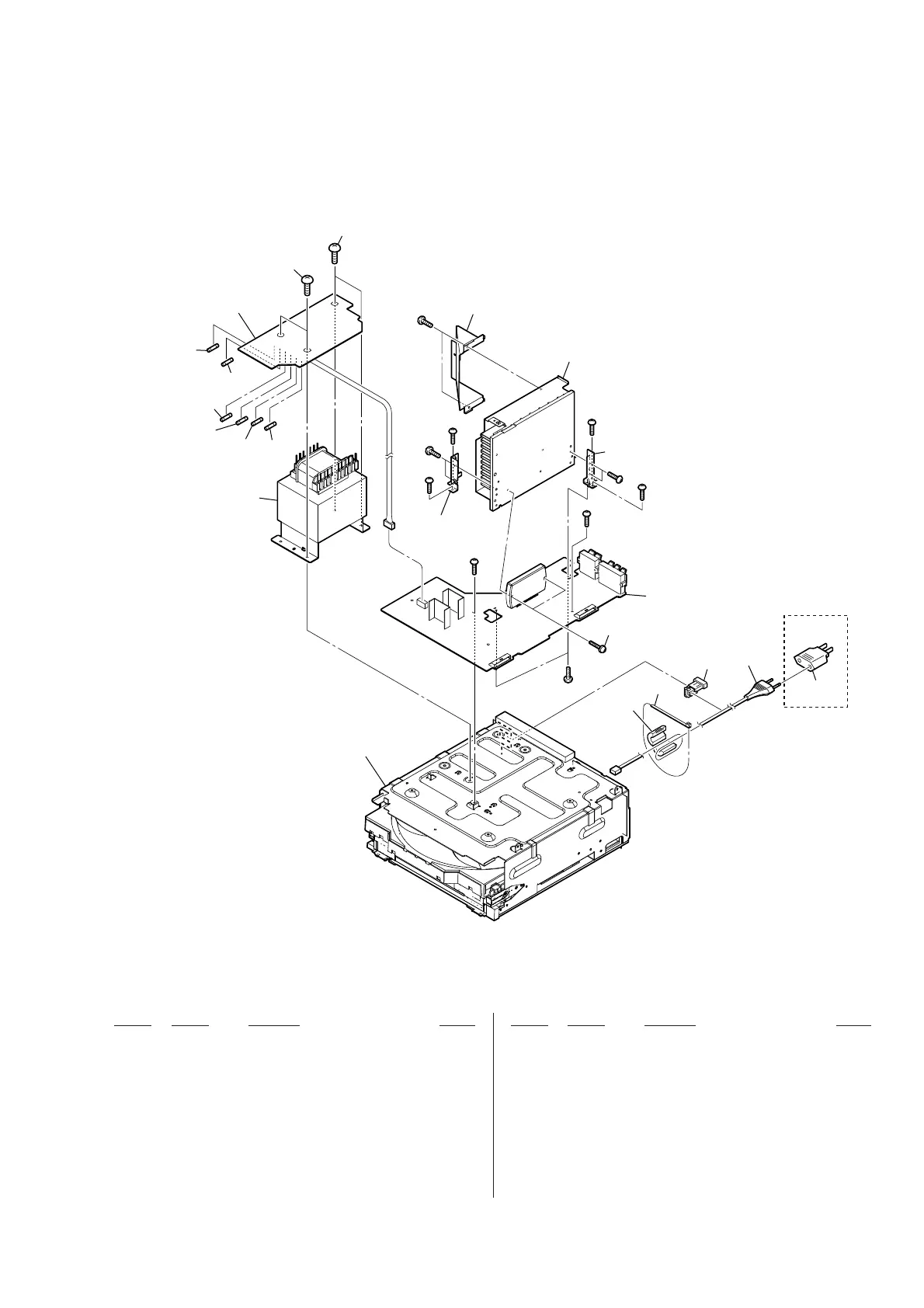

6-6. AMP BOARD SECTION
251 4-900-386-01 SCREW +BV SUMITITE S 4X8 ROUND
252 3-905-609-31 SCREW (TRANSISTOR)
0 253 1-829-387-11 CORD, POWER (AR)
0 253 1-834-966-41 POWER-SUPPLY CORD (E2, E51)
0 253 1-835-080-21 CORD, POWER (MX)
0 253 1-835-706-21 CORD, POWER-SUPPLY (BR)
0 254 3-703-244-02 BUSHING (2104), CORD (EXCEPT MX)
0*254 3-703-571-12 BUSHING (S) (4516), CORD (MX)
255 3-655-653-11 BAND (TAITON), BINDING
256 1-457-369-12 CORE, FERRITE
0 257 1-569-008-33 ADAPTOR, CONVERSION (E2, E51)
0 F301 1-532-465-33 FUSE (T3.15AL/250V)
0 F302 1-532-505-33 FUSE (T5AL/250V)
0 F303 1-576-332-33 FUSE (T10AL/250V)
0 F304 1-576-332-33 FUSE (T10AL/250V)
0 F305 1-576-332-33 FUSE (T10AL/250V)
0 F306 1-576-332-33 FUSE (T10AL/250V)
0 PT301 1-445-681-11 TRANSFORMER, POWER
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
252
256
251
not supplied
not supplied
#1
#1
#1
#1
#1
#1
#1
PT301
F301
F302
F304
F305
F306
F303
not supplied
(TRANSFORMER board)
not supplied
(AMP board)
251
253
257
255
254
not supplied
not supplied
#1
#1
#1
(E2, E51)
sub chassis section
Ver. 1.1
