HCD-PZ1D
SECTION 6
EXPLODED VIEWS
1 4-124-013-41 CASE (SIDE L)
2 4-124-014-11 CASE (SIDE R)
3 3-704-366-31 SCREW (CASE) (M3X6)
4 3-285-881-21 COVER (FAN)
5 A-1832-088-A ADAPTOR ASSY, PS (Intelligent Pantilter adaptor)
0 FAN901 1-787-631-11 FAN, DC
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-647-71 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color
• Abbreviation
AR : Argentina model
BR : Brazilian model
E2 : 120V AC area in E model
E51 : Chilean and Peruvian models
MX : Mexican model

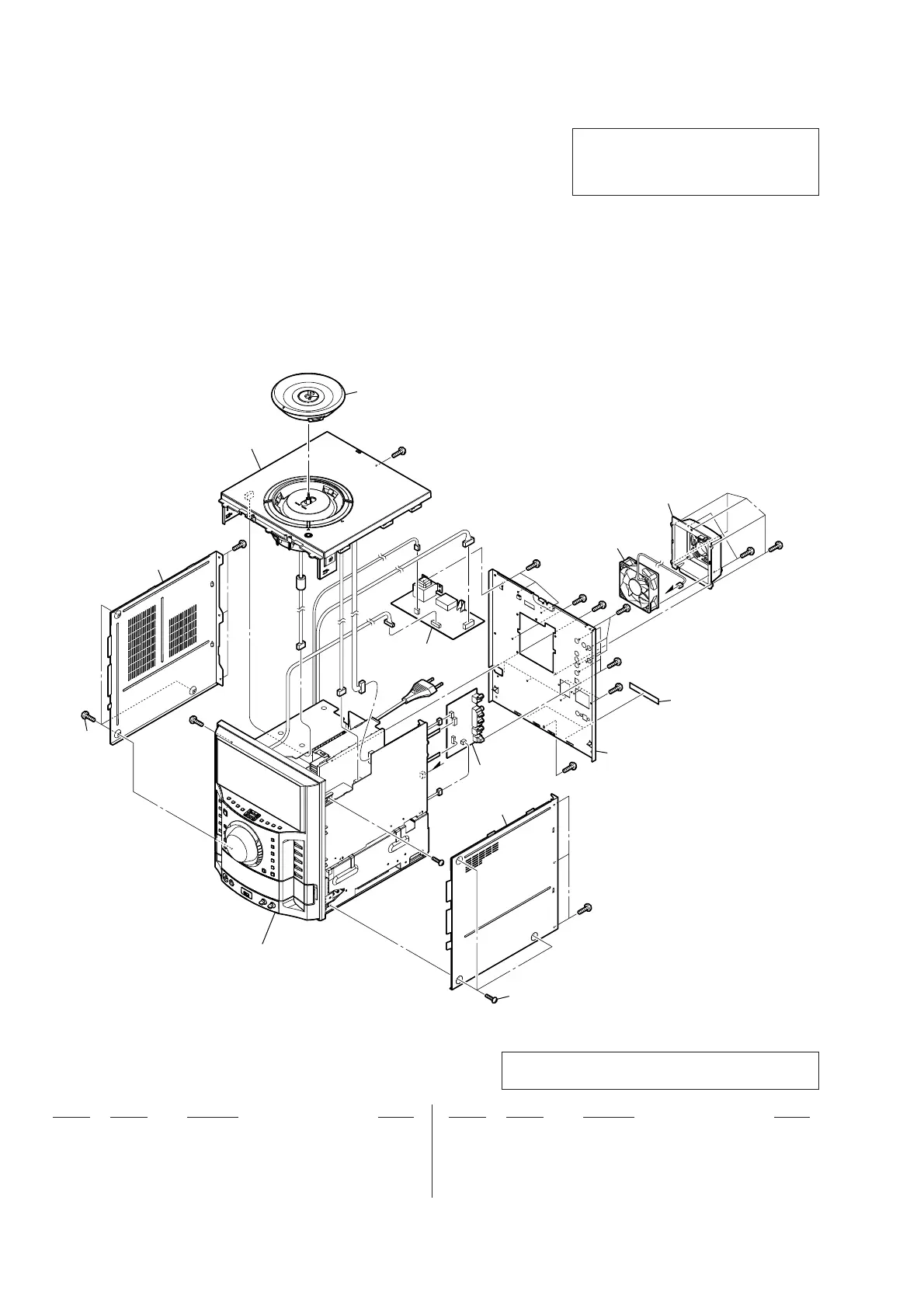

6-1. OVERALL SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Note: If the wire (fl at type) was replaced, fold it some as the
wire (fl at type) before replacement.
FAN901
#2
#1
#1
#1
not supplied
(TRANS-SUB board)
#1
#1
#1
#1
#1
#1
4
5
3
1
2
not supplied
not supplied
not supplied
(VIDEO board)
#1
#1
#1
A
A
3
#1
MAIN board section
top panel section
Ver. 1.1
