HCD-PZ1D

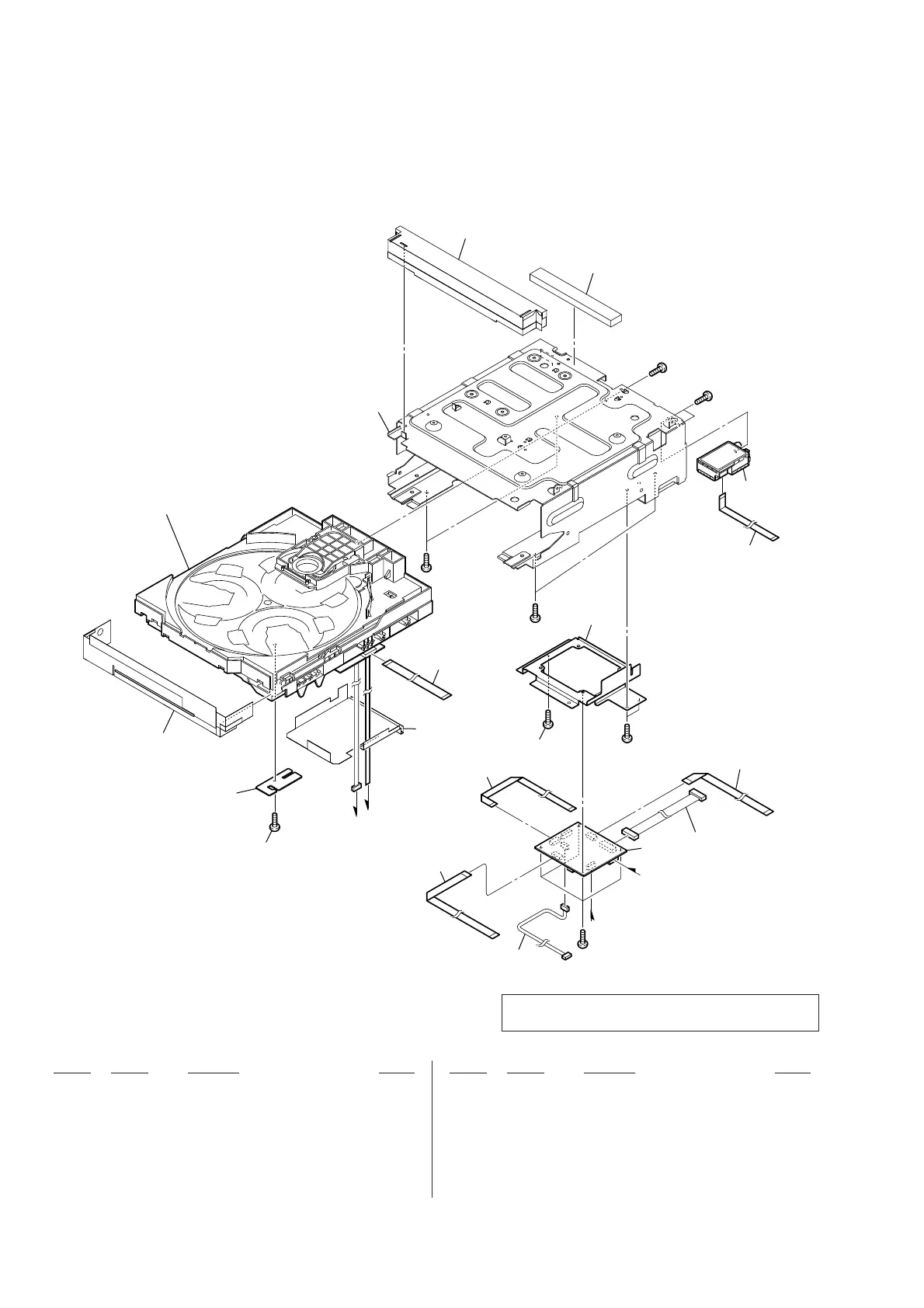

6-7. SUB CHASSIS SECTION
301 A-1814-020-A DMB19 BOARD, COMPLETE (for SERVICE)
(E2, E51, AR)
301 A-1816-417-A DMB19 BOARD, COMPLETE (for SERVICE) (MX)
301 A-1816-427-A DMB19 BOARD, COMPLETE (for SERVICE) (BR)
302 3-087-053-01 +BVTP2.6 (3CR)
303 1-828-973-11 WIRE (FLAT TYPE) (13 CORE)
304 1-832-816-21 CABLE, FLEXIBLE FLAT (9 CORE)
305 1-830-459-51 WIRE (FLAT TYPE) (7 CORE)
306 1-837-125-11 WIRE, FLAT TYPE (9 CORE)
307 1-838-277-21 CABLE, FLEXIBLE FLAT (7 CORE)
TM901 1-693-778-11 TUNER (FM/AM) (EXCEPT BR)
TM901 1-693-779-11 TUNER (FM/AM) (BR)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If the wire (fl at type) was replaced, fold it some as the
wire (fl at type) before replacement.
304
not supplied
(WIRE HOLDER A board)
not supplied
#1
TM901
mechanism deck section-1
(CDM74HFVX-DVBU101)
303
302
301
305
306
307
not supplied
not supplied
not supplied
not supplied
not supplied
G
G
H
H
not supplied
not supplied
#1
#1
#1
#1
#3
302
