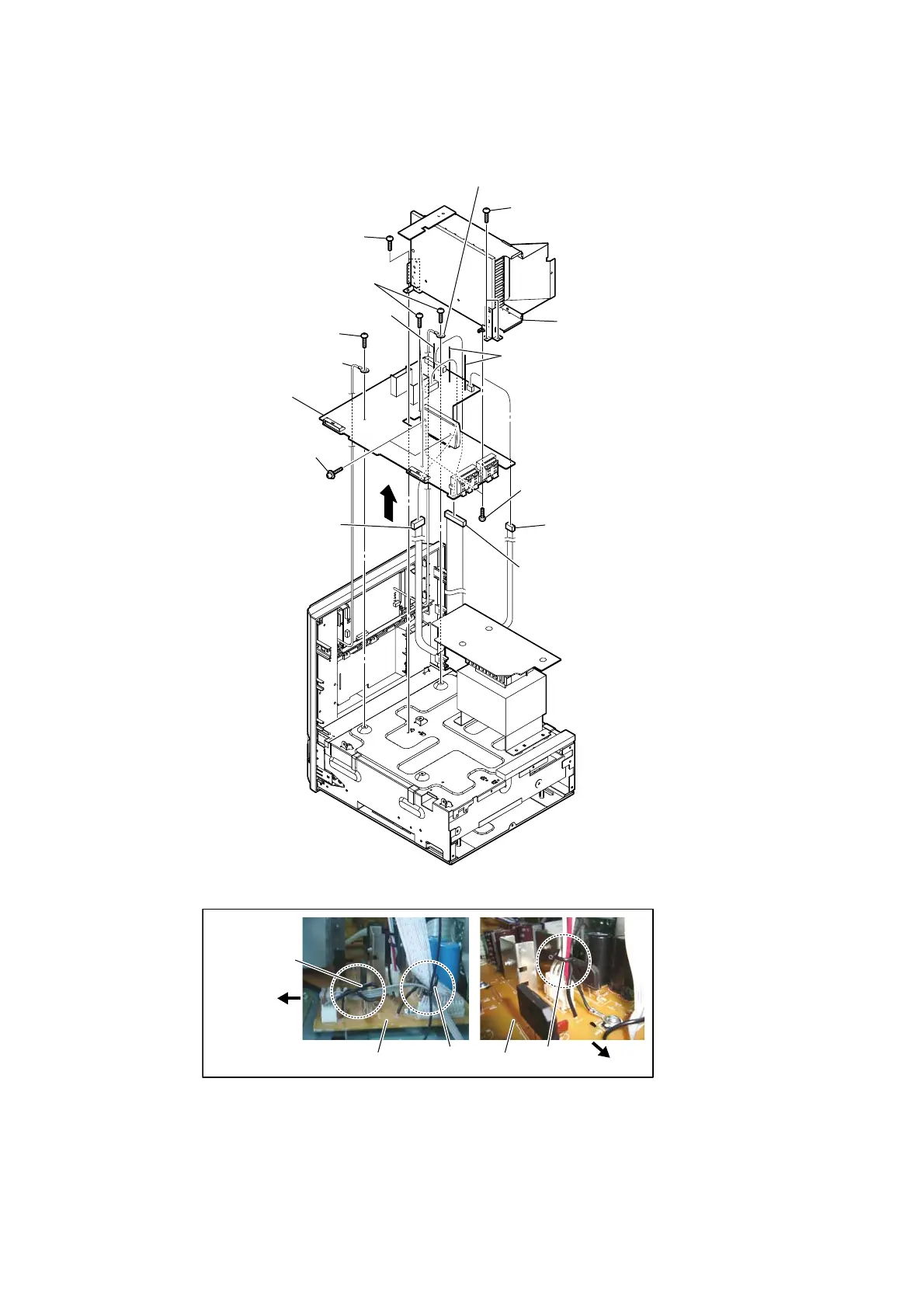

2-24. AMP BOARD
2 connector
(CN402)
3 connector
(CN407)
4 connector
(CN401)
1 Lift up two lead pins.
1 Lift up the lead pin.
5 screw (BVTP 3 u8)
6 lug wire
6 lug wire
5 two screws
(BVTP 3 u8)
9 two screws
(BVTP 3 u8)
5 two screws
(BVTP 3 u8)
5 three screws
(BVTP 3 u8)
qa AMP board
8 two screws
(transistor)
0 heat sink block
7
– Rear view –
AMP board
AMP board
front side
rear side
 :ire VeWWiQJ
lead pin
lead pin
lead pin
