HCD-PZ1D

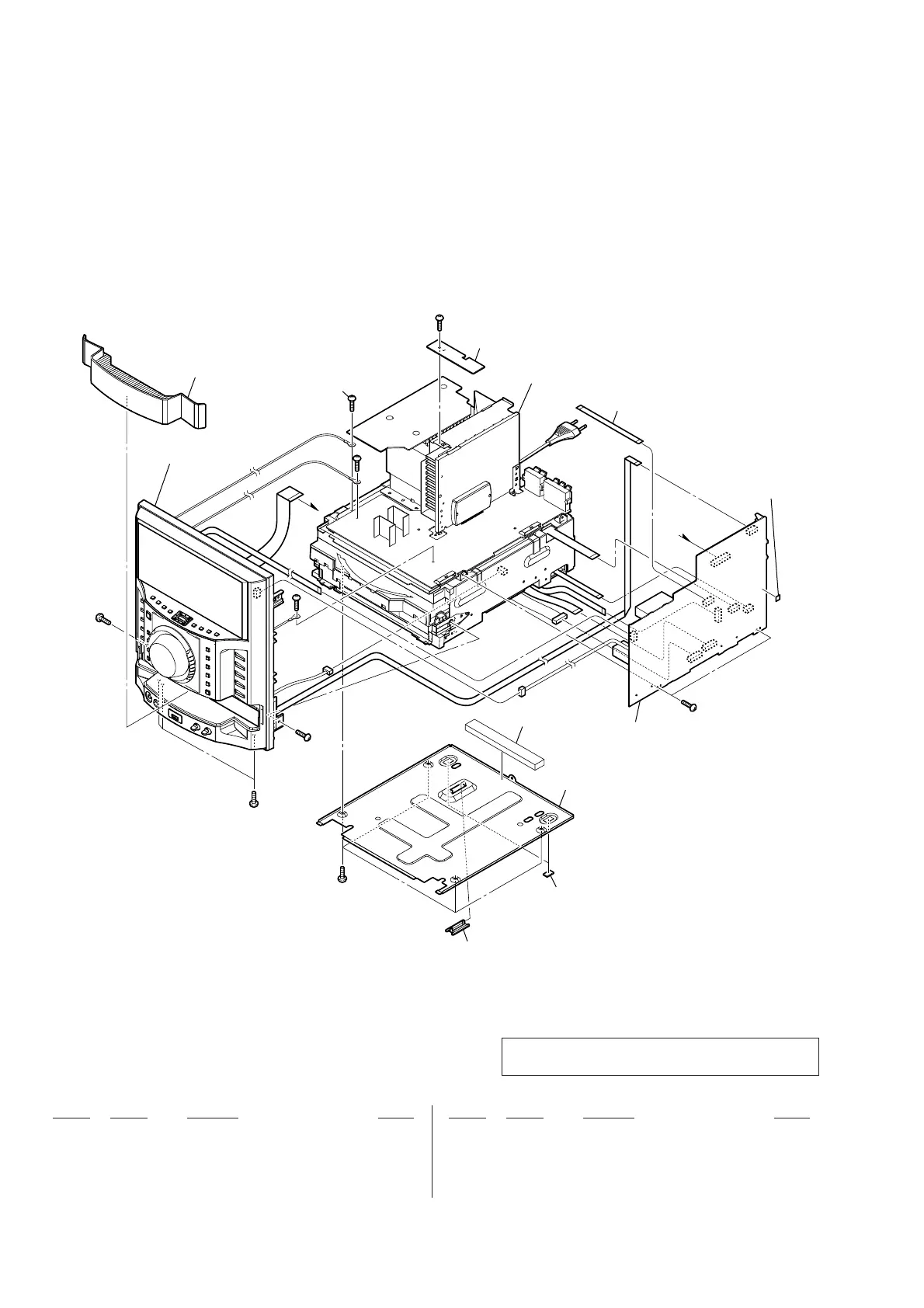

6-3. MAIN BOARD SECTION
101 4-165-461-71 PANEL LOADING
102 3-087-053-01 +BVTP2.6 (3CR)
103 1-828-935-51 WIRE (FLAT TYPE) (5 CORE)
104 A-1814-051-A MAIN BOARD, COMPLETE (E2)
104 A-1814-071-A MAIN BOARD, COMPLETE (E51, AR)
104 A-1814-073-A MAIN BOARD, COMPLETE (MX)
104 A-1814-076-A MAIN BOARD, COMPLETE (BR)
105 4-225-252-01 CUSHION (FOOT)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If the wire (fl at type) was replaced, fold it some as the
wire (fl at type) before replacement.
105
not supplied
(WIRE HOLDER B board)
103
102
101
104
not supplied
not supplied
not supplied
not supplied
#1
#1
#1
#1
#1
E
E
#1
#1
#1
front panel section
AMP board section
