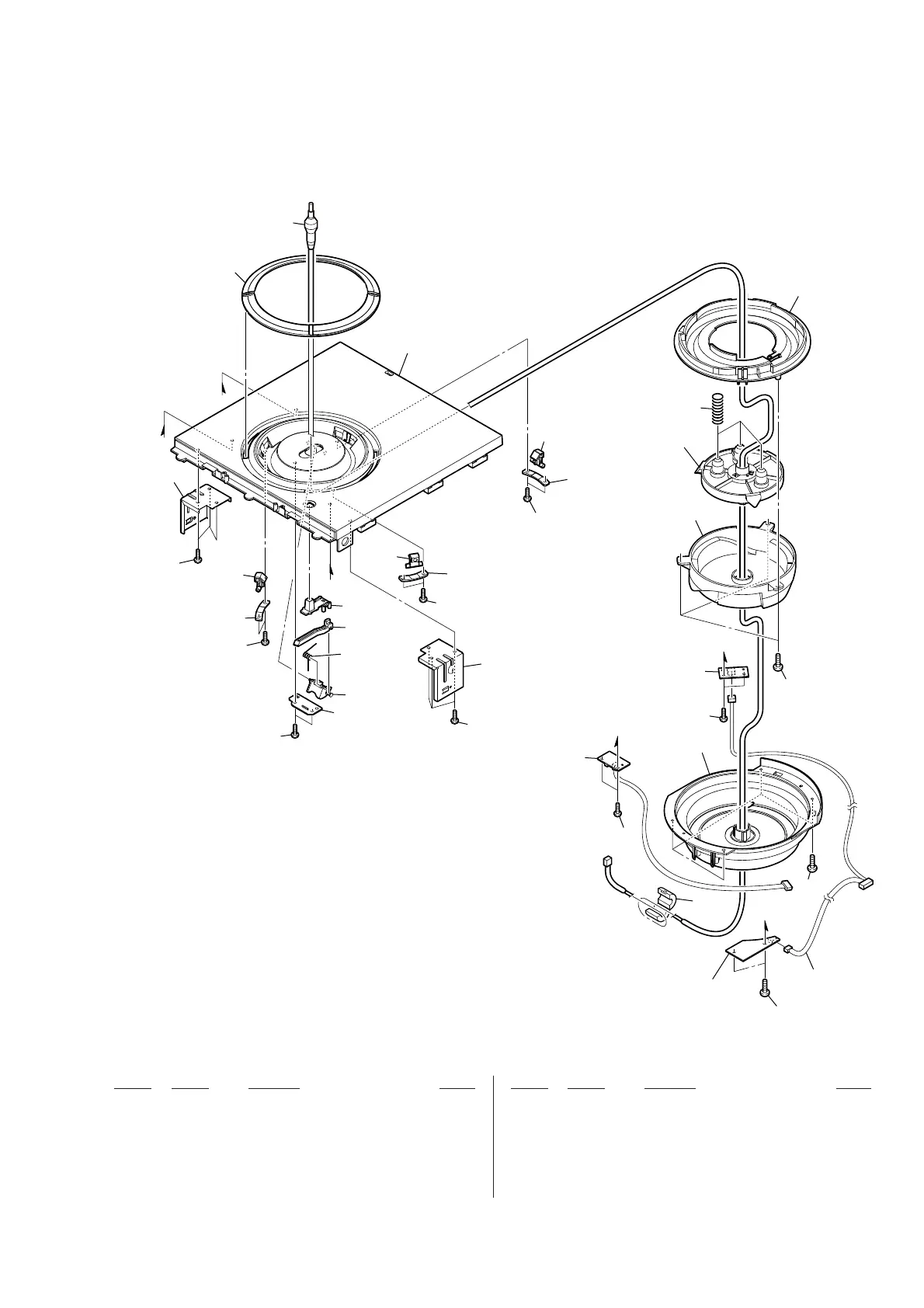

6-2. TOP PANEL SECTION
51 4-274-892-01 RING, (OPERATING)
52 4-274-886-01 PANEL, TOP
53 4-274-899-01 CATCHER (LOCK)
54 3-087-053-01 +BVTP2.6 (3CR)
55 X-2581-935-1 BUTTON (PS) ASSY (Party-shot SYNC)
56 4-274-897-01 ROD (LOCK)
57 4-274-901-01 SPRING (A), TORSION
58 4-274-894-01 SHUTTER (A)
59 4-274-893-01 RING (SHUTTER), CAM
60 4-274-904-01 SPRING, COMPRESSION
61 1-400-932-11 FILTER, CLAMP
J1 1-839-105-11 CORD (WITH PLUG) (POWER PLUG)
