Signal Output Settings
Chapter 18 Switcher Setup

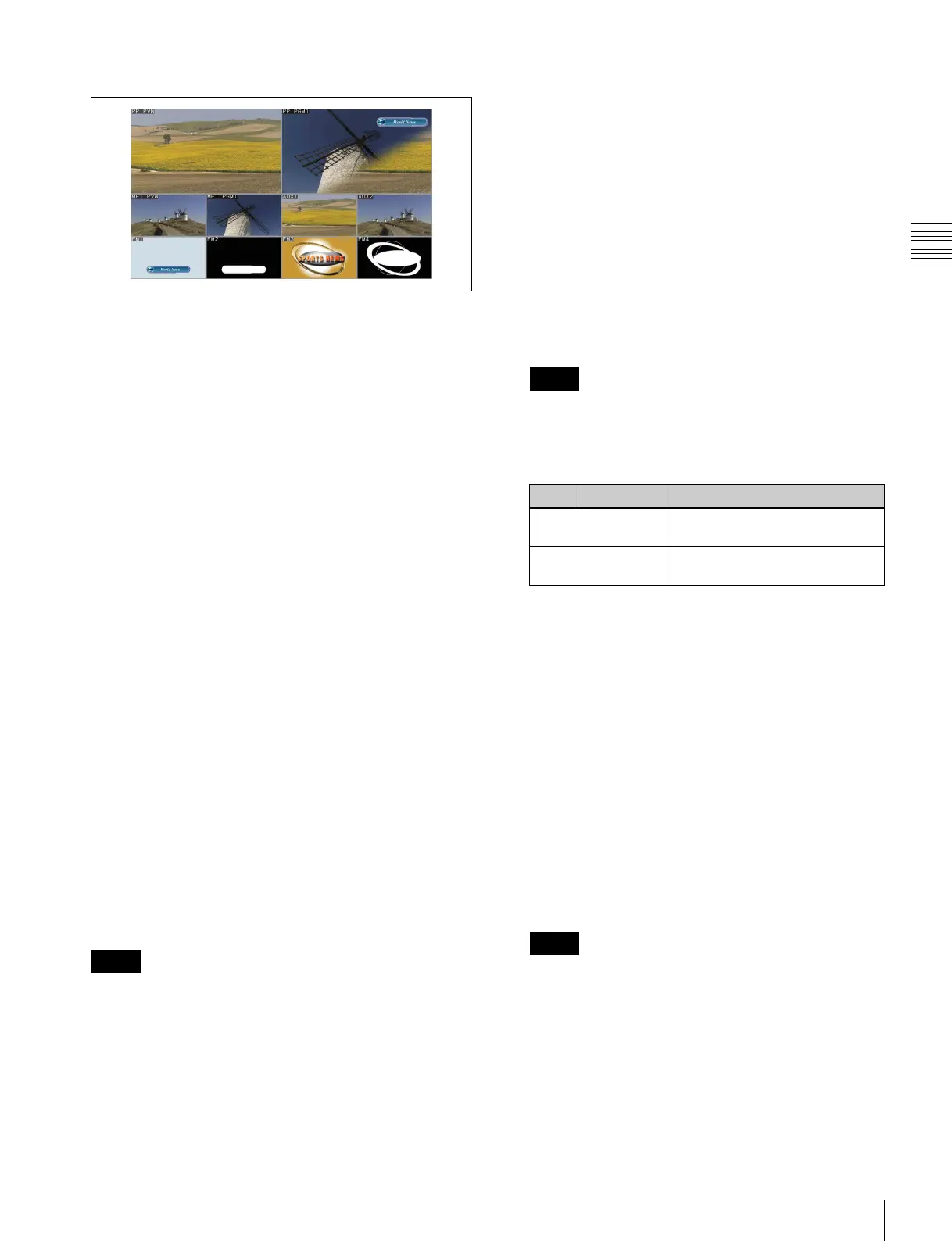

Example of 10-split screen:
In the following description, a split window is referred to
as a “sub-screen.”
1
In the Engineering Setup >Switcher >Output menu
(7333), press [Multi Viewer].
The Multi Viewer menu (7333.9) appears.
2
In the <Multi Viewer> group, press [1] or [2] to select
the setting target.
The status area shows a list of outputs assigned to the
sub-screens.
3
In the <Split Mode> group, select the number of split
windows.
Split 4: Splits the screen into 4 windows.
Split 10: Splits the screen into 10 windows.
4
To add borders to the sub-screens, press [Border
Enable] to turn it on.
Tally colors
Tallies are shown on the multi viewer screen. In this way,
you can see, for example, which input signals are used in
the on-air video.
Borders appear in the following two colors.
Red border: Video with a red tally
Green border: Video with a green tally
For details about tally settings, 1 “Setting the On-Air
Tally” (p. 235) and 1 “Making New Tally Generation
Settings” (p. 258).
If “Independent” is set in the Engineering Setup >Panel
>Operation >Button Tally menu (7326.9), then tallies are
not shown on the multi viewer.
Specifying whether to show or hide the
sub-screen names
1
In the Engineering Setup >Switcher >Output >Multi
Viewer menu (7333.9), select the target sub-screens.
2
Press [Name Enable] to select either of the following.
Enable: Shows the subs-screen name.
Disable: Hides the sub-screen name.
To make the setting for all of 10 sub-screens in a single
operation, turn [All Name Enable] on or off.
3
To set the name display position, adjust the following
parameters.
If you change any of the following parameter values,
the name display position will change on all sub-
screens. You cannot adjust the name display position
for each sub-screen.
Assigning signals to the sub-screens
1
Open the Engineering Setup >Switcher >Output
>Multi Viewer >Source/Output Assign menu
(7333.10).
2
Select the target sub-screens in the list on the left.
3
If assigning an input signal to a sub-screen, press
[Source] in the <Source/Output Select> group.
If assigning an output signal, press [Output].
“Primary33” to “Primary48” are disabled, even if
selected.
4
Select the signal you want to assign from the list on the
right.
If [Output] is selected in step 3, the following signals
cannot be used.
• Signals output from connectors assigned to Out 1 to
12
• Multi Viewer 1 and 2
• FC Output 1 and 2
5
Press [Set].
Notes
Notes
No. Parameter Adjustment
2 Name
Position H
Horizontal position
3 Name
Position V
Vertical position
Notes
