DME Wipe Settings for Independent Key Transitions
Chapter 6 DME Wipes
To set the timing of transition completion
When the execution mode for a DME wipe crop transition
is set to [Last 5%], you can select the timing of transition
completion from 70% ([Last 30%]), 95% ([Last 5%]), and
100% ([Off]).
1 Open the M/E-1 >DME Wipe >Modify menu (1165).
2 In the <Crop Mode> group, press [Remove From
Begin].
The Remove From Begin menu (1165.1) appears.
3 In the <Release Transition> group, select the timing of
transition completion.
Last 30%: The transition completes at the end of 70%
of the transition execution time. The transition has
a dead zone from 70% to 95% of the transition
time.
Last 5%: The transition completes at the end of 95%
of the transition execution time. When the
transition completes, the cropping is removed
during the last 5% (enlarges).
Off: The transition completes at the end of the
transition execution time. During the last 5% of
the transition, the transition and cropping removal
proceed together.
DME Wipe Modify Clear
Press [Default Recall] at the lower left of the menu screen,
turning it on, then press the [DME Wipe] VF6 button to
return the DME wipe settings to their initial status.
For details about initial status, 1 “Saving User-Defined
Settings” (p. 214).
DME Wipe Settings for
Independent Key
Transitions
You can set independent key transition DME wipes in the
DME Wipe Adjust menu for each keyer.
This section describes an example using key 1 on the M/E-
1 bank.
Open the M/E-1 >Key1 >Transition menu (1116), select
[DME Wipe Adjust], and display the Key1 DME Wipe
Adjust menu (1116.3).
For an overview of independent key transitions,
1 “Independent Key Transitions” (p. 57).
DME wipe patterns that can be used in
independent key transitions
• Slide (pattern numbers: 7001 to 7008)
• Squeeze (pattern numbers: 7021 to 7031)
• Frame in-out (pattern numbers: 7201 to 7208, 7221 to
7224)

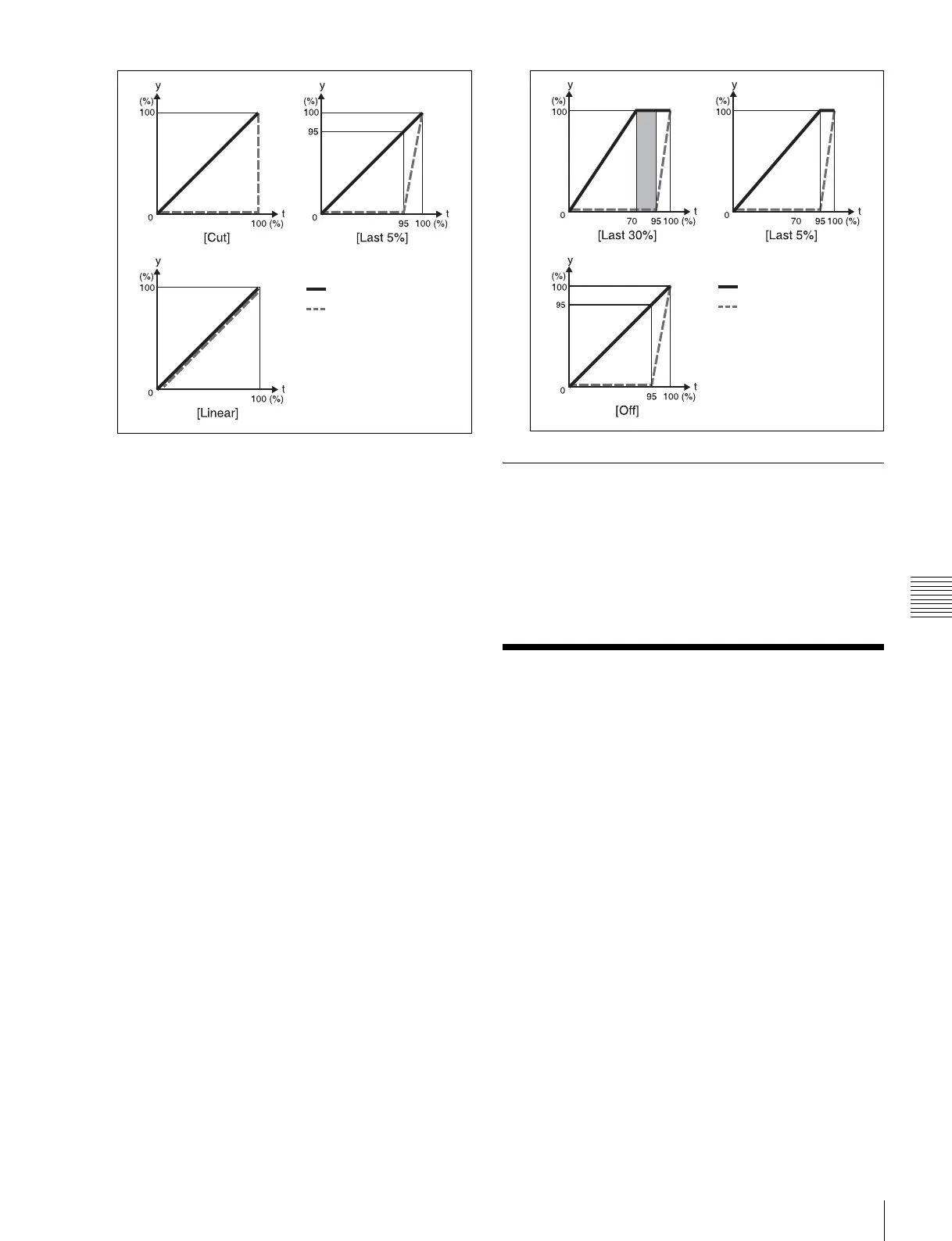

t: Transition execution
time
y: Change in transition
and cropping amount
Transitions
Cropping
t: Transition execution time
y: Change in transition and
cropping amount
“Dead Zone”
Transitions
Cropping
