Connecting 5.1-channel speaker system

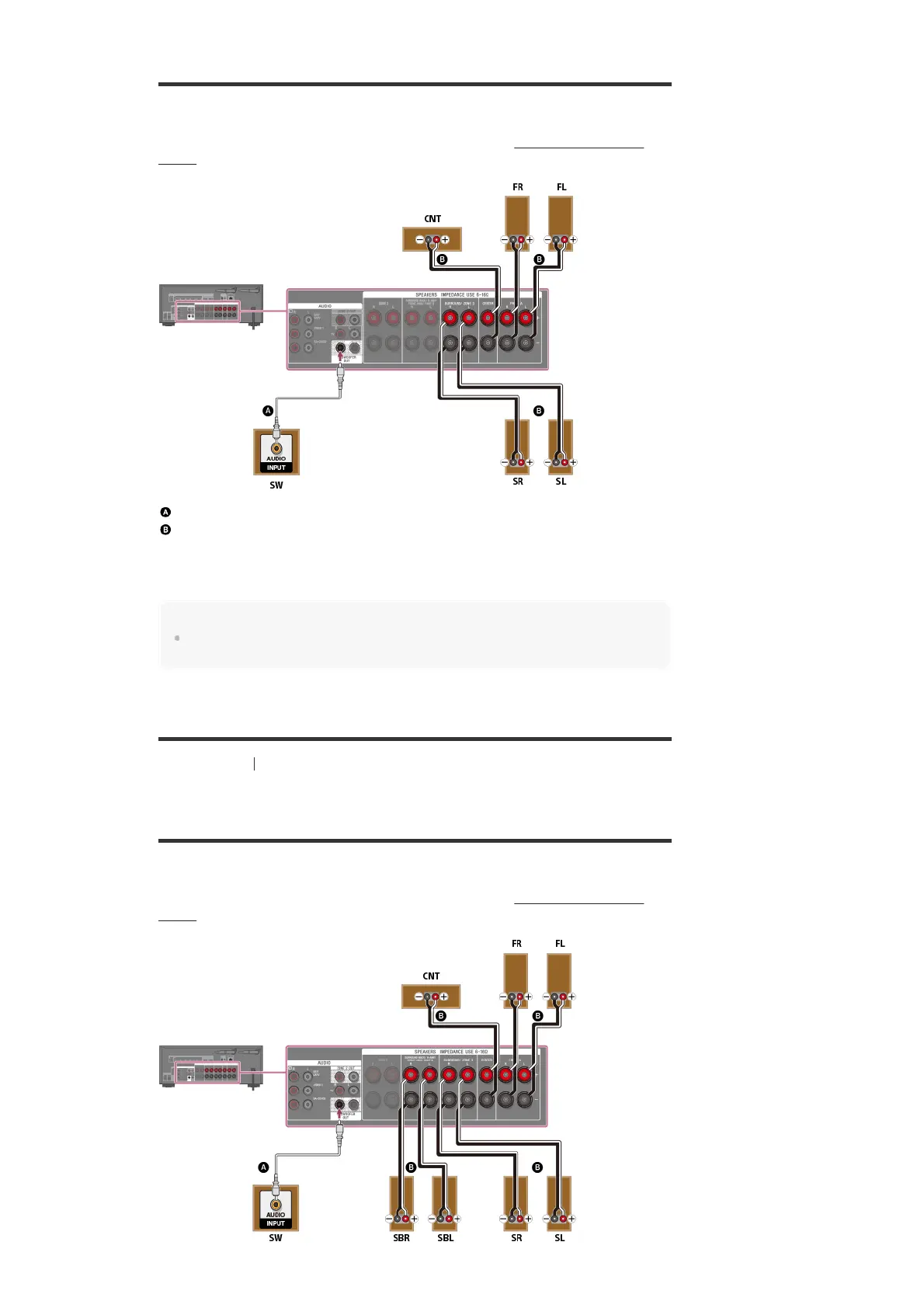

Connect each speaker as illustrated below.
Before connecting cables, be sure to disconnect the AC power cord (mains lead).
For details on how to connect speaker cables to the receiver, see “How to connect speaker
cables.”
Monaural audio cable (not supplied)
Speaker cable (not supplied)
After you have made the connections, set [Surround Speaker Assign] to [Off] in the [Speaker
Settings] menu.
Note
After you have installed and connected your speakers, be sure to select the speaker pattern you
want using [Speaker Pattern] in the [Speaker Settings] menu.
[18] Preparation 2. Connecting speakers
Connecting 7.1-channel speaker system using
surround back speakers
Connect each speaker as illustrated below.
Before connecting cables, be sure to disconnect the AC power cord (mains lead).
For details on how to connect speaker cables to the receiver, see “How to connect speaker
cables.”

Sony STR-DN1070 Specifications

General

Receiver type	Surround
Audio output channels	7.2 channels
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	6
Audio (L/R) in	4
Digital audio coaxial in	1
Number of HDMI outputs	2
Connectivity technology	Wired & Wireless
Speakers connectivity type	Banana connector
Ethernet LAN	Yes
Bluetooth version	3.0+HS
Supported radio bands	AM, FM
Preset stations quantity	30
Optical drive included	No
Display	-
Product color	Black
Audio decoders	DTS, DTS 96/24, DTS-ES, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), DTS-HD, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Dual Mono, Dolby Pro Logic, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby TrueHD
Power consumption (standby)	0.4 W
Audio formats supported	AAC, AC3, AIFF, ALAC, FLAC, HE-AAC, LPCM, M4A, MP3, WAV, WMA

Weight and Dimensions

Depth	329.438 mm
Width	430.022 mm
Height	171.958 mm
Weight	10500.663 g
