HDMI cable (not supplied)
Super Audio CD player, CD player
Blu-ray Disc™ player, DVD player
DVD recorder
Game console such as PlayStation 4
Cable box or satellite box
Note
Sony recommends that you use an HDMI-authorized cable or HDMI cable made by Sony. Be sure to
use a High Speed HDMI Cable with Ethernet. Premium High Speed HDMI Cable with Ethernet that
supports 18 Gbps is required for 4K/60p 4:4:4, 4:2:2, and 4K/60p 4:2:0 10 bit, etc.
Hint
This HDMI connection is an example. You can connect each HDMI device to any HDMI input,
including the HDMI input on the front panel.
The BD/DVD and SA-CD/CD inputs have better sound quality. When you need a higher sound
quality, connect your device to these jacks and select them as the input.
The image quality depends on the connecting jack. We recommend that you connect your devices
via an HDMI connection if they have HDMI jacks.
[29] Preparation 4. Connecting audio-visual devices and the antennas (aerials)
Connecting devices with jacks other than HDMI jacks

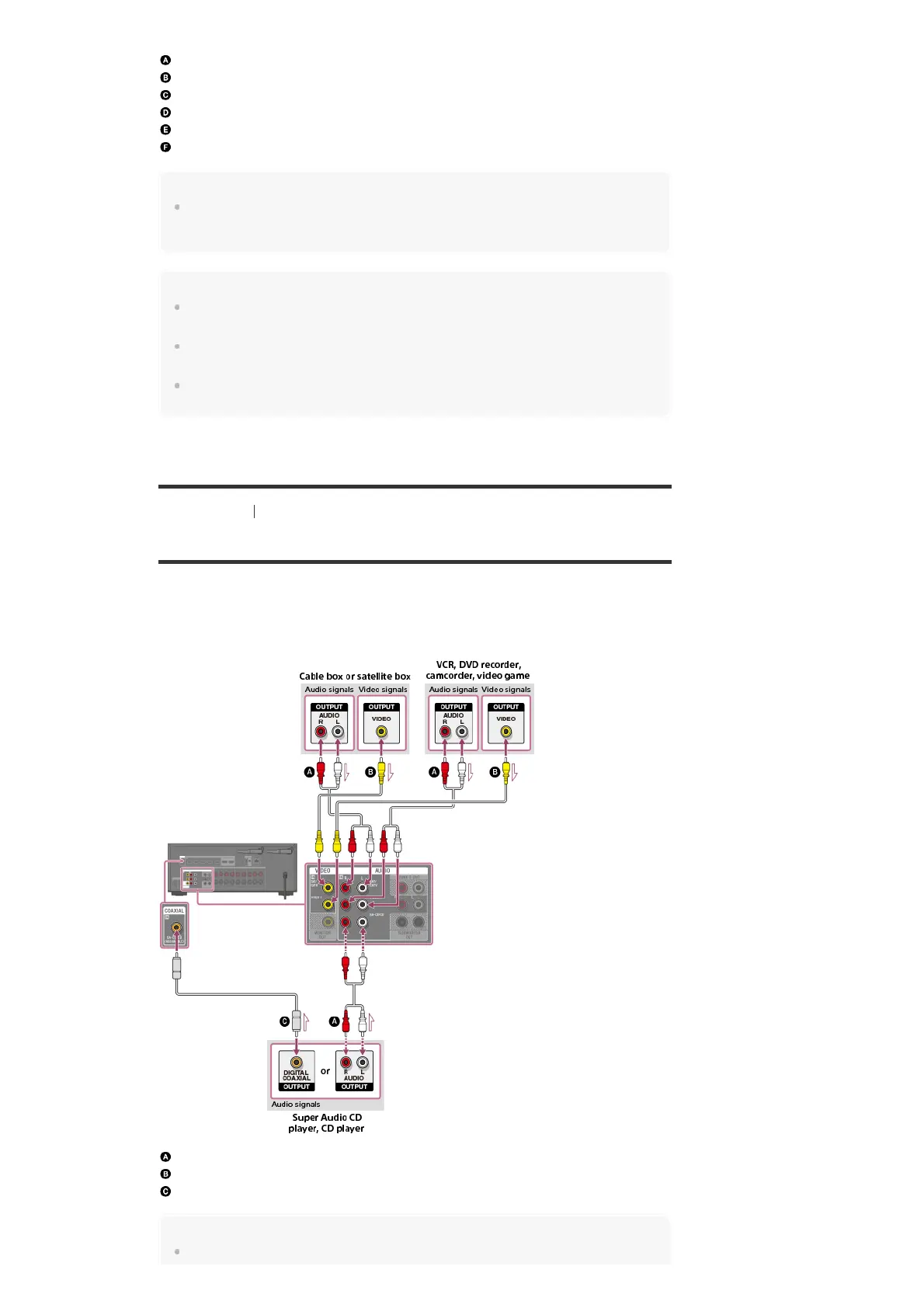

Connect devices to the receiver as illustrated below.
Solid lines show recommended connections and the dashed lines show alternative connections.
It is not necessary to connect all the cables.
Before connecting cables, be sure to disconnect the AC power cord (mains lead).
Audio cable (not supplied)
Video cable (not supplied)
Coaxial digital cable (not supplied)
Hint
You can rename each input so that the name can be displayed on the display panel of the receiver.
